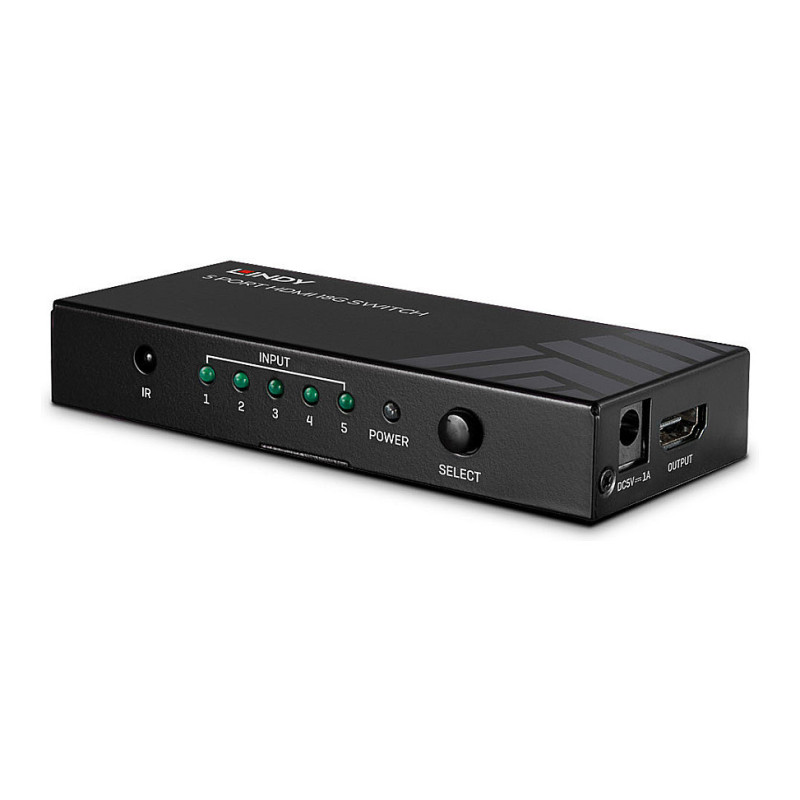

Lindy 38233 video switch

Lindy 5 Port HDMI 18G Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Bandwidth: 18 Gbit/s. Certification: CE, FCC, REACH & California Proposition 65. Width: 123 mm, Depth: 51 mm, Height: 20 mm. Package width: 180 mm, Package depth: 135 mm, Package height: 80 mm

Switches between 5 HDMI source devices when connected to a single display
Supports 18G resolutions up to 4K@60Hz, with additional support for HDR

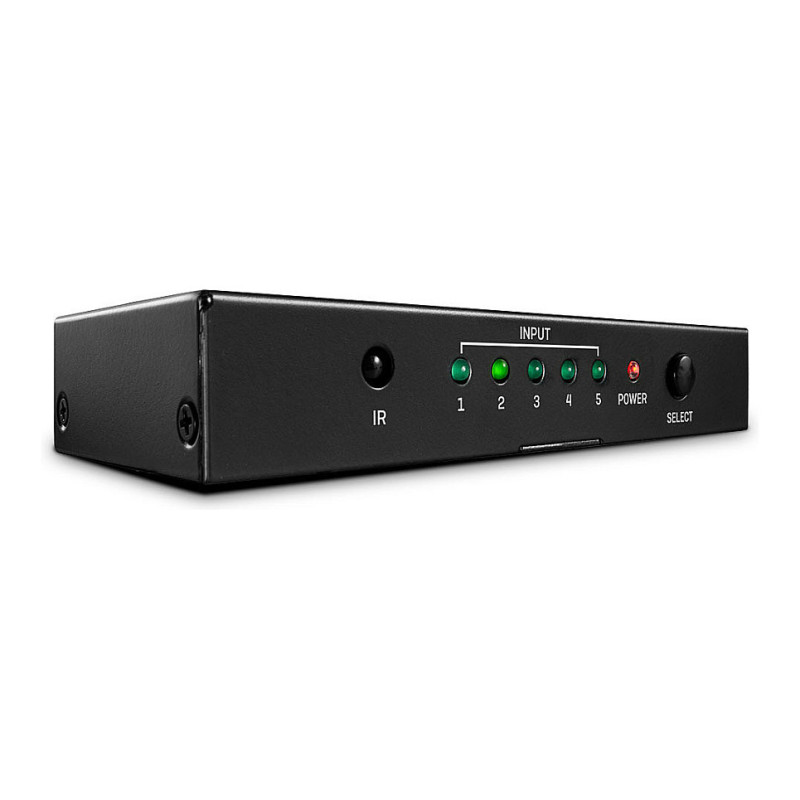

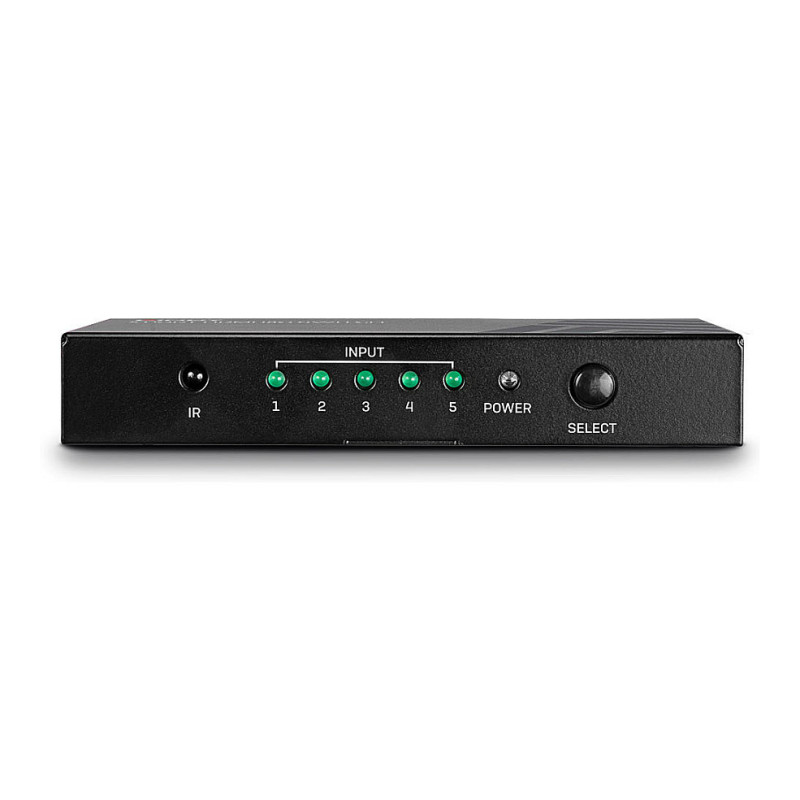

Flexible control via push button, IR remote and auto-switching
Compact, minimalist design to ensure no distraction from the display or installation
2 year warranty

HDMI switches are reliable solutions for controlling and switching multiple HDMI source devices and outputting to a single display.

The Lindy 5 Port HDMI 18G switch is a compact, high quality solution for effortlessly switching between 5 HDMI source devices when connected to a single display.

Supporting HDMI 18G signals, this switch allows for the transmission of detailed 4K Ultra HD resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. The switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations. HDCP 2.2 support ensures there are no compatability issues with a variety of 4K content from source devices including set top boxes, Blu-Ray players and 4K HDR media players.

This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 6
HDMI version: 2.0

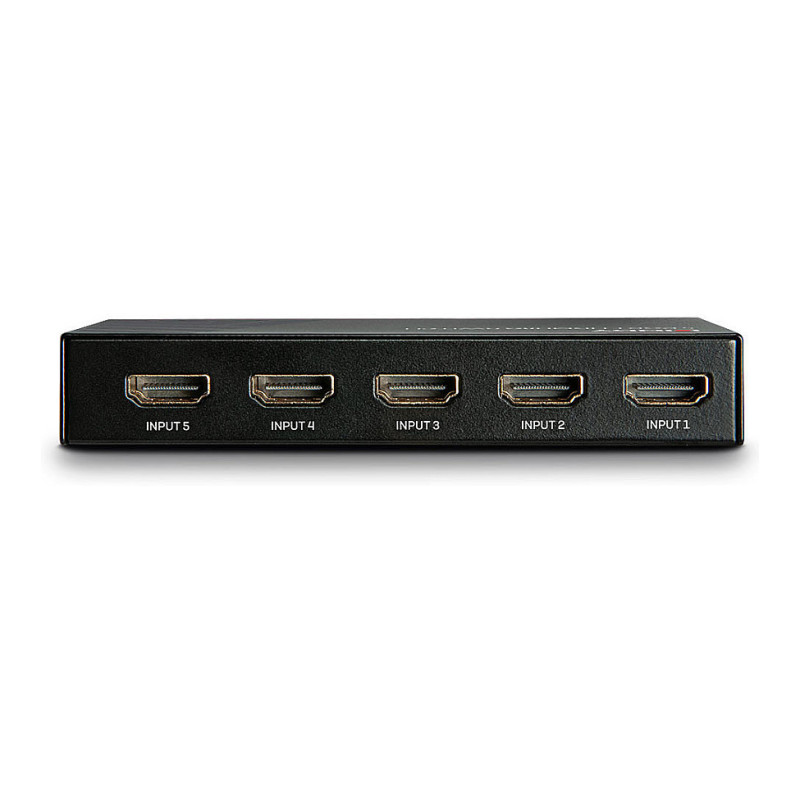

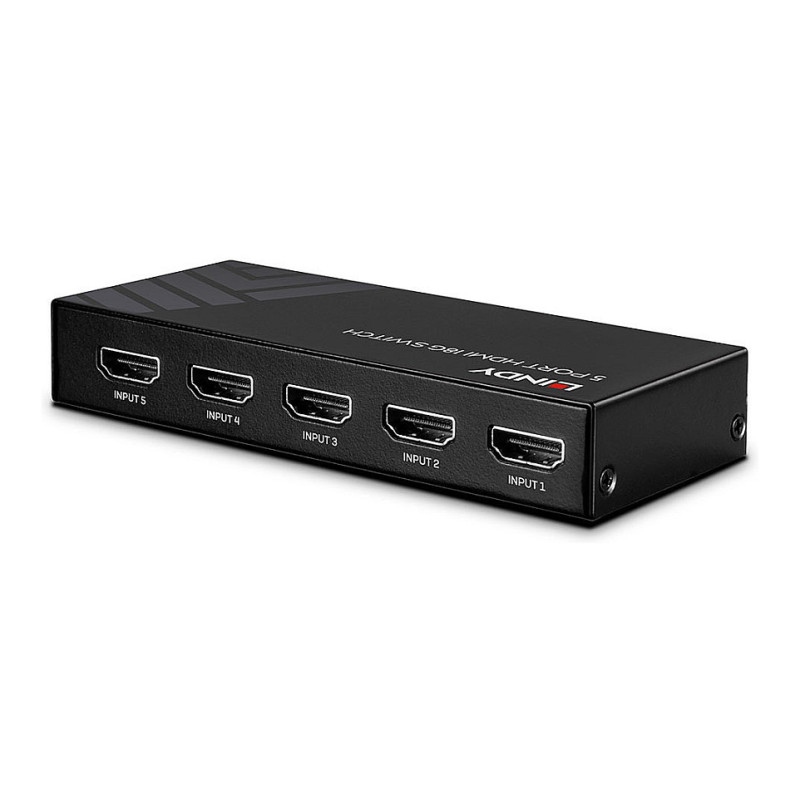

HDMI in: 5
Number of HDMI outputs: 1
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: HDCP
Bandwidth: 18 Gbit/s
LED indicators: Yes
Feature: External power adapter
Remote control type: RF
HD type: 4K Ultra HD
HDCP version: 2.2

Certificates

Certification: CE, FCC, REACH & California Proposition 65

Weight & dimensions

Width: 123 mm
Depth: 51 mm
Height: 20 mm
Weight: 158 g

Packaging data

Package width: 180 mm
Package depth: 135 mm
Package height: 80 mm
Package weight: 483 g

Packaging content

Feature: Remote control included
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 10 - 85%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
