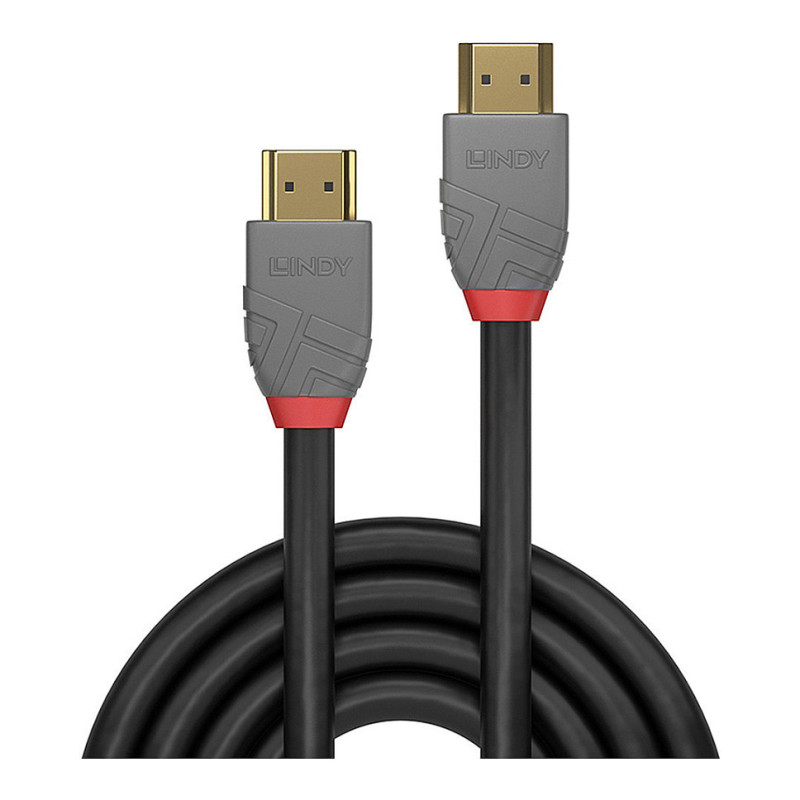

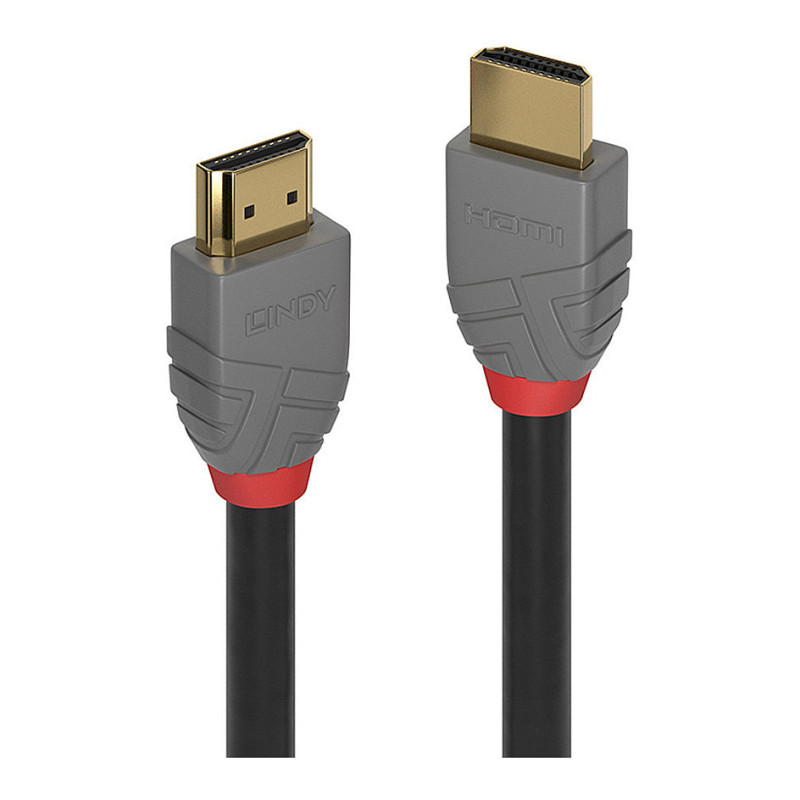

Lindy 36966 HDMI cable

Lindy 7.5m Standard HDMI Cable, Anthra Line. Cable length: 7.5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Product colour: Black, Grey

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

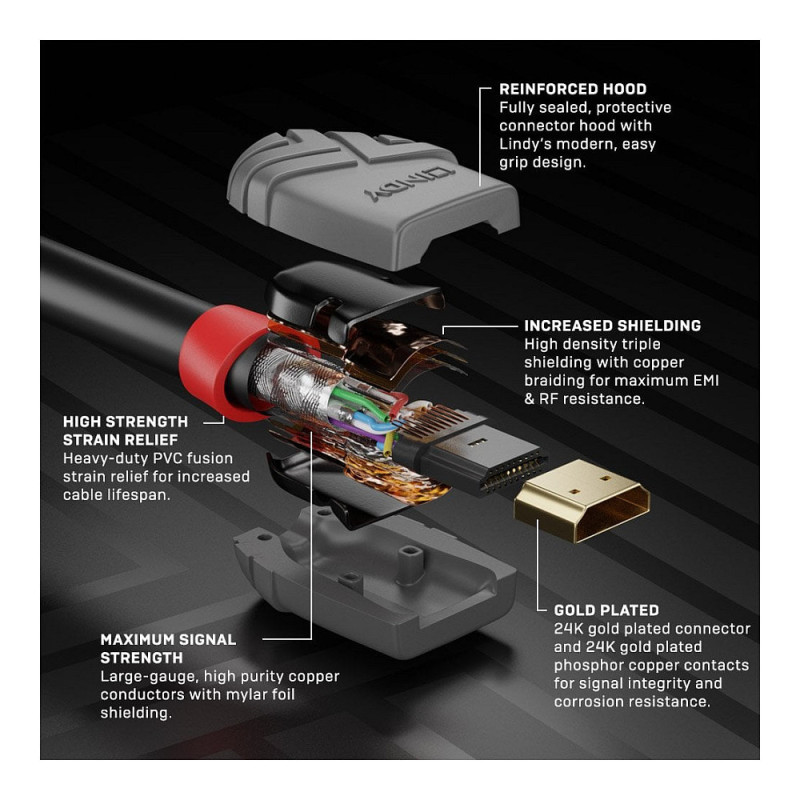

Anthra Line HDMI cables are premium connections that feature triple shielded with 24AWG copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:2:0 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

These HDMI 2.0 cables support 10.2Gbps bandwidth capacity in cable lengths from 7.5m up to 20m.

Anthra Line HDMI cables are available in lengths from 0.3m to 20m.

Features

Cable length: 7.5 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black, Grey
HDMI version: 2.0
Feature: 3D
Supported graphics resolutions: 3840 x 2160
Dolby technologies: DTS-HD Master Audio, Dolby TrueHD
Data transfer rate: 10.2 Gbit/s
Maximum refresh rate: 60 Hz
AWG wire size: 24
Contact material: Phosphor bronze
Connector contacts plating: Gold
Connector housing material: Polyvinyl chloride (PVC)
Cable material: Copper
Cable type: Round cable
Cable jacket material: Polyvinyl chloride (PVC)
Shield material: Aluminium
Bending radius (min): 9.8 cm
Colour sampling: 4:2:0
Nominal attenuation: 300kHz-825MHz --- 15dB825MHz-2.475GHz --- 15 - 29dB2.475GHz-4.125GHz --- 29 - 44dB4.125GHz-5.1GHz --- 44 - 48dB

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 85 °C

Certificates

Compliance certificates: RoHS
Certification: RoHS, REACH, UL

Weight & dimensions

Cable diameter: 9.8 mm
Connector 1 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm
Connector 2 dimensions (WxDxH): 21.4 x 41.44 x 12.7 mm

Packaging data

Package type: Polybag
Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
