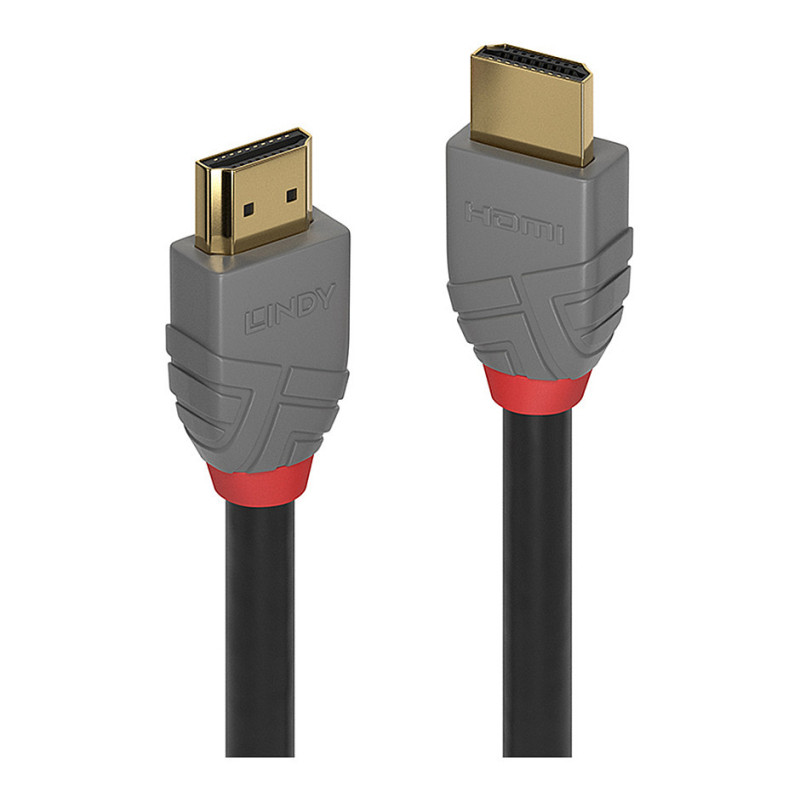

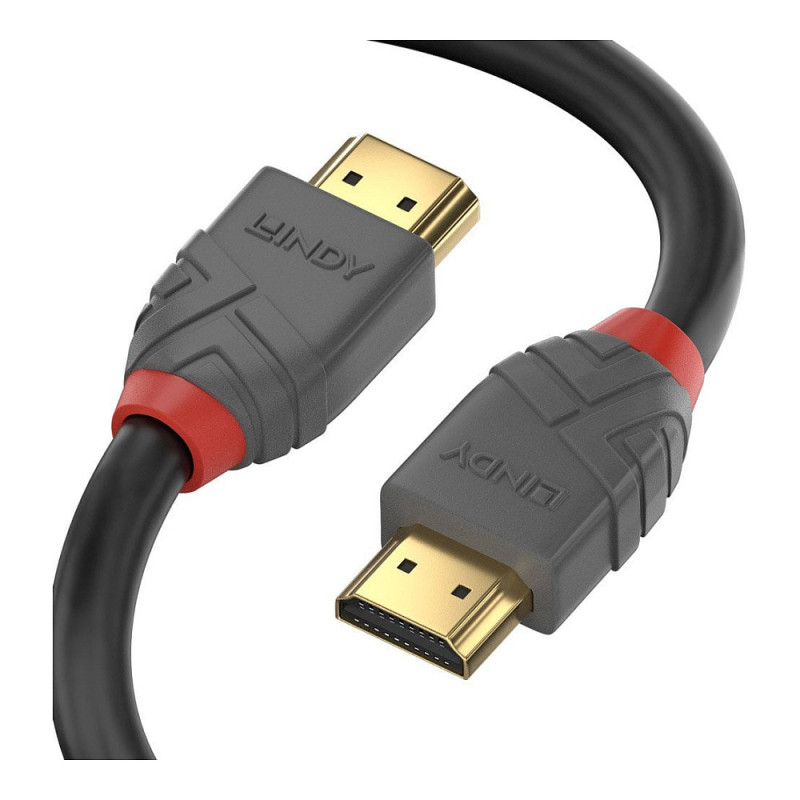

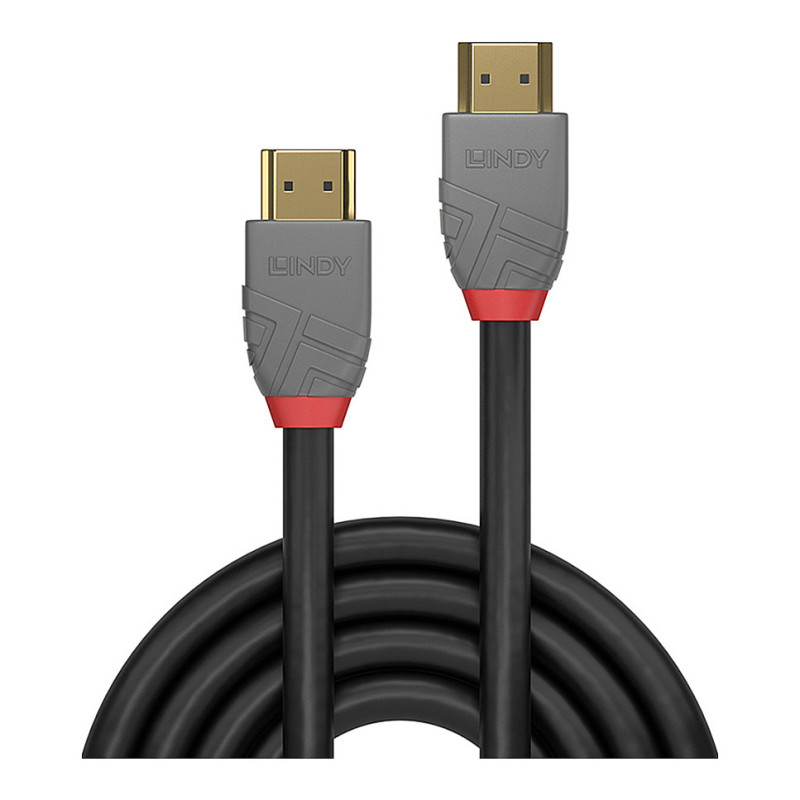

Lindy 36965 HDMI cable

Lindy 5m High Speed HDMI Cable, Anthra Line. Cable length: 5 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, Data transfer rate: 18 Gbit/s, Product colour: Black, Grey

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.

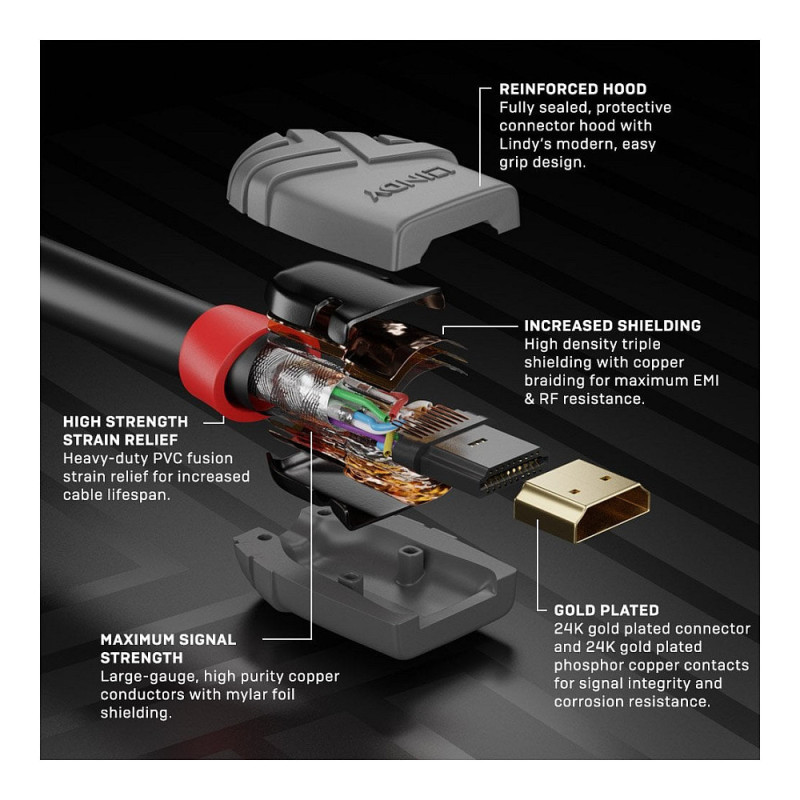

Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.

The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.

Anthra Line HDMI cables are available in lengths from 0.3m to 5m.

Features

Cable length: 5 m
Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Product colour: Black, Grey
Supported graphics resolutions: 4096 x 2160
Supported video modes: 2160p
Feature: HDMI Ethernet channel
Data transfer rate: 18 Gbit/s
AWG wire size: 30
Contact material: Phosphor copper
Connector contacts plating: Gold
Connector housing material: Polyvinyl chloride (PVC)
Connector material: Gold
Cable material: Copper
Cable type: Round cable
Cable jacket material: Polyvinyl chloride (PVC)
Shield material: Copper
Bending radius (min): 4.8 cm
Feature: Plug and Play
Colour sampling: 4:4:4
Nominal attenuation: 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Operational conditions

Operating temperature (T-T): -10 - 80 °C
Storage temperature (T-T): -10 - 80 °C

Certificates

Compliance certificates: RoHS
Certification: RoHS, REACH, UL, ATC

Weight & dimensions

Cable diameter: 6 mm
Connector 1 dimensions (WxDxH): 20 x 34.2 x 10.9 mm
Connector 2 dimensions (WxDxH): 20 x 34.2 x 10.9 mm

Packaging data

Package type: Polybag
Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
