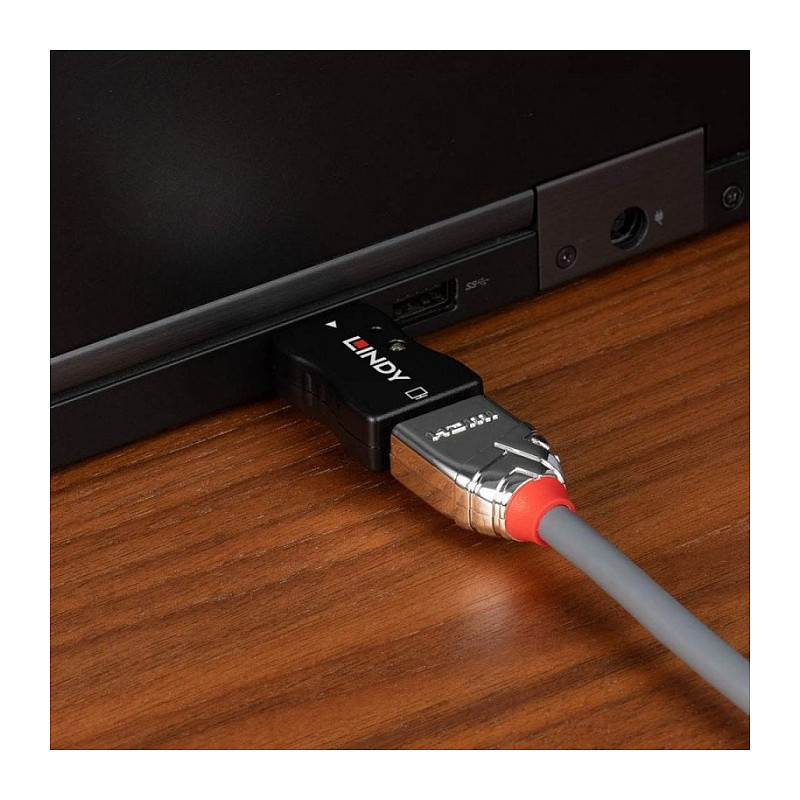

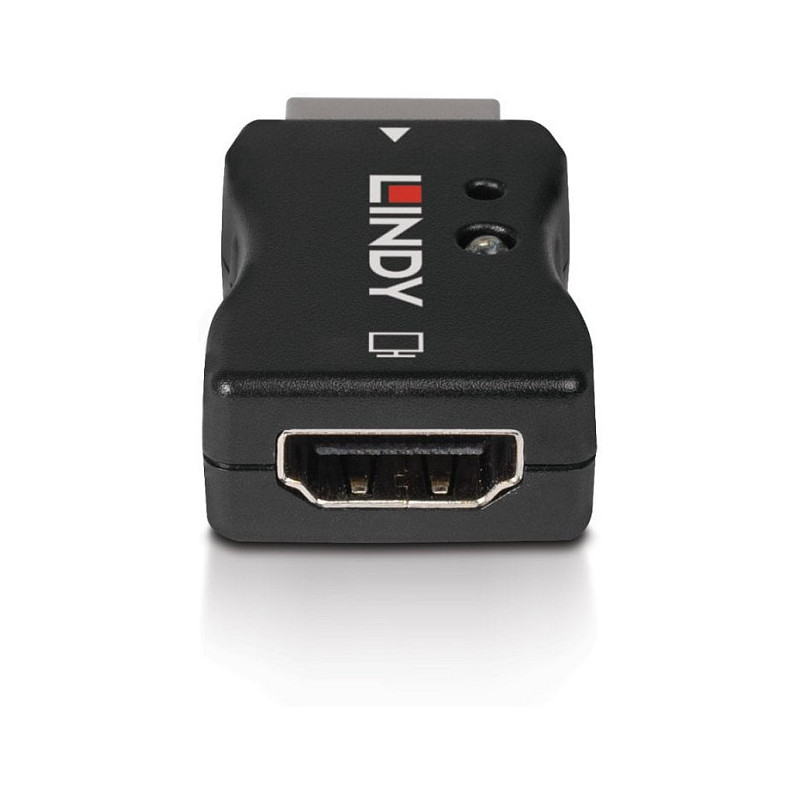

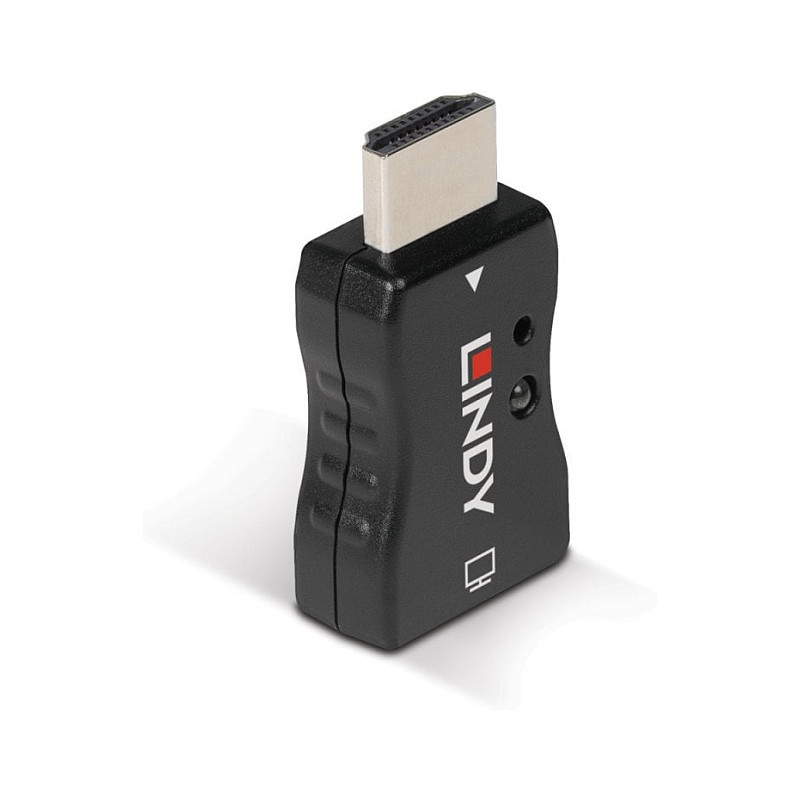

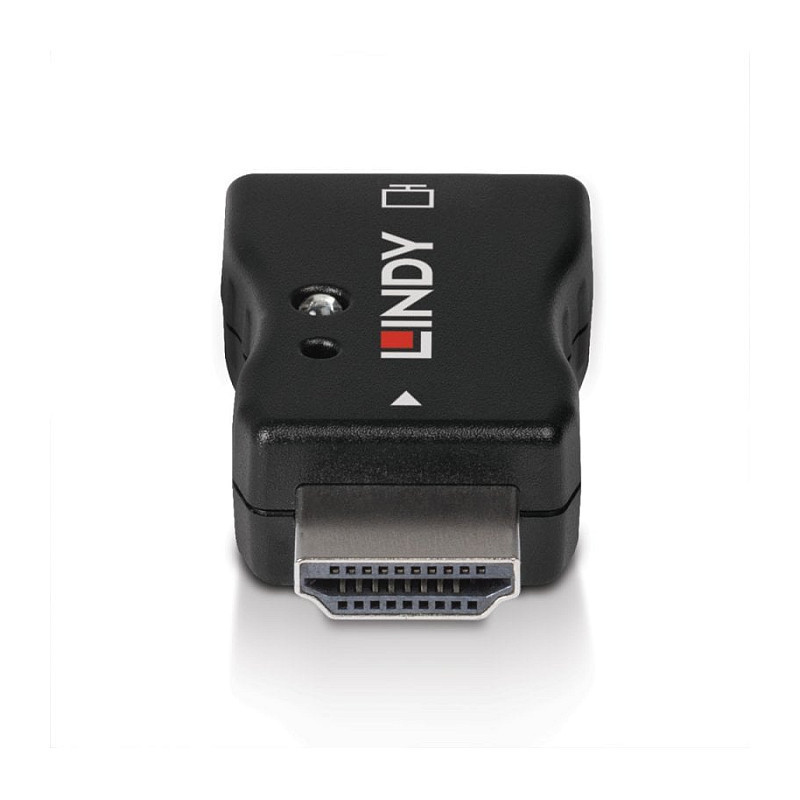

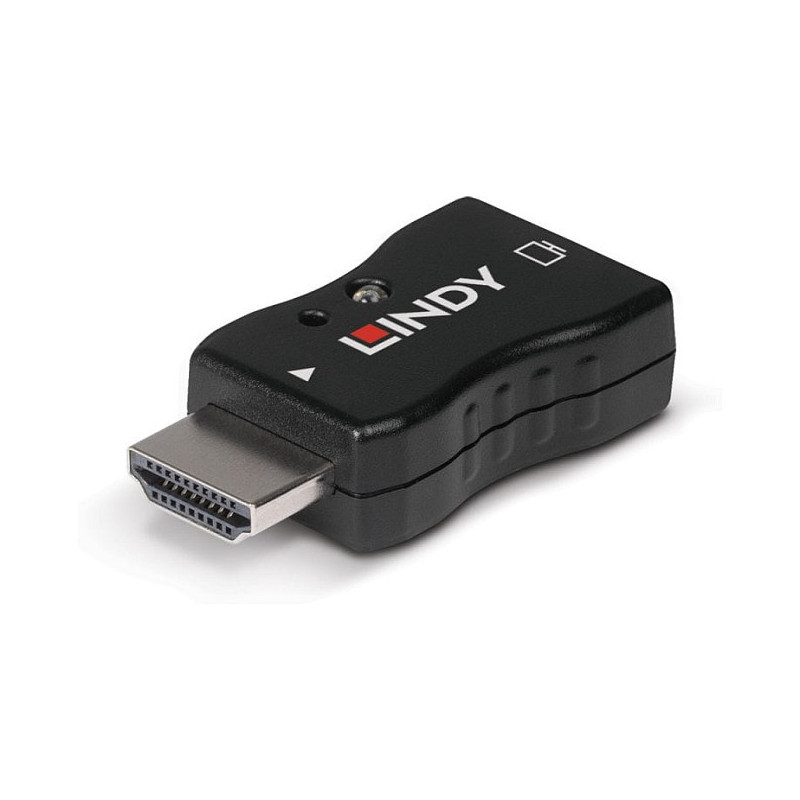

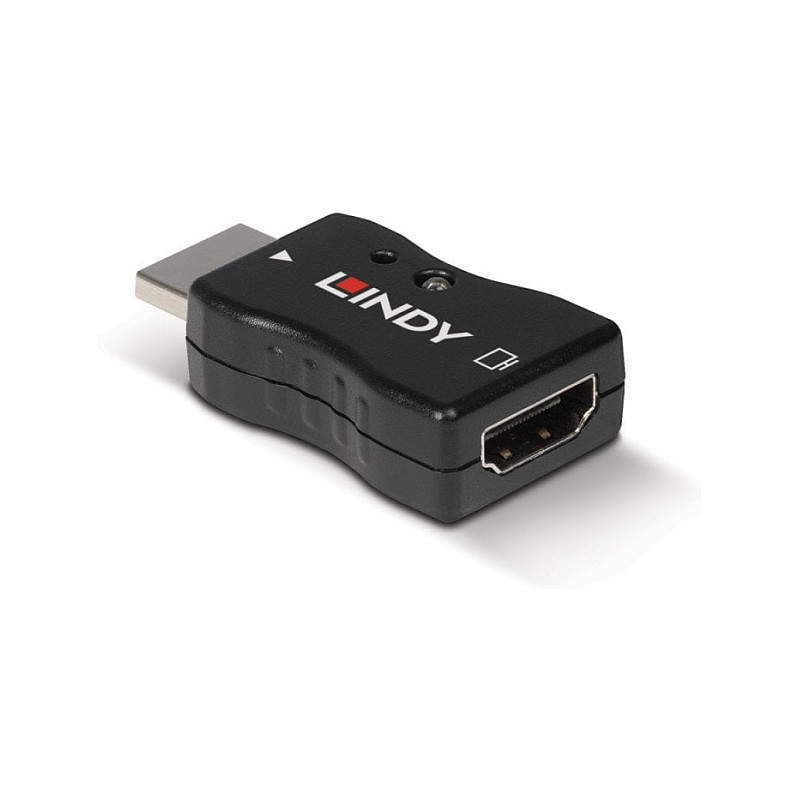

Lindy 32119 EDID emulator

Lindy HDMI 2.1 EDID Emulator. Maximum video resolution: 4096 x 2160 pixels, Video resolutions: 640 x 480,720 x 400,720 x 480,720 x 576,800 x 600,832 x 624,1024 x 768,1280 x 1024,1280 x 720,1280..., Audio output channels: 2.1 channels. Product colour: Black, Housing material: ABS, Certification: CE, FCC, RoHS, REACH. Video port type: HDMI. Package type: Polybag. Width: 24.1 mm, Depth: 44.2 mm, Height: 11.8 mm
The Lindy HDMI 2.1 EDID Emulator Adapter is designed for systems that require an uninterrupted signal to overcome EDID related issues that commonly occur when using AV equipment such KVM's, Extenders, Splitters Switches. With the small-scale and minimalistic design, this is a handy connectivity solution for both AV and IT installers to ensure legacy and new HDMI equipment works seamlessly with no compromise on performance.
The Emulator also features LED indicators to ensure a quick simple installation process and with support for resolutions up to 7620x4320@60Hz or 3840x2160@120Hz HDR (Via cloning), HDCP 2.3 pass-through, this emulator is perfect for use with Ultra HD 4K monitors.
This adapter can be used to quickly and easily clone the EDID data from the HDMI display so that the graphics card has direct access to the correct data from the display, the cloning process takes less than 10 seconds; Alternatively the EDID Emulator is configured with a preset EDID which uses the most common resolutions/timing combinations. Please see the technical information section for a full breakdown.

Features

Maximum video resolution: 4096 x 2160 pixels
Audio output channels: 2.1 channels
Audio formats supported: LPCM

Design

Product colour: Black
Housing material: ABS
Certification: CE, FCC, RoHS, REACH

Ports interfaces

Video port type: HDMI
Number of video inputs: 1
Number of video outputs: 1
Feature: HDCP

Packaging content

Feature: Manual
Package type: Polybag

Technical details

Warranty period: 2 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 0 - 80%

Weight dimensions

Width: 24.1 mm
Depth: 44.2 mm
Height: 11.8 mm
Weight: 8.8 g

Packaging data

Package width: 133 mm
Package depth: 144 mm
Package weight: 22 g
