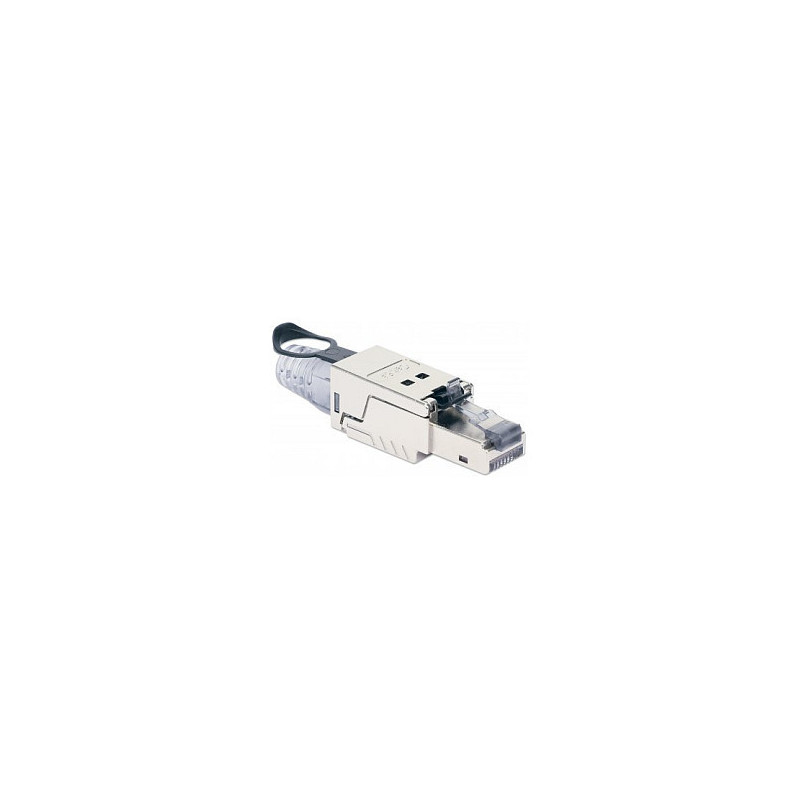

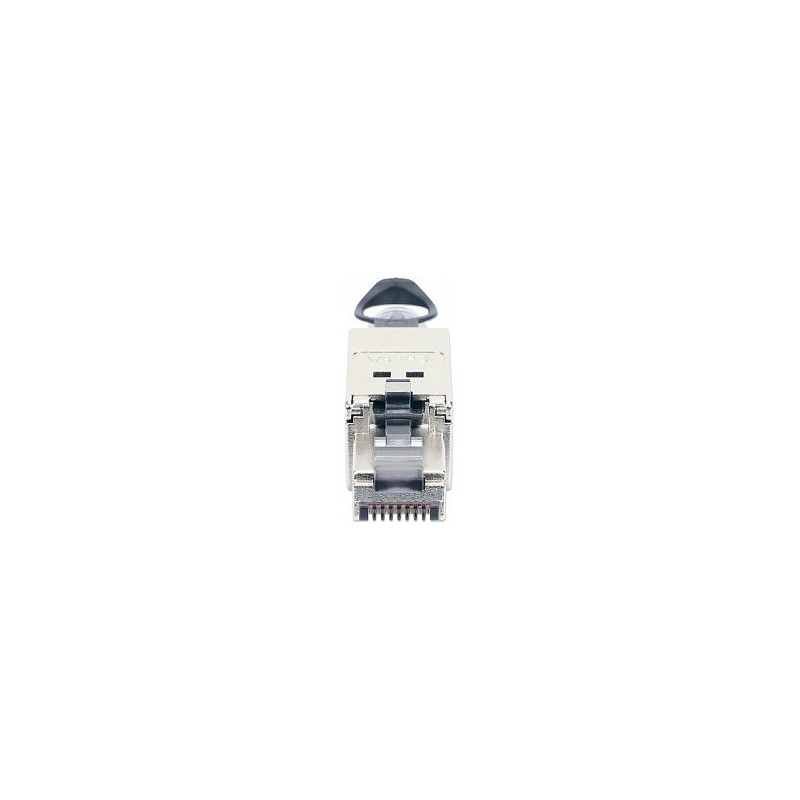

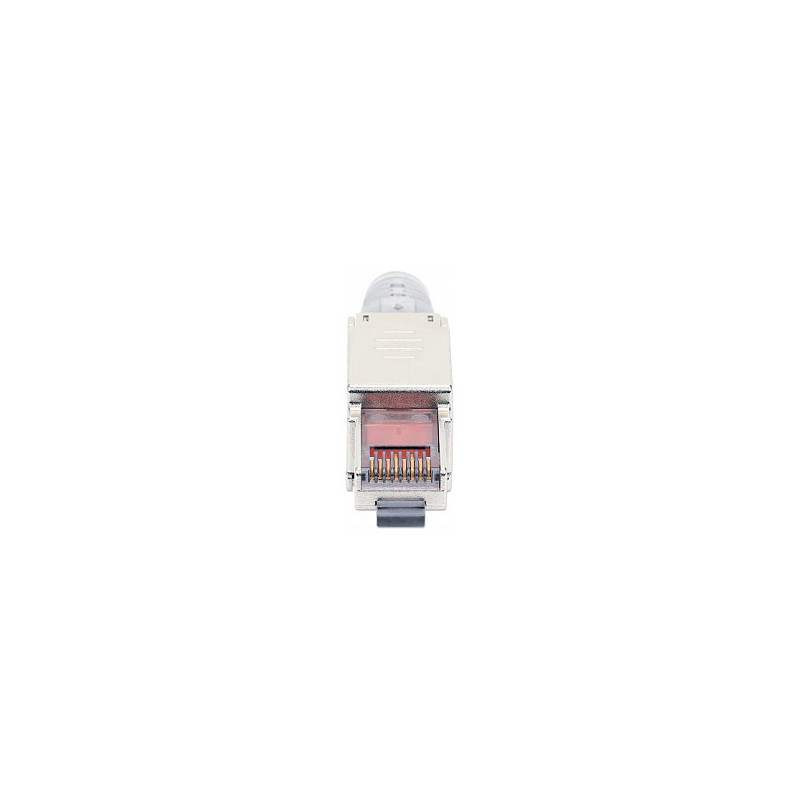

Intellinet 790741 wire connector

Intellinet Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug with Pull-ring Release, For Easy and Quick High-quality Cable Assembly in the Field, STP, for Solid Stranded Wire, Gold-plated Contacts, Metal Housing. Connector(s): RJ45, Product colour: Stainless steel, Connector gender: Male. Weight: 25 g, Width: 14 mm, Depth: 63 mm

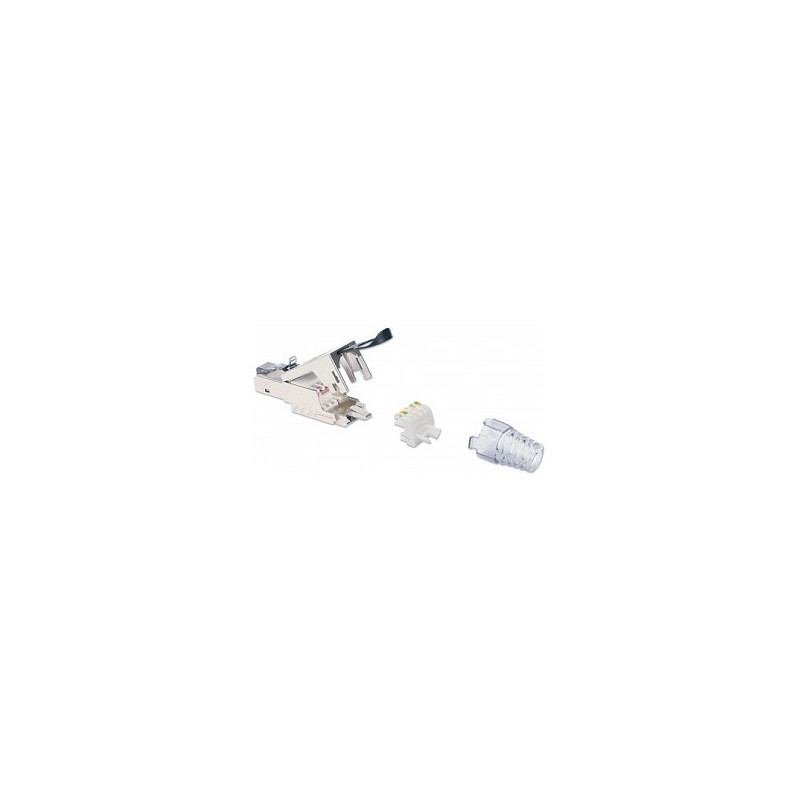

Field-installable Cat6a STP RJ45 Modular Plug for easy, fast and tool-free high-quality cable assembly
The Cat6a 10G Shielded Toolless RJ45 Modular Field Termination Plug with Pull-ring Release from Intellinet Network Solutions is designed for time-saving, high-quality cable terminations even when out in the field for such devices as security cameras, industrial electronics and more. Without any special tools, the cable can be assembled within two minutes. This plug is suitable for both stranded and solid conductor cables for high-performance network applications up to 10GBase-T with PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. For maximum signal integrity, it is equipped with gold-plated contacts and 360° STP shielding. A built-in pull-ring release tab makes disconnecting from the RJ45 port easier, especially in hard-to-reach places.

Features

Connector(s): RJ45
Connector gender: Male
Connector form factor: Straight
Product colour: Stainless steel
Cable standard: Cat6a
Cable shielding: U/FTP (STP)
Connector contacts plating: Gold
Current: 1.5 A
Certification: CERoHSFCCISO/IEC 11801IEC 60603-7-51Cat5 (ANSI/TIA/EIA-568-D)Cat5e (TIA/EIA-568-D)Cat6 (ANSI/TIA-568-D)Cat6a (ANSI/TIA-568-D)

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -40 - 70 °C

Weight dimensions

Weight: 25 g
Width: 14 mm
Depth: 63 mm
Height: 17 mm
