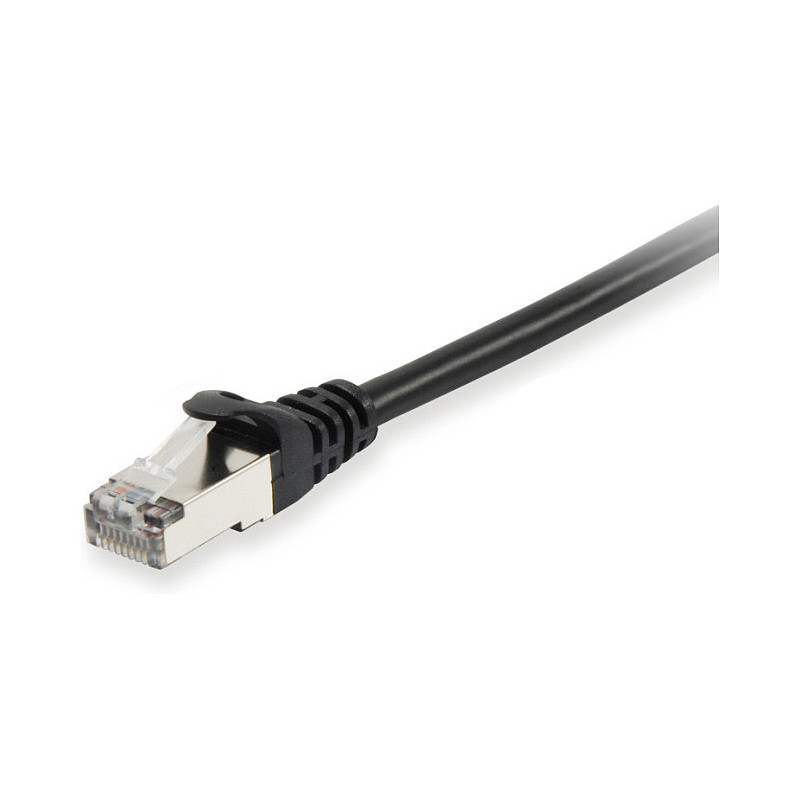

Equip 606107 networking cable

Equip Cat.6A S/FTP Patch Cable, 7.5m, Black. Cable length: 7.5 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Black

The equip® Cat.6A S/FTP Patch Cord is composed of preeminent materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6A cable is able to deliver ultrahigh and error-free performance in the most demanding network environments, specially for 10G application

Features

Product colour: Black
Cable length: 7.5 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10GBase-T
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.3, IEEE 802.5
AWG wire size: 26/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: CE, REACH, RoHS

Weight & dimensions

Width: 8.34 mm
Depth: 11.7 mm
Height: 7500 mm
Outer diameter: 6.1 mm
Weight: 240 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 180 mm
Package depth: 35 mm
Package height: 230 mm
Package weight: 137 g
Package type: Polybag

Other features

Insulation outer diameter: 1.05 mm

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 290 mm
Master (outer) case length: 350 mm
Master (outer) case gross weight: 9.4 kg
Master (outer) case height: 380 mm
Products per master (outer) case: 35 pc(s)

Technical details

Feature: Sustainability compliance
