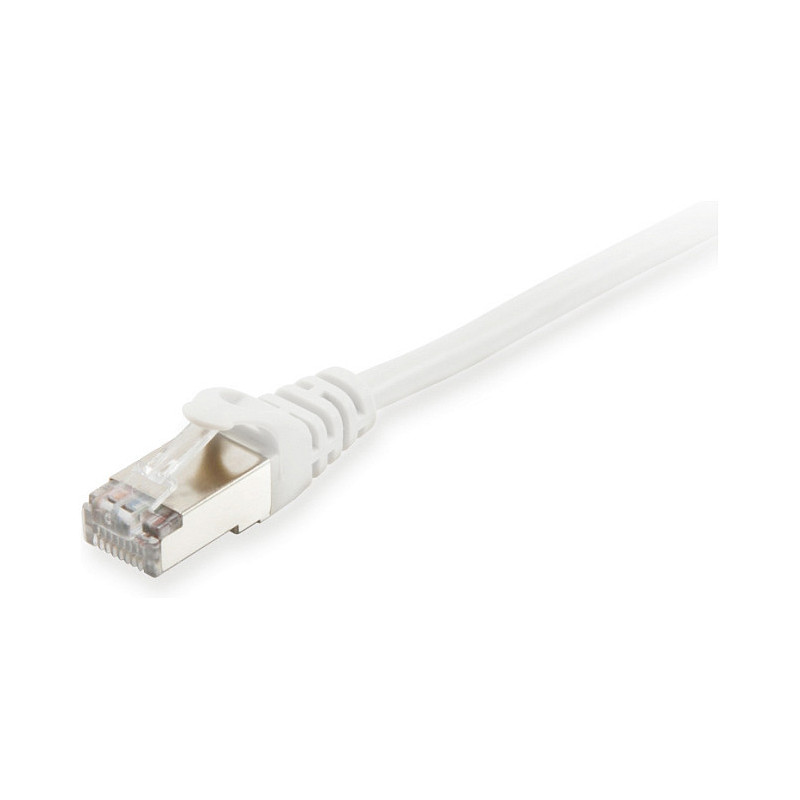

Equip 605516 networking cable

Equip Cat.6 S/FTP Patch Cable, 10m, White. Cable length: 10 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 1000 Mbit/s, Product colour: White

The equip® Cat.6 S/FTP Patch Cord is composed of high-quality materials and fully-examined to conform with industrial standards. Offering higher bandwidth and better signal-to-noise margin, the Cat.6 cable is able to deliver ultrahigh and error-free performance in the most demanding network environments.

Features

Product colour: White
Cable length: 10 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.3, IEEE 802.5
AWG wire size: 28/7
Data transfer rate: 1000 Mbit/s
Frequency: 250 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Feature: Molded cable boot
Feature: Plug and Play
Country of origin: China

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: CE, REACH, RoHS, UKCA
Certification: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2

Weight & dimensions

Width: 8.34 mm
Depth: 11.7 mm
Height: 10000 mm
Outer diameter: 5.8 mm
Weight: 384 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 220 mm
Package depth: 40 mm
Package height: 260 mm
Package weight: 180 g

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 290 mm
Master (outer) case length: 350 mm
Master (outer) case gross weight: 12.5 kg
Master (outer) case height: 380 mm
Products per master (outer) case: 40 pc(s)

Technical details

Feature: Sustainability compliance
