Equip 133500 laptop dock / port replicator

Equip USB-C 6 in 1 Multifunctional Adapter, HDMI 4K/30Hz, USB-C x 4 , USB-A x 1, 5Gbps, 100W USB PD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Grey, HD type: 4K Ultra HD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, USB cable length: 0.25 m. Width: 113.3 mm, Depth: 28 mm, Height: 10 mm. Package width: 173 mm, Package depth: 23 mm, Package height: 75 mm

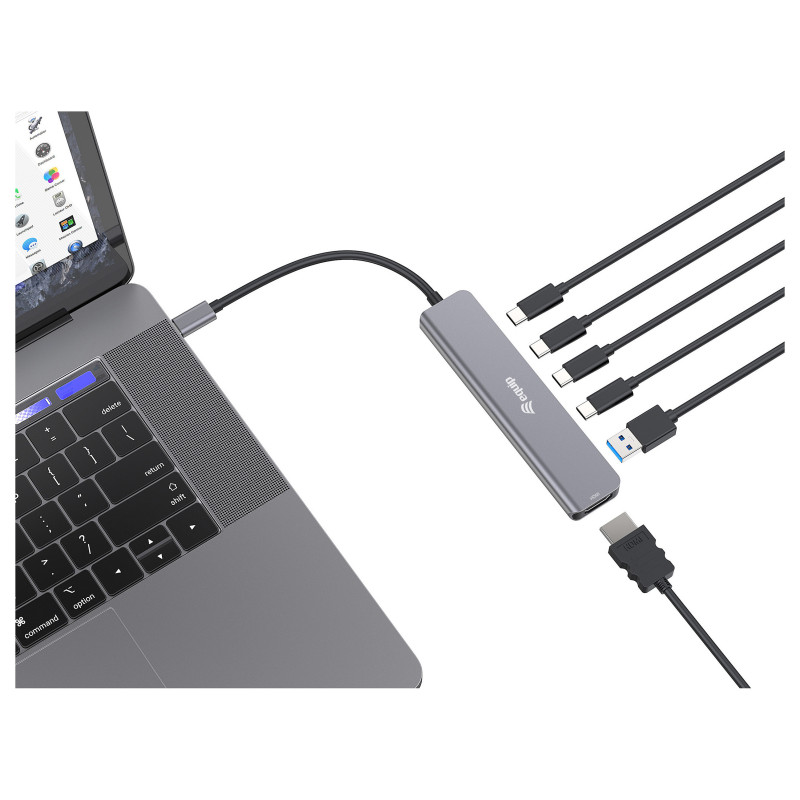

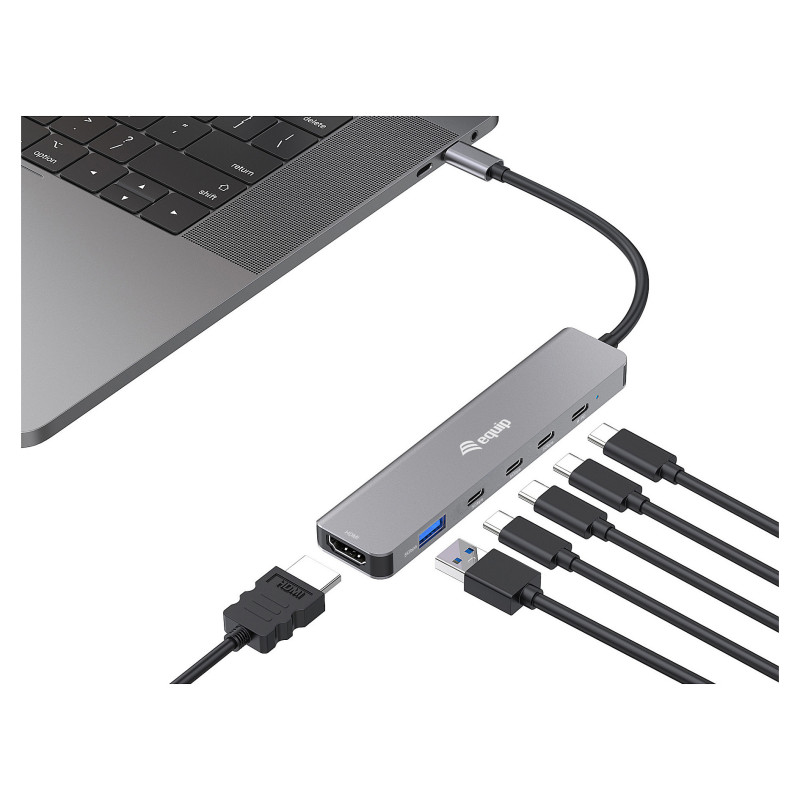

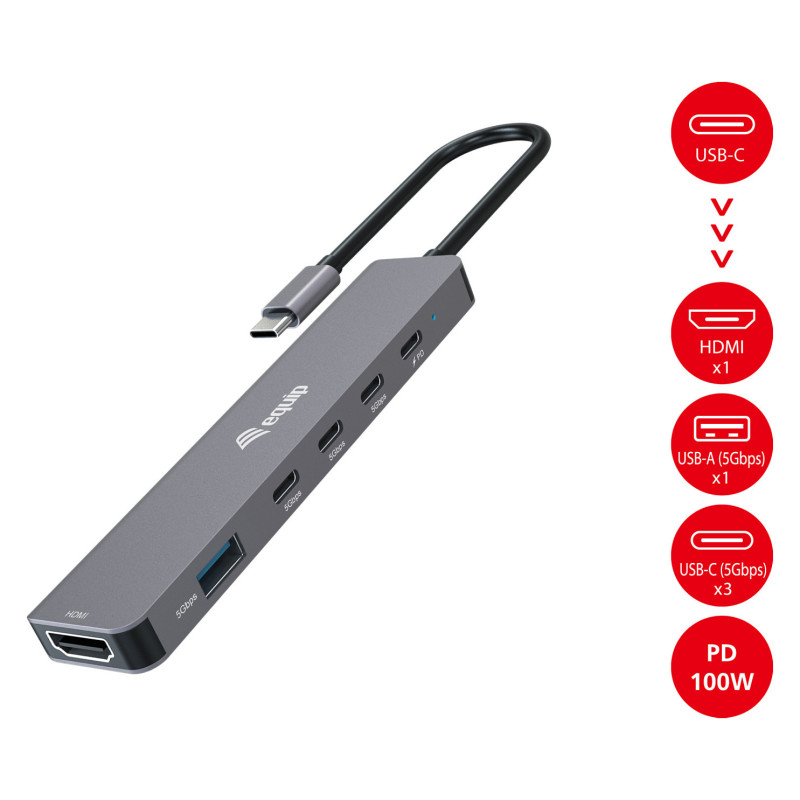

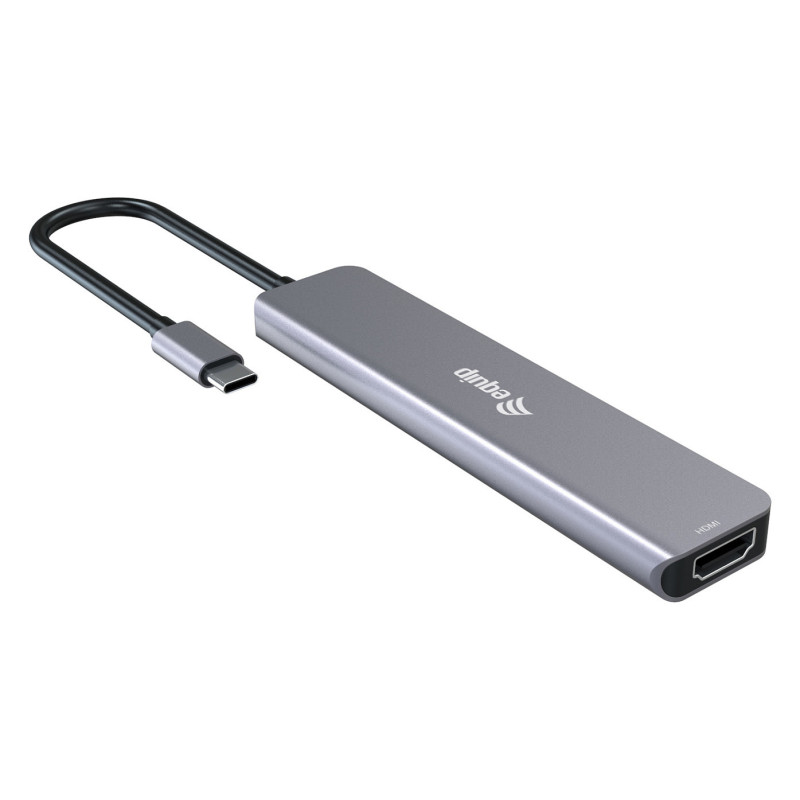

The Equip 133500 USB-C 6-in-1 Multifunctional Adapter is a compact and versatile accessory designed to maximize the connectivity of modern laptops, tablets, and smartphones equipped with USB-C ports. Built with portability and convenience in mind, this adapter integrates six essential functions into one sleek device, eliminating the need to carry multiple dongles.

Featuring an HDMI port that supports resolutions up to 4K at 30Hz, it allows you to extend or mirror your display with sharp images and vibrant colors, making it ideal for presentations, entertainment, or multitasking on larger screens. In addition, the adapter provides four USB-C ports, enabling users to connect multiple devices such as external drives, keyboards, or other peripherals with ease. A USB-A port supporting data transfer speeds up to 5Gbps ensures seamless connectivity with legacy devices such as flash drives and accessories.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 4
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 1.4
Feature: USB Type-C DisplayPort Alternate Mode

Performance

HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Grey
Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
USB cable length: 0.25 m

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 113.3 mm
Depth: 28 mm
Height: 10 mm
Weight: 43 g

Packaging data

Package width: 173 mm
Package depth: 23 mm
Package height: 75 mm
Package weight: 80 g

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 100 pc(s)
Master (outer) case width: 460 mm
Master (outer) case length: 395 mm
Master (outer) case height: 195 mm
Master (outer) case gross weight: 8.8 kg
Customs product code (TARIC): 8471800000
