Equip 133499 laptop dock / port replicator

Equip USB-C 6 in 1 Multifunctional Adapter, HDMI 4K/60Hz, USB-C Gen2 x 4 (10Gbps), 100W USB PD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, USB cable length: 0.25 m. Windows operating systems supported: Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise,..., Mac operating systems supported: Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac..., Mobile operating systems supported: Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 5.0, Android 5.1,.... Width: 28 mm, Depth: 10 mm, Height: 360 mm

The Equip 133499 USB-C 6-in-1 Multifunctional Adapter is designed to expand the connectivity options of modern laptops, tablets, and smartphones equipped with USB-C ports. With its compact and lightweight form factor, this versatile adapter combines multiple essential interfaces into one reliable solution, making it perfect for both professional and personal use.

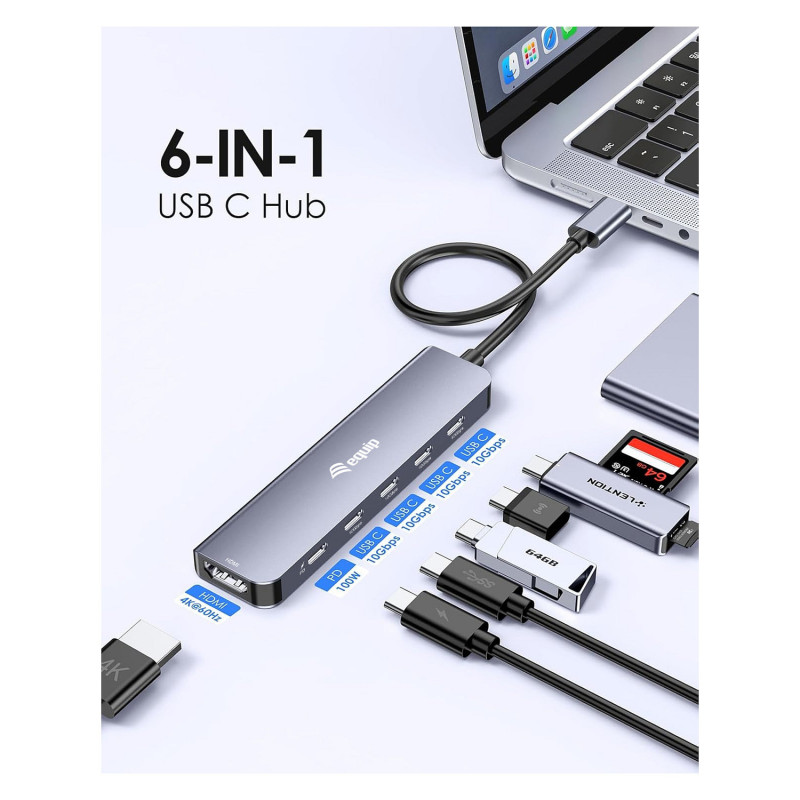

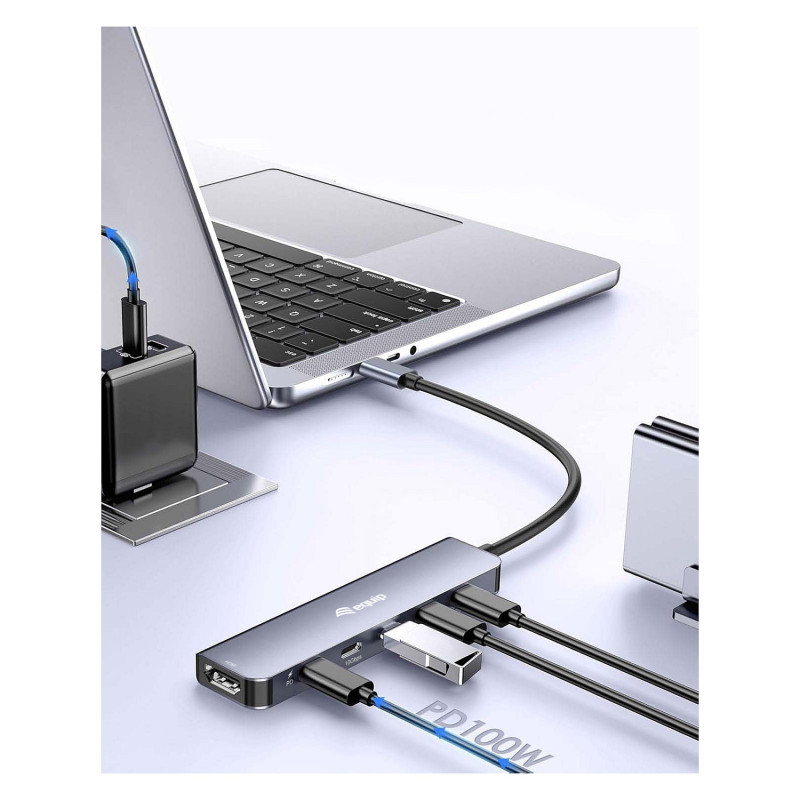

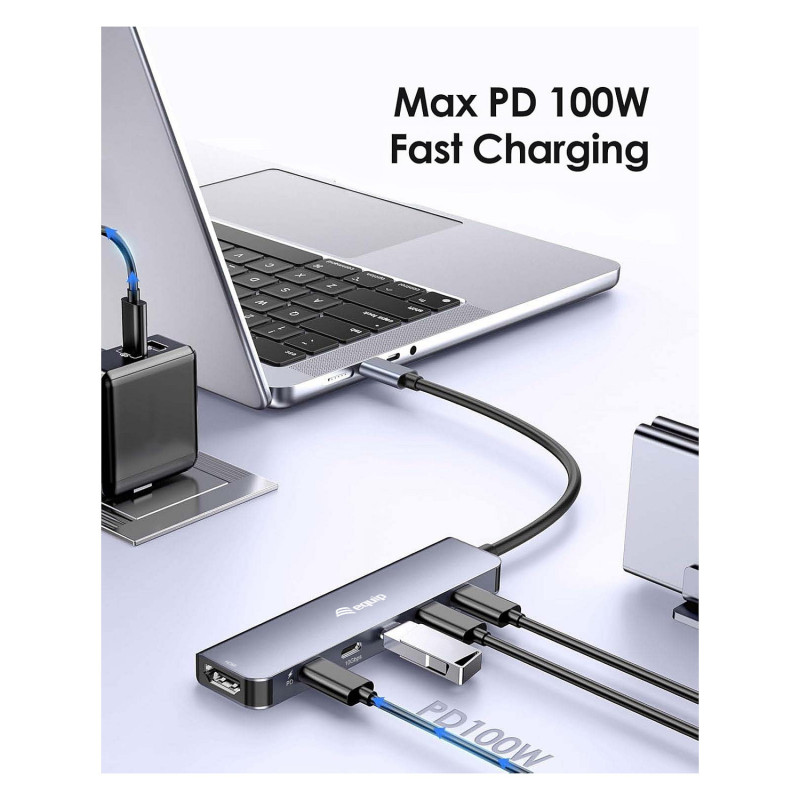

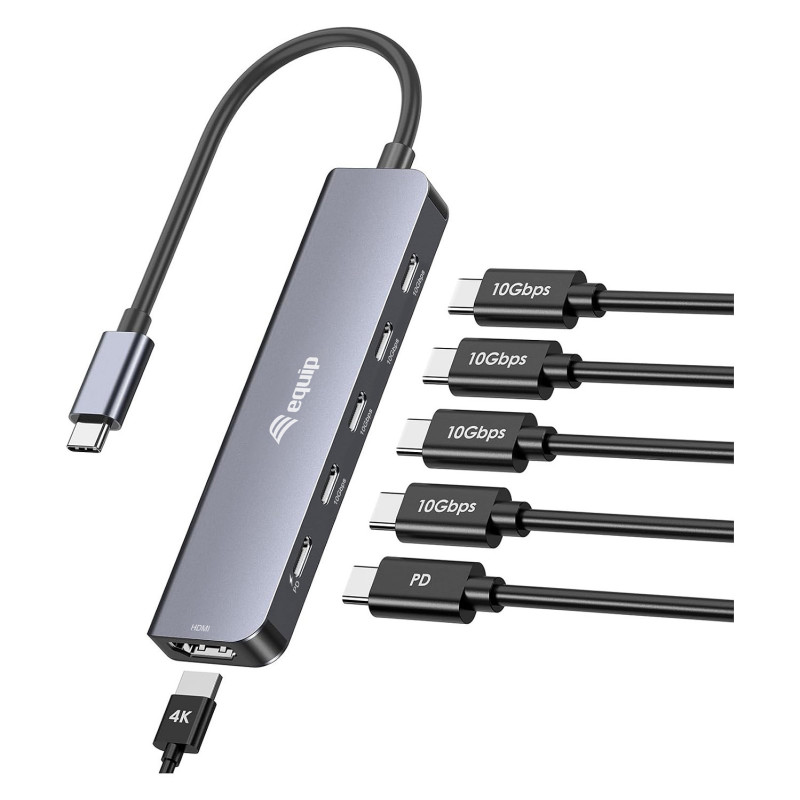

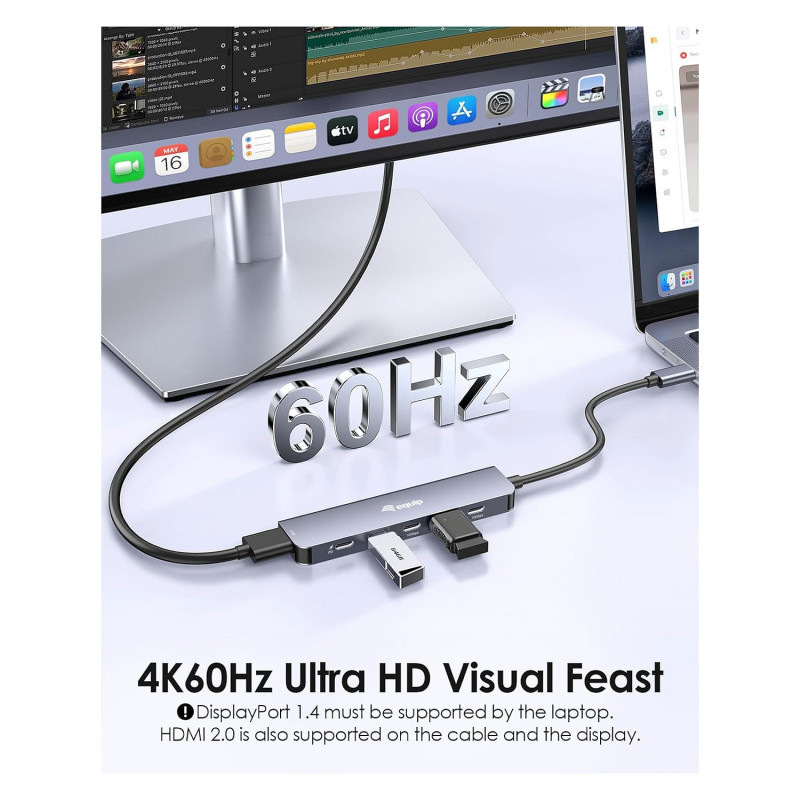

It features a high-definition HDMI output that supports resolutions up to 4K at 60Hz, allowing you to extend or mirror your display onto monitors, TVs, or projectors with smooth and detailed visuals—ideal for presentations, video streaming, and multitasking. Four USB-C Gen2 ports provide data transfer speeds up to 10Gbps, enabling fast synchronization of large files, external drives, cameras, and other peripherals. Additionally, the adapter supports 100W USB Power Delivery (PD) passthrough charging, ensuring your device remains powered even while multiple functions are in use.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1

Performance

Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Grey
Feature: Plug and Play
Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
USB cable length: 0.25 m

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 28 mm
Depth: 10 mm
Height: 360 mm
Weight: 45 g

Packaging data

Package width: 74 mm
Package depth: 17 mm
Package height: 174 mm
Package weight: 60.2 g

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 100 pc(s)
Master (outer) case width: 312 mm
Master (outer) case length: 520 mm
Master (outer) case height: 165 mm
Master (outer) case gross weight: 6.7 kg
Customs product code (TARIC): 8536901100
