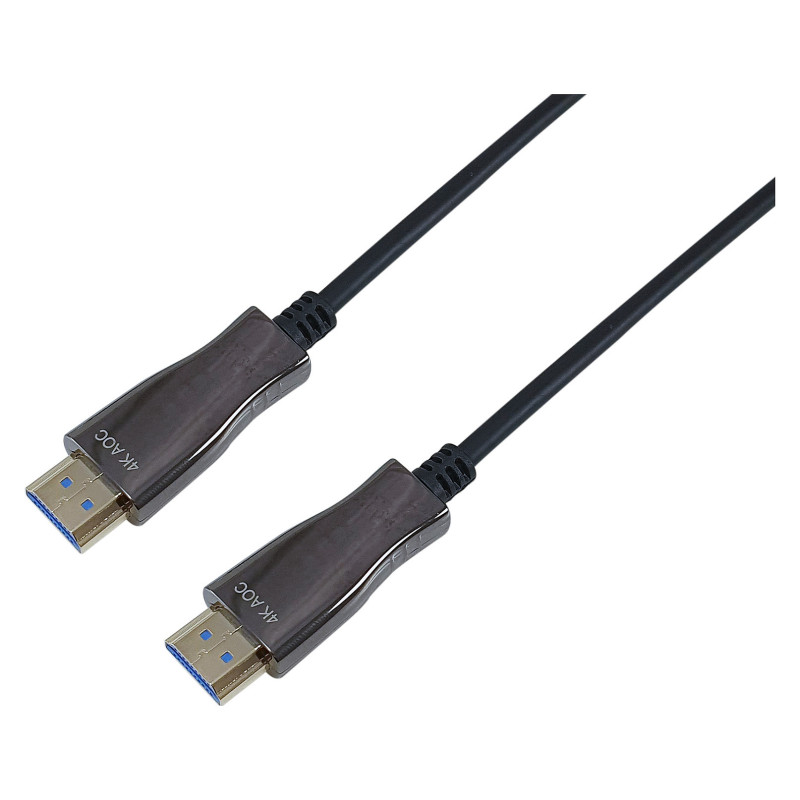

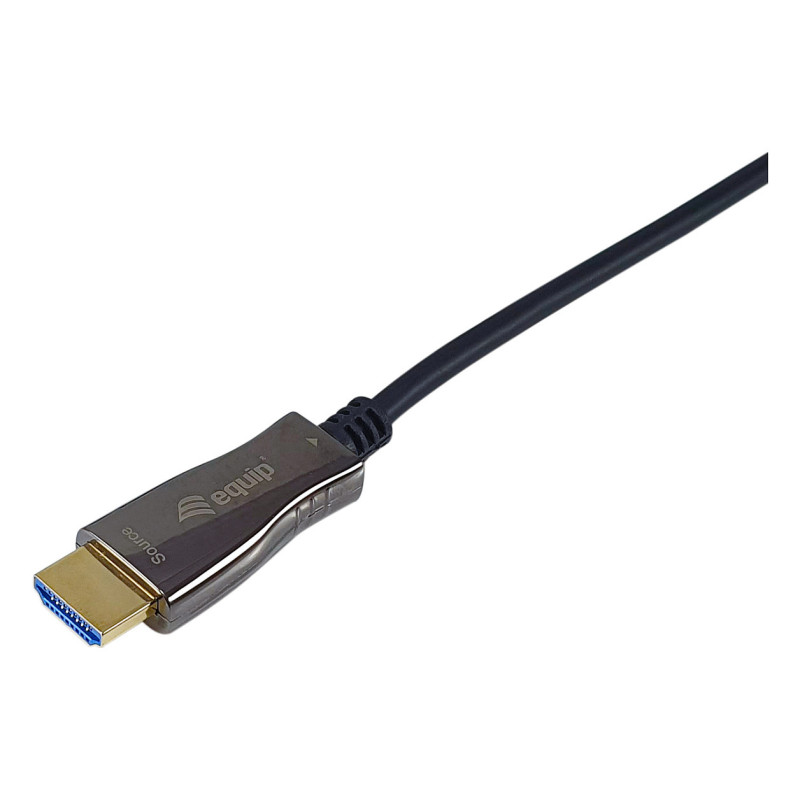

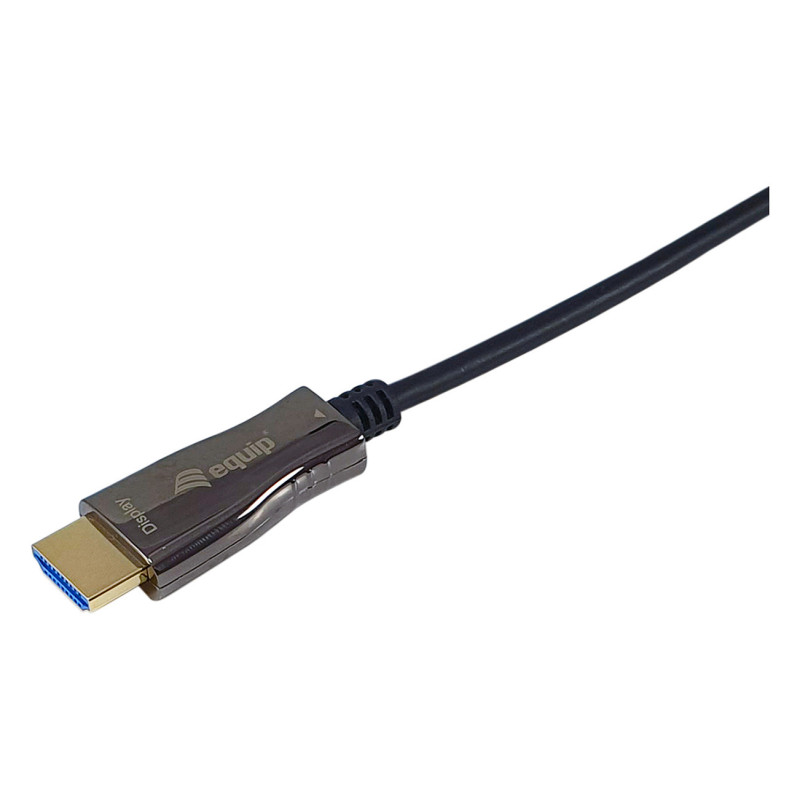

Equip 119437 HDMI cable

Equip HDMI 2.0 Active Optical Cable, 10m, 4K/60Hz. Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Product colour: Black

The Equip 11943x series Active Optical Cable (AOC) is a cabling technology that accepts the same electrical inputs as a traditional copper cable but uses optical fibre between the connectors to extend HDMI signals with zero loss or latency. Our hybrid cable design consists of optical fibres and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibres, while the low frequency control signals are transmitted through the copper wires. The range of active optical leads give you up to 100m of distance without a drop of signal quality or the requirement of a separate power supply.

Features

Connector 1: HDMI Type A (Standard)
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
HDMI cable type: High Speed HDMI cable with Ethernet
Product colour: Black
HDMI version: 2.0
Feature: 3D
Supported graphics resolutions: 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
Feature: HDMI Ethernet channel
Feature: HDCP
HDCP version: 2.2
Bandwidth: 18000 MB/s
Feature: High Dynamic Range (HDR) supported
Maximum refresh rate: 240 Hz
Connector contacts plating: Gold
Cable type: Round cable
Cable jacket material: Polyvinyl chloride (PVC)

Certificates

Compliance certificates: CE, REACH, RoHS

Weight & dimensions

Weight: 350 g

Packaging data

Package width: 230 mm
Package depth: 210 mm
Package height: 70 mm
Package weight: 850 g

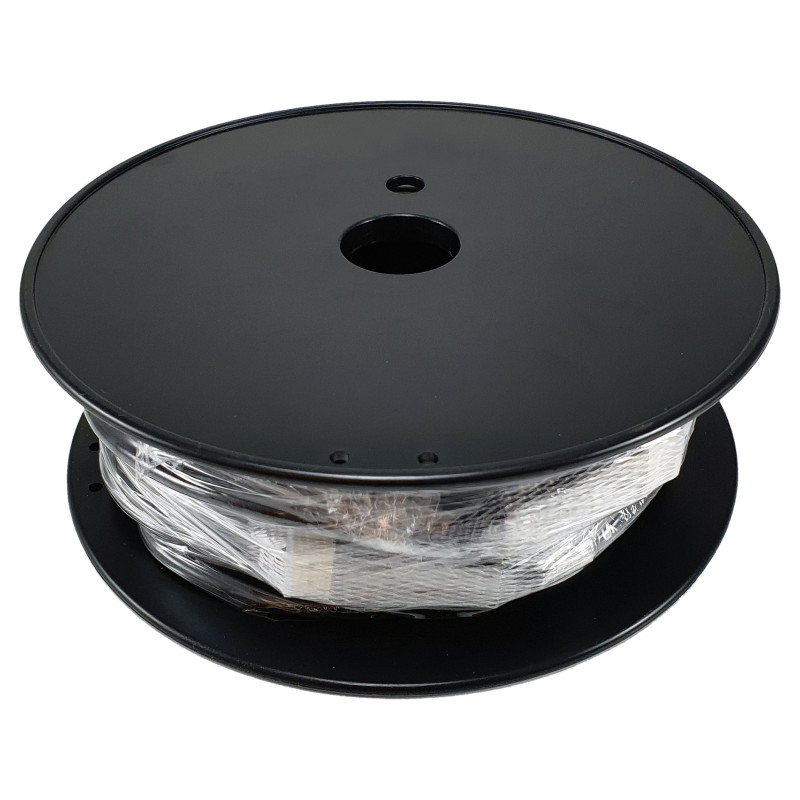

Package type: Box
Quantity per pack: 1 pc(s)

Other features

Depth: 10 mm
Height: 10000 mm
Width: 19.5 mm

Logistics data

Country of origin: China
Harmonized System (HS) code: 8544421000
Master (outer) case width: 440 mm
Master (outer) case length: 245 mm
Master (outer) case height: 385 mm
Master (outer) case gross weight: 3.5 kg
Products per master (outer) case: 10 pc(s)
