EFB Elektronik 88035.1 wire connector

EFB Elektronik 88035.1. Connector(s): RJ-45, Product colour: Silver. Quantity per pack: 1 pc(s)

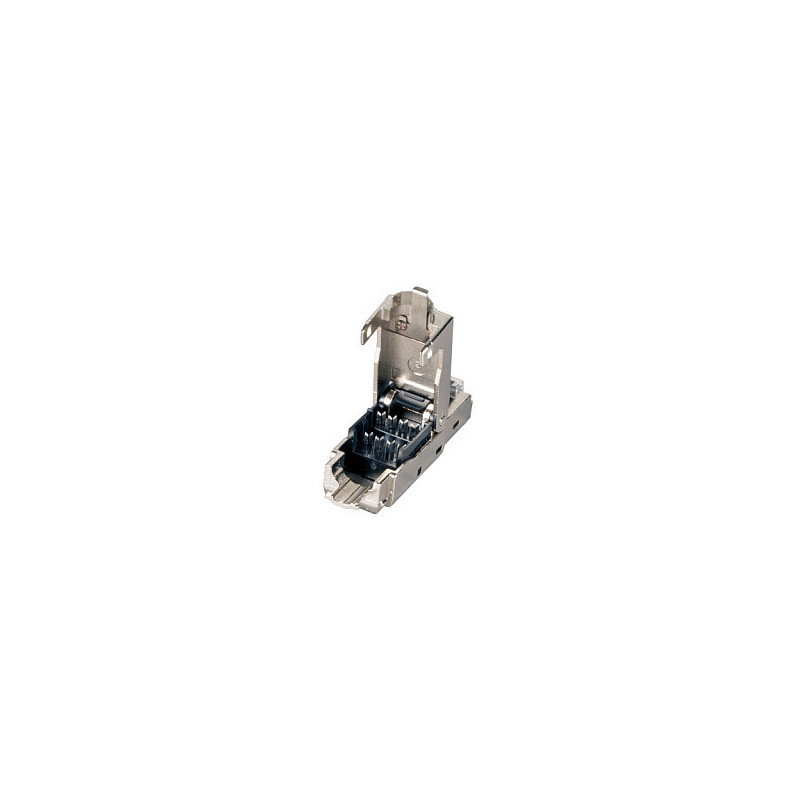

The INFRALAN FTPS600 provides a combination of excellent transmission quality and fast and easy tool-free assembly.
Fully shielded zinc diecast housing ensures the best EMC features especially in industrial environments.
IDC terminals and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire gauge from AWG22 - AWG27.

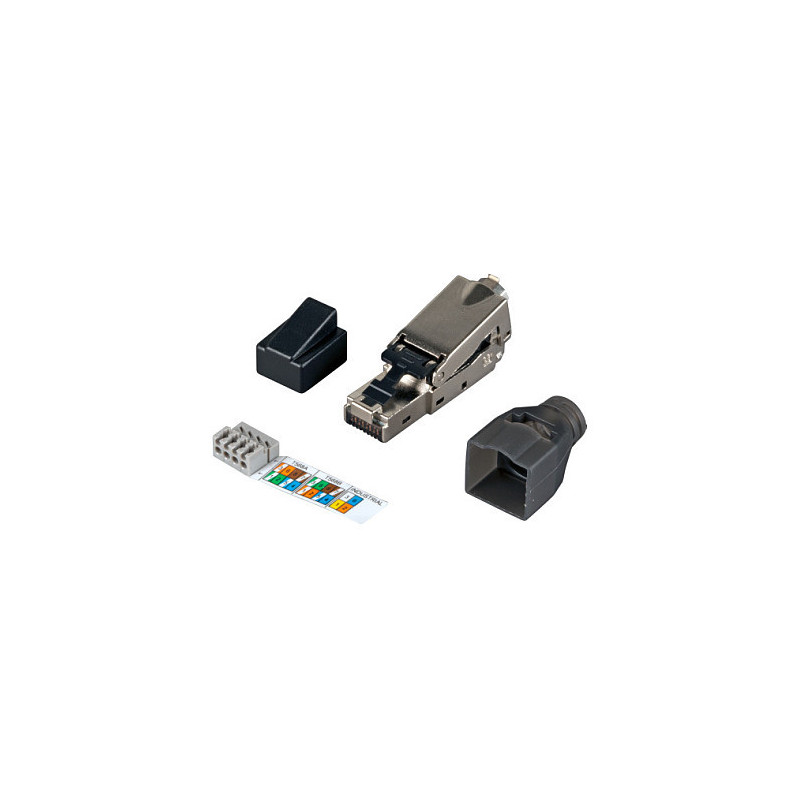

Shielded zinc diecast body with separate dust cap and strain relief boot
Class E performance according to ISO/IEC11801 and IEC60603-7-5
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 10 times, for AWG27/7 up to 5 times.
Suitable for cable dia from 6,0mm .. 9,0mm
Strain relief with cable tie

Features

Connector(s): RJ-45
Product colour: Silver

Packaging data

Quantity per pack: 1 pc(s)

Technical details

Cable diameter: 9 mm
Cable type: Cat.6
