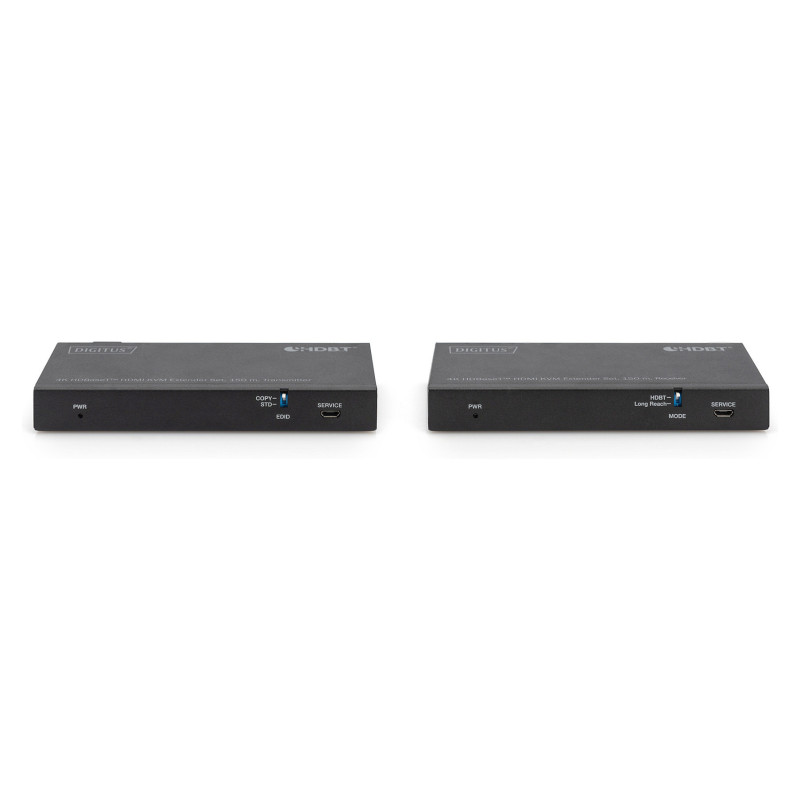

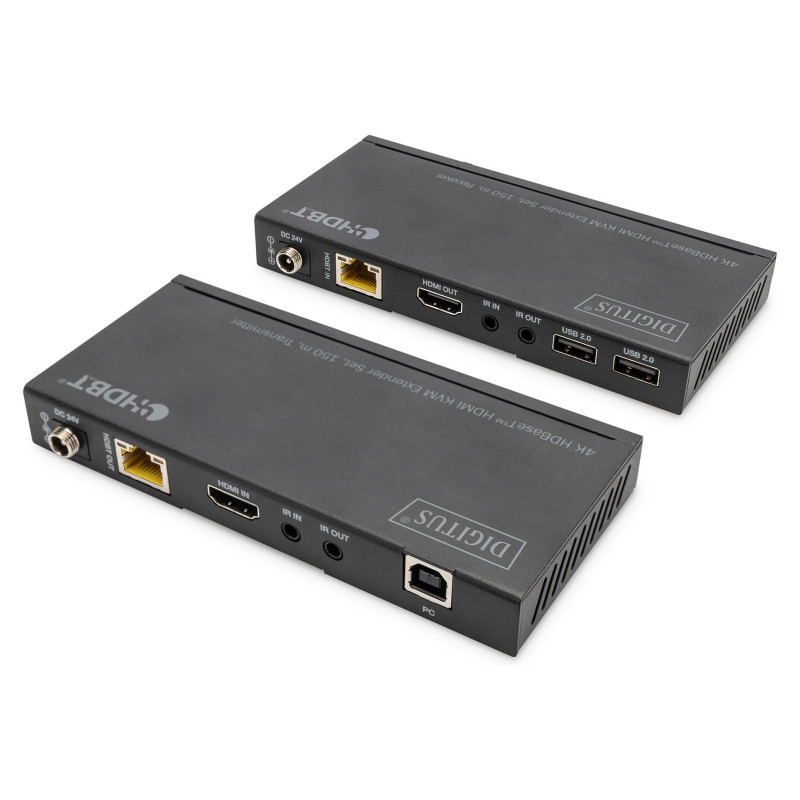

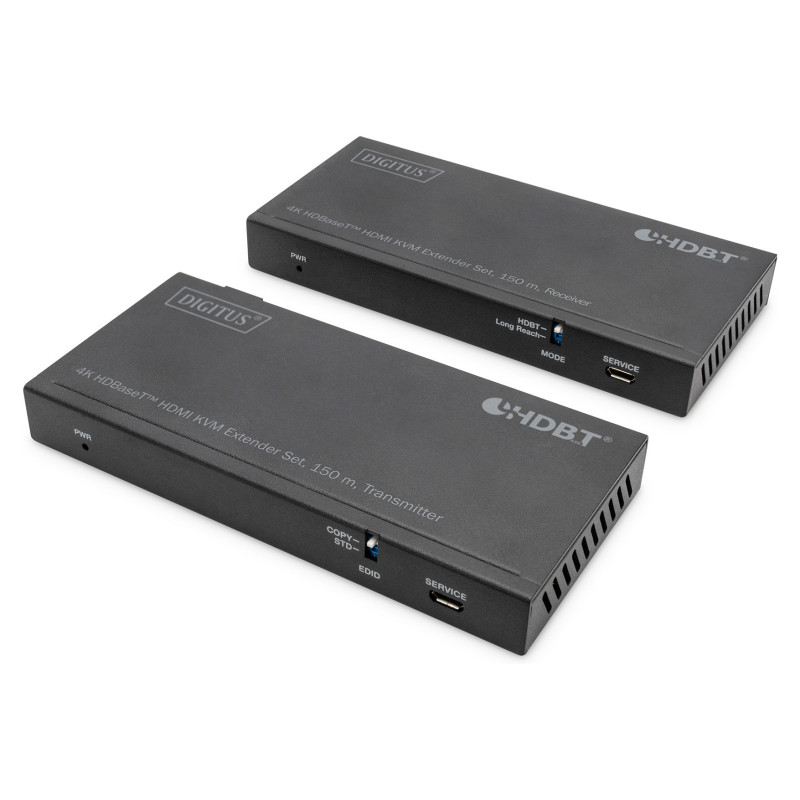

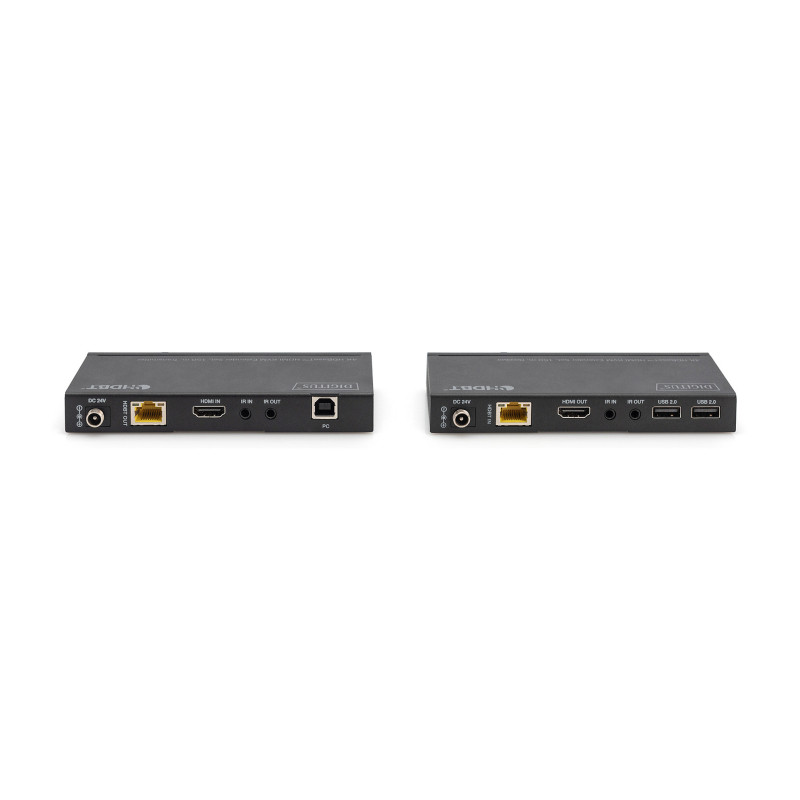

Digitus DS-55526 KVM extender

Digitus 4K HDBaseTTM 2.0 HDMI KVM extender set, 150 m. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A, HDMI version: 2.0b, USB data transfer rates: 480 Mbit/s. AC adapter output voltage: 24 V, AC adapter output current: 1 A, Power consumption (transmitter) (max): 13.2 W

The HDBaseTTM 2.0 Extender Set enables uncompressed and high-resolution AV signal transmission over long distances and offers KVM functionality (mouse & keyboard connection)

- Supports HDBaseTTM 2.0 via CAT6A/7/8 cable up to 100m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- 2x USB 2.0 ports on the receiver for connecting e.g. webcam, data carrier, touch panel and mouse & keyboard.
- Touch display support / Touch panel back control
- PoC (Power over Cable) - only one unit requires an external power supply unit
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission

The HDBaseTTM 2.0 HDMI KVM Extender Set enables uncompressed and high-resolution AV signal transmission over long distances via a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be powered with an external power supply unit. The receiver unit has two USB 2.0 ports for connecting e.g. webcam, data carrier and mouse & keyboard. Touch displays are also supported; thanks to the touch panel back control, the signal source can also be controlled using finger gestures. Bi-directional IR transmission is also part of the scope of services.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 150 m
Cable types supported: Cat6a, Cat7, Cat8
Maximum refresh rate: 60 Hz
Product colour: Black
Material: Metal
Feature: Easy to install

Transmitter

Transmitter video port type: HDMI
Number of displays supported: 1
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1

Ports & interfaces

USB port type: USB Type-A
USB 2.0 ports quantity: 5
HDMI version: 2.0b
USB data transfer rates: 480 Mbit/s
RJ-45 ports quantity: 2

Power

AC adapter output voltage: 24 V
AC adapter output current: 1 A
Power consumption (transmitter) (max): 13.2 W

Weight & dimensions

Transmitter width: 14 cm
Transmitter depth: 6.5 cm
Transmitter height: 1.8 cm
Transmitter weight: 245 g
Receiver width: 14 cm
Receiver depth: 6.5 cm
Receiver height: 1.8 cm
Receiver weight: 249 g

Packaging data

Package width: 245 mm
Package depth: 185 mm
Package height: 75 mm
Package weight: 1.09 kg

Packaging content

Feature: AC adapter included
Cables included: IR, USB
Feature: Manual
Feature: Mounting bracket(s) included

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Technical details

Maximum resolution: 3840 x 2160 pixels
Package volume: 3399.38 cm³

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
