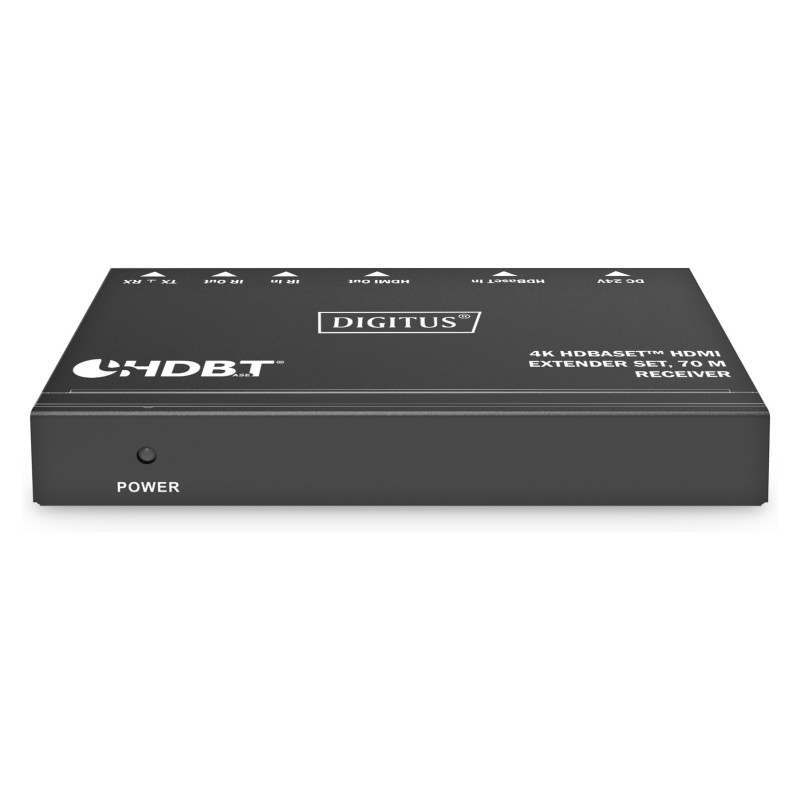

Digitus DS-55520 AV extender

Digitus 4K HDBaseTTM HDMI extender set, 70 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat7, Cat8. Connectivity technology: Wired, Serial interface type: RS-232. Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V, Power consumption (transmitter) (max): 20 W. Receiver dimensions (WxDxH): 115 x 65 x 17 mm, Receiver weight: 200 g, Transmitter dimensions (WxDxH): 115 x 65 x 17 mm. Quantity per pack: 2 pc(s), Package width: 215 mm, Package depth: 155 mm

The HDBaseTTM HDMI Extender Set enables uncompressed signal transmission of high-resolution AV signals over long distances

- Supports HDBaseTTM 1.0 via CAT6/7/8 cable up to 70 m
- Supports 4K2K/30Hz (24bit)
- Maximum transmission distance (UHD 4K/30Hz, CAT6 or higher): 40 m
- Maximum transmission distance (Full HD, 1080p, CAT6 or higher): 70 m
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Bi-directional IR signal transmission
- Bi-directional RS232 signal transmission
- HDCP 2.2 / 1.4
- Video bandwidth: 10.2 Gbps

The HDBaseTTM Extender Set extends Full HD AV signals to a distance of up to 70 m, 4K/30Hz signals can be extended to a distance of up to 40 m via a CAT6 (or higher) network cable. Thanks to PoC (Power over Cable), only one unit needs to be supplied with power via an external power supply unit. The scope of services also includes bi-directional IR and RS232 signal transmission.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6, Cat7, Cat8
Maximum transfer distance: 70 m
Maximum refresh rate: 30 Hz
Feature: Bidirectional
Feature: Electrostatic Discharge (ESD) protection
LED indicators: Yes
Supported video modes: 1080i, 1080p, 2160i, 2160p
Bandwidth: 10.2 Gbit/s
Feature: HDCP
Material: Metal
Feature: Wall mountable
HDCP version: 1.4/2.2
Product colour: Black

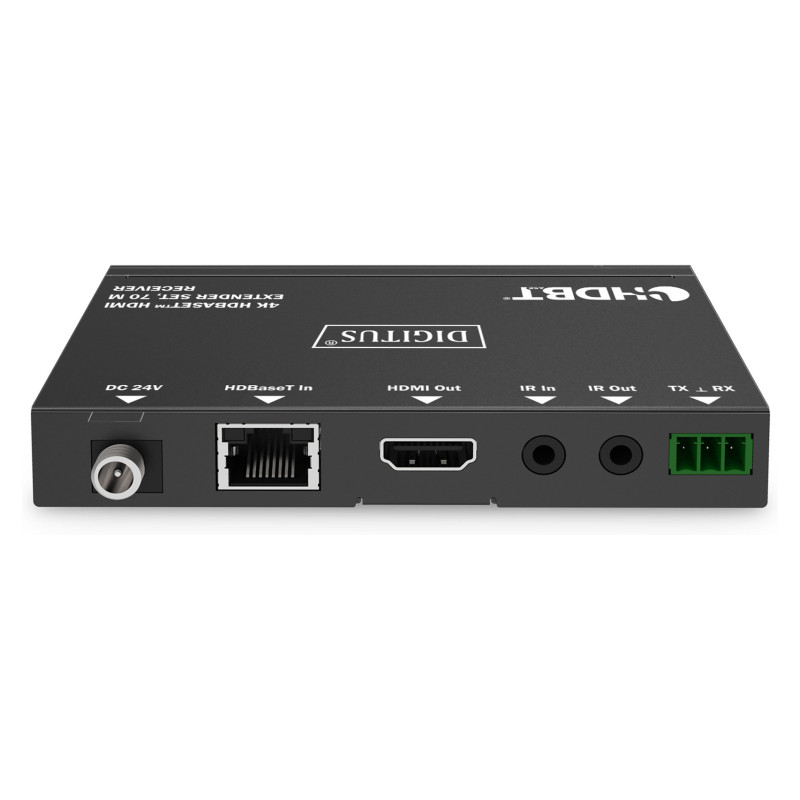

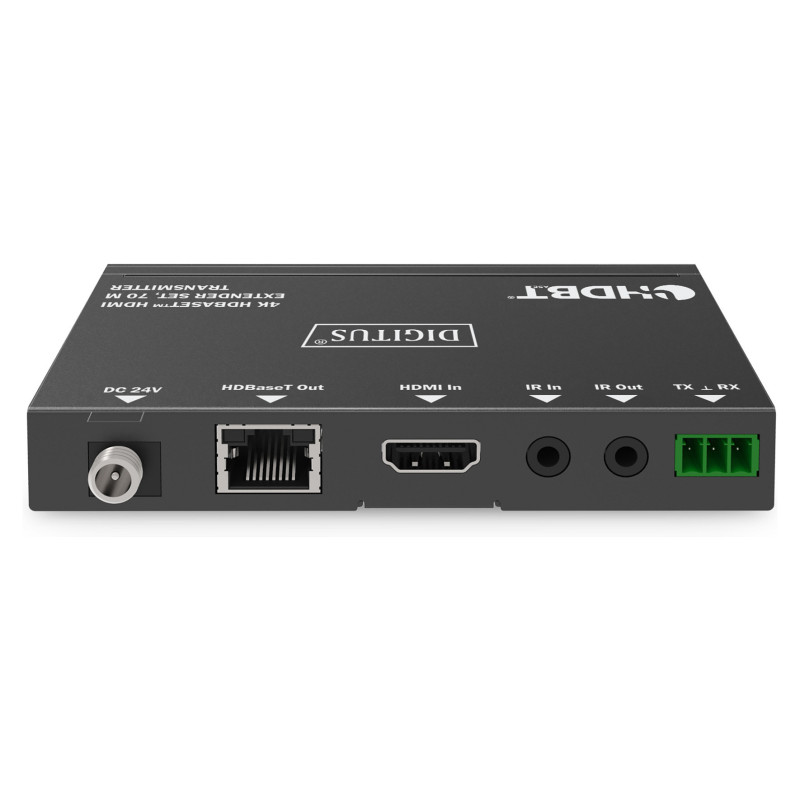

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
Serial ports quantity: 2
Serial interface type: RS-232
Remote (IR) input: 2
Remote (IR) output: 2
Feature: DC-in jack

Power

Operating voltage (transmitter): 24 V
Operating voltage (receiver): 24 V
Power consumption (transmitter) (max): 20 W
Power consumption (receiver) (max): 20 W
Feature: External power adapter

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Receiver dimensions (WxDxH): 115 x 65 x 17 mm
Receiver weight: 200 g
Transmitter dimensions (WxDxH): 115 x 65 x 17 mm
Transmitter weight: 200 g

Packaging data

Quantity per pack: 2 pc(s)
Package width: 215 mm
Package depth: 155 mm
Package height: 70 mm
Package weight: 825 g

Packaging content

Feature: AC adapter included
Cables included: IR
Feature: Manual
Feature: Mounting brackets included

Technical details

Country of origin: China
Package volume: 2332.75 cm³

Logistics data

UK Trade Tariff code: 85176200
