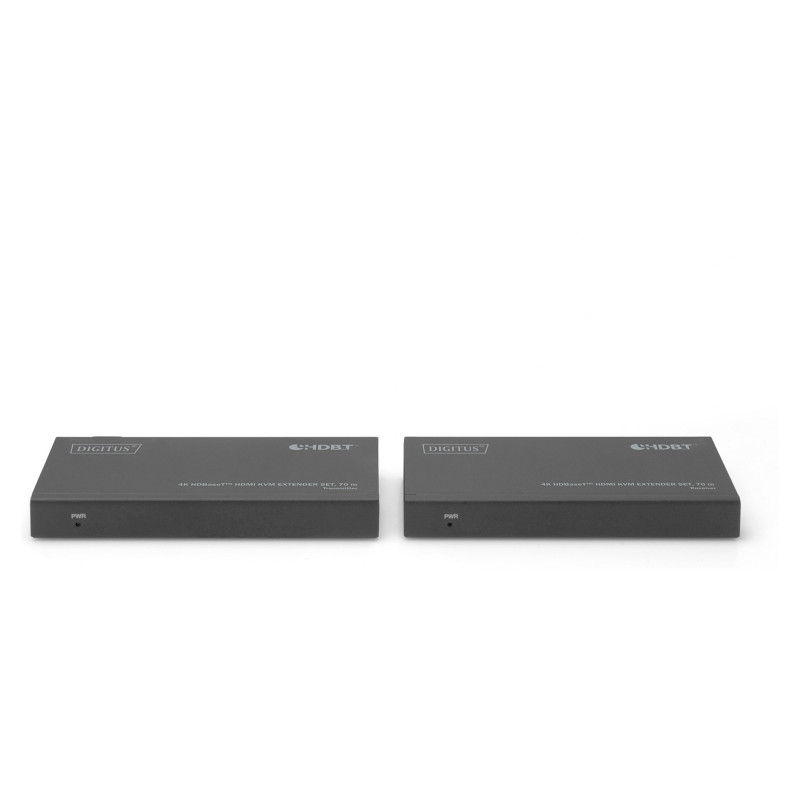

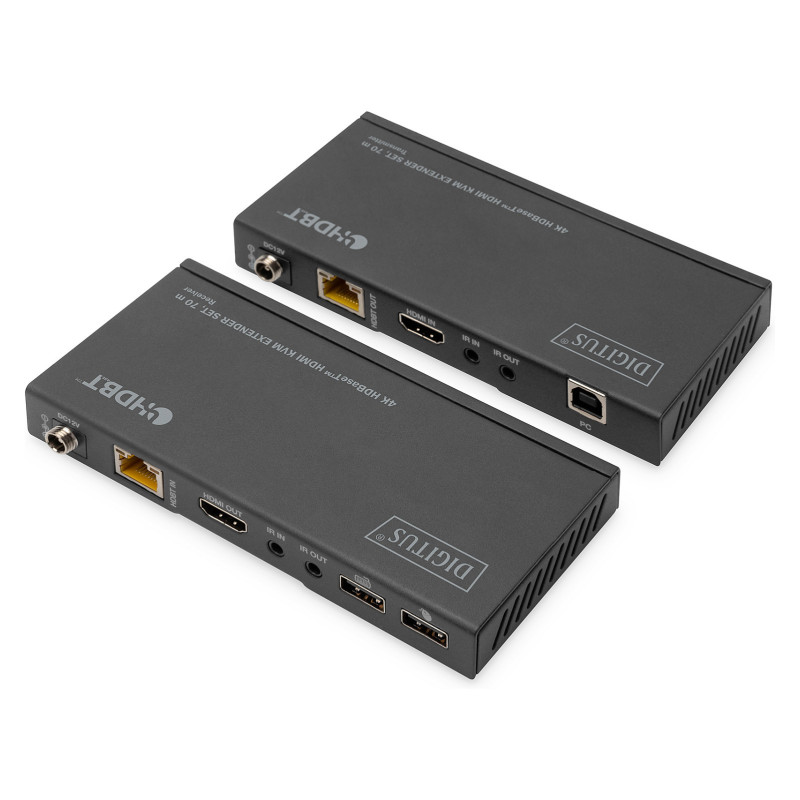

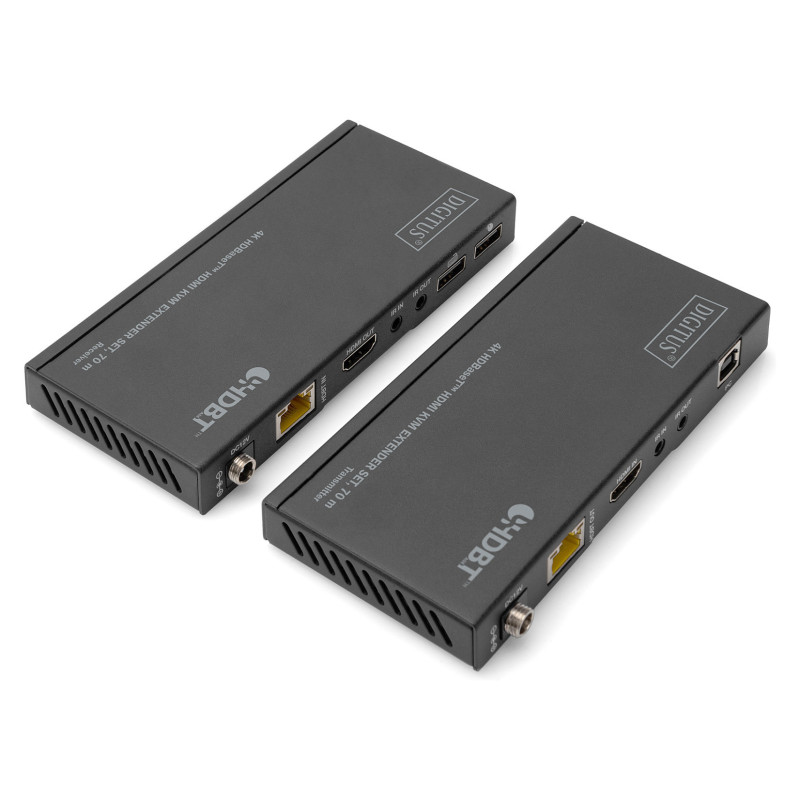

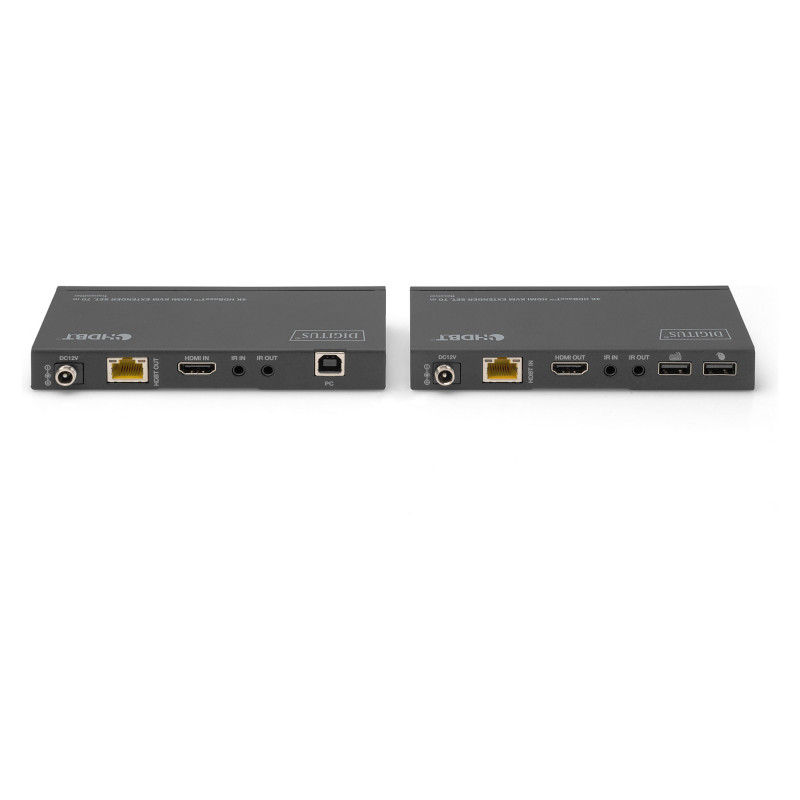

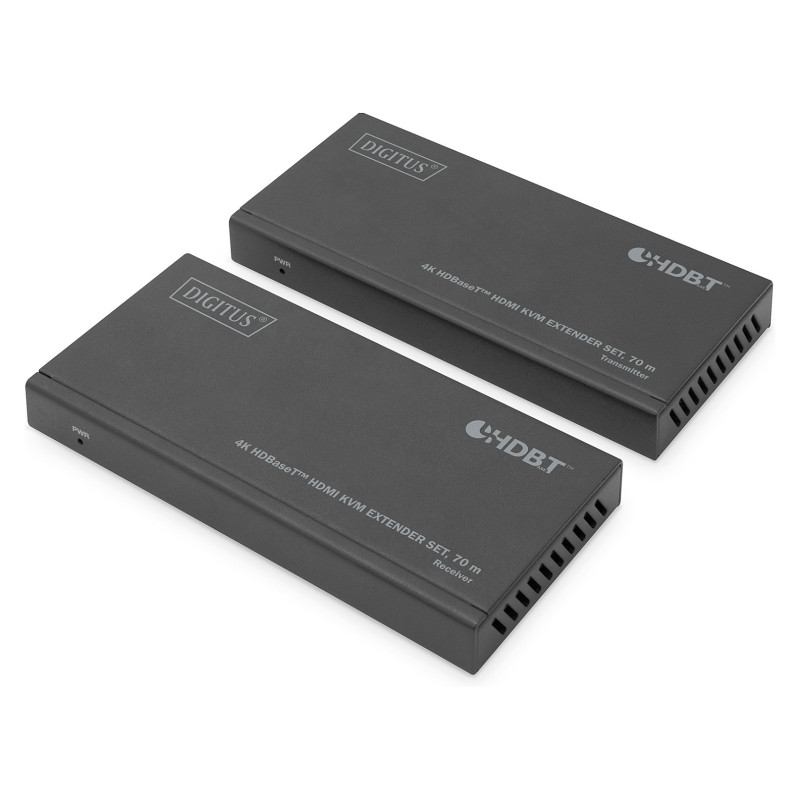

Digitus DS-55512 KVM extender

Digitus 4K HDBaseTTM HDMI KVM extender set, 70 m. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 70 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A. AC adapter output voltage: 12 V, AC adapter output current: 1 A, Power consumption (transmitter) (max): 6.6 W

Extends the HDMI signal up to 70 m and offers the option of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseTTM 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for simple and flexible installations
- Robust metal housing

The HDBaseTTM HDMI KVM Extender Set enables signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended up to 40 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. Bidirectional IR transmission and KVM functionality (USB 1.1) for connecting a mouse and keyboard are also included.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 70 m
Cable types supported: Cat6, Cat6a, Cat7, Cat8
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Black
Material: Metal
Feature: Plug and Play
LED indicators: Yes

Transmitter

Transmitter video port type: HDMI
RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1

Ports & interfaces

USB port type: USB Type-A
RJ-45 ports quantity: 2
USB 1.1 ports quantity: 2

Power

AC adapter output voltage: 12 V
AC adapter output current: 1 A
Power consumption (transmitter) (max): 6.6 W
Power consumption (receiver) (max): 6.6 W

Weight & dimensions

Transmitter width: 14 cm
Transmitter depth: 6.5 cm
Transmitter height: 1.8 cm
Transmitter weight: 224 g
Receiver width: 14 cm
Receiver depth: 6.5 cm
Receiver height: 1.8 cm
Receiver weight: 227 g

Packaging data

Package width: 245 mm
Package depth: 185 mm
Package height: 75 mm
Package weight: 950 g

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Manual
Feature: Mounting bracket(s) included

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Technical details

Maximum resolution: 1920 x 1080 pixels
Package volume: 3399.38 cm³

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 84733080
