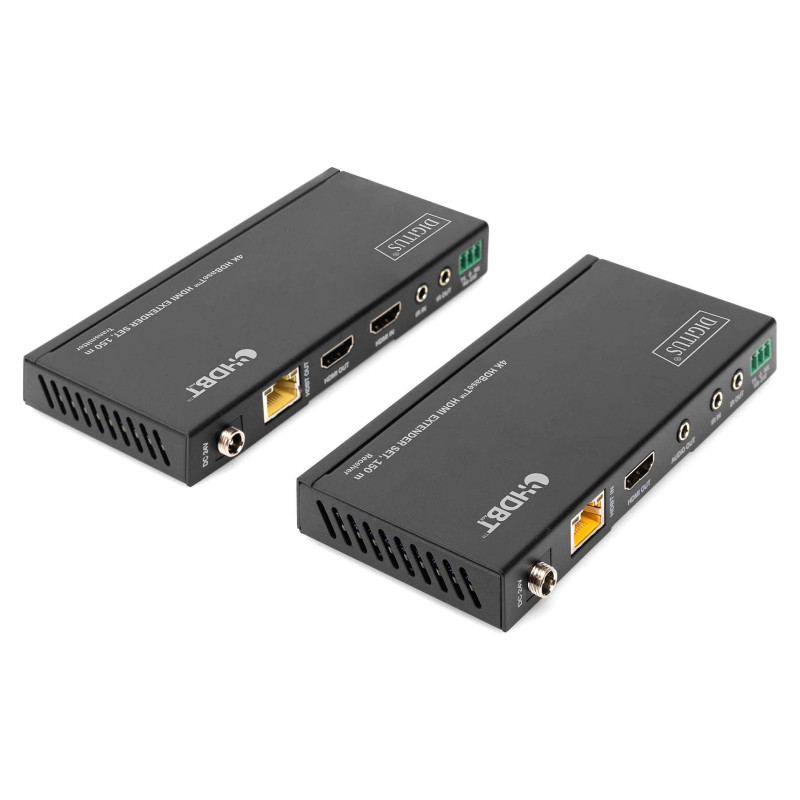

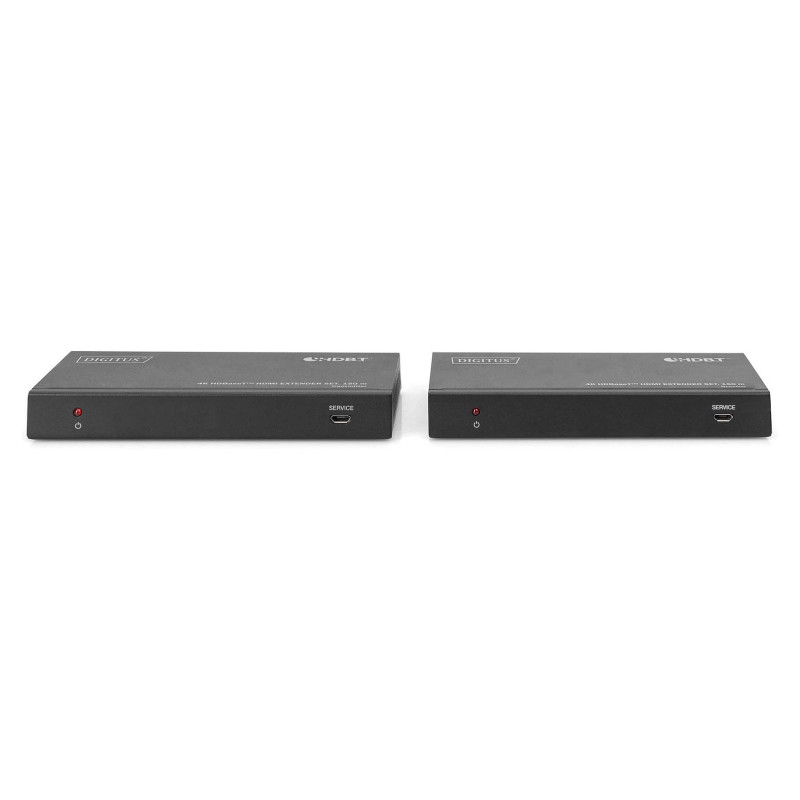

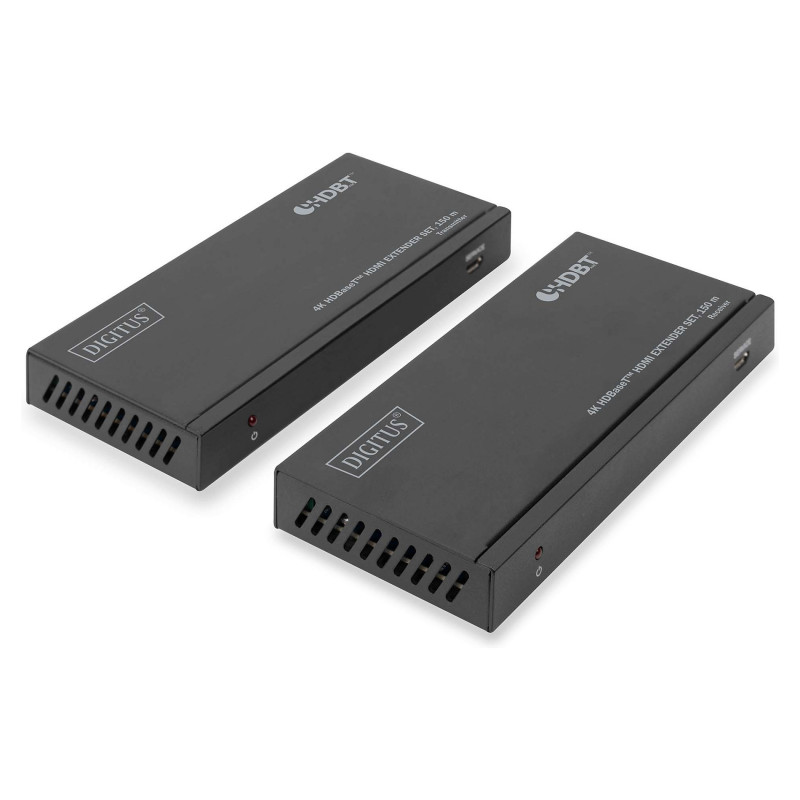

Digitus DS-55508 AV extender

Digitus 4K HDBaseTTM HDMI extender set, 150 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat7, Cat8. Connectivity technology: Wired, USB connector type: Micro-USB, Serial interface type: RS-232. Operating voltage: 24 V, Input current: 1 A, Power consumption (typical): 9.36 W. Receiver dimensions (WxDxH): 65 x 140 x 18 mm, Receiver weight: 155 g, Transmitter dimensions (WxDxH): 65 x 140 x 18 mm. Quantity per pack: 1 pc(s), Package width: 245 mm, Package depth: 185 mm

The HDBaseTTM HDMI Extender Set enables uncompressed and high-resolution signal transmission over long distances

- Supports HDBaseTTM 1.0 via CAT6A/7/8 cable up to 100 m
- Supports 4K2K/60Hz (4:4:4)
- Maximum transmission distance (UHD 4K2K): 120 m
- Maximum transmission distance (Full HD 1080p): 150 m
- Video bandwidth: 18 Gbps
- HDMI loop-out on the transmitter unit
- PoC (Power over Cable) - only one unit requires an external power supply unit
- HDCP 2.2 / 1.4
- HDR, HDR10+, Dolby Vision, HLG
- RS232 signal transmission

The HDBaseTTM HDMI Extender Set enables uncompressed and high-resolution signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 150 m (Full HD). 4K signals can be extended up to 120 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. RS232 and bidirectional IR transmission are also included in the scope of services. Thanks to an HDMI loop-out on the transmitter unit, a local monitor can be connected to control the output on the receiver.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat5e, Cat6, Cat7, Cat8
Maximum transfer distance: 150 m
Feature: Bidirectional
Feature: Electrostatic Discharge (ESD) protection
Bandwidth: 18 Gbit/s
Feature: HDCP
Material: Metal
Feature: Consumer Electronics Control (CEC) support
Feature: Wall mountable
Feature: Plug and Play
HDCP version: 1.4/2.2
Product colour: Black

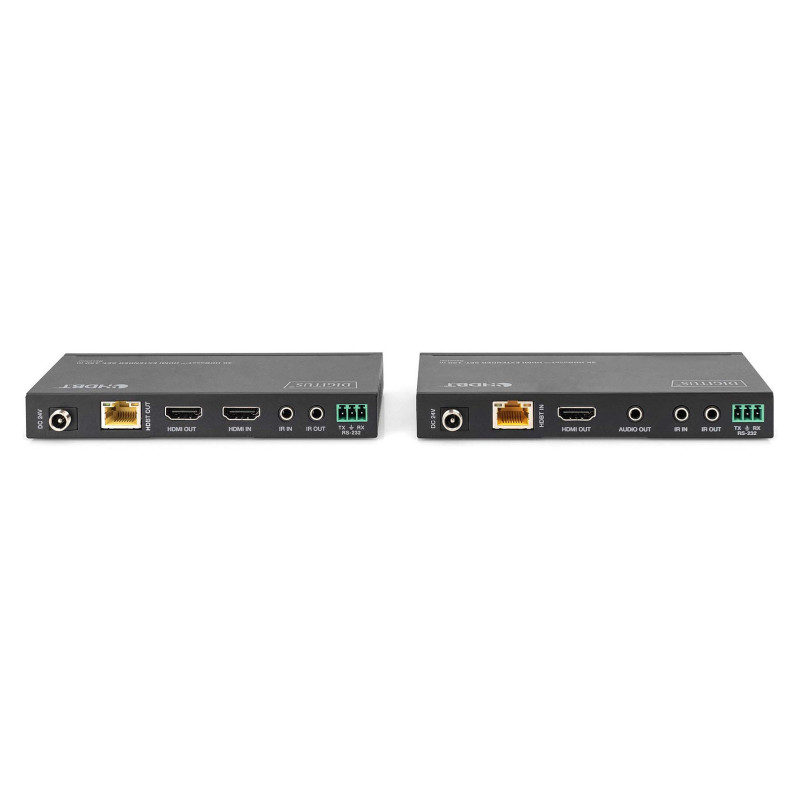

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
USB ports quantity: 2
USB connector type: Micro-USB
RS-232 input ports: 1
RS-232 output ports: 1
Serial ports quantity: 2
Serial interface type: RS-232
Feature: 3.5 mm (1/8-inch) in
Feature: 3.5 mm (1/8-inch) out
Remote (IR) input: 2
Remote (IR) output: 2
Feature: DC-in jack

Power

Operating voltage: 24 V
Input current: 1 A
Power consumption (typical): 9.36 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Receiver dimensions (WxDxH): 65 x 140 x 18 mm
Receiver weight: 155 g
Transmitter dimensions (WxDxH): 65 x 140 x 18 mm
Transmitter weight: 160 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 245 mm
Package depth: 185 mm
Package height: 75 mm
Package weight: 1 kg
Package type: Box

Technical details

Country of origin: China
Package volume: 3399.38 cm³

Logistics data

UK Trade Tariff code: 85176200
