Digitus DS-55507 AV extender

Digitus HDMI KVM IP Extender Set. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Maximum transfer distance: 150 m. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage: 12 V, Input current: 1 A, Power consumption (transmitter) (max): 1.4 W. Receiver dimensions (WxDxH): 67 x 91.5 x 17.5 mm, Receiver weight: 150 g, Transmitter dimensions (WxDxH): 67 x 91.5 x 17.5 mm. Quantity per pack: 1 pc(s), Package width: 185 mm, Package depth: 135 mm

Extends the HDMI signal up to 150 m and offers KVM functionality for controlling the signal source via keyboard/mouse on the receiver unit

- Extends the maximum length for HDMI cables to up to 150 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure or using commercially available network switches (IP connection)
- Supports video resolutions up to: Full-HD (1920x1200/60 Hz, 4:4:4)
- KVM functionality for connecting mouse & keyboard
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- IR transmission
- Compact design for simple and flexible installations
- Robust metal housing

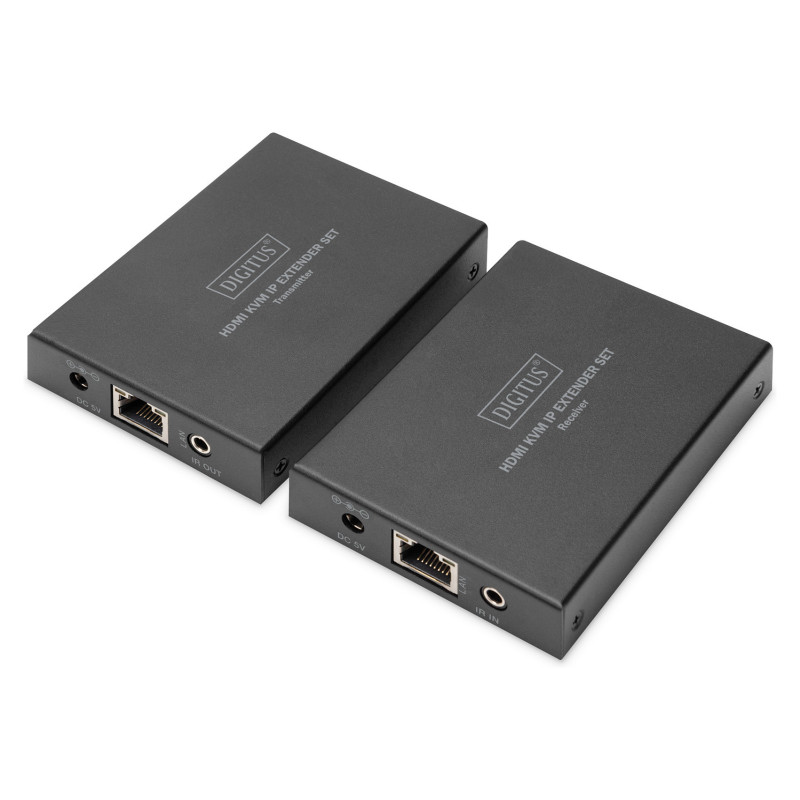

The HDMI KVM IP Extender Set consists of a transmitter unit (local location) and a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 150 m via a network cable (CAT 5e or higher) (point-to-point connection). The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure or using standard IP network switches (IP connection). The highest supported video resolution is Full HD (1920x1200/60 Hz, 4:4:4). It also allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit. It is perfect for industrial, commercial and public applications.

Features

Type: AV transmitter & receiver
Maximum resolution: 1920 x 1200 pixels
Maximum transfer distance: 150 m
Feature: Electrostatic Discharge (ESD) protection
Bandwidth: 6.75 Gbit/s
Video compression formats: H.265
Material: Metal
Feature: Plug and Play
HDCP version: 1.4

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
HDMI version: 1.4
USB ports quantity: 3
USB version: 1.1
USB connector type: USB Type-A, USB Type-B
Remote (IR) input: 1
Remote (IR) output: 1

Power

Operating voltage: 12 V
Input current: 1 A
Power consumption (transmitter) (max): 1.4 W
Power consumption (receiver) (max): 1.7 W

Operational conditions

Operating temperature (T-T): -10 - 50 °C

Weight & dimensions

Receiver dimensions (WxDxH): 67 x 91.5 x 17.5 mm
Receiver weight: 150 g
Transmitter dimensions (WxDxH): 67 x 91.5 x 17.5 mm
Transmitter weight: 155 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 185 mm
Package depth: 135 mm
Package height: 75 mm
Package weight: 67.5 g
Package type: Box

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Manual

Technical details

Country of origin: China
Package volume: 1873.12 cm³

Logistics data

UK Trade Tariff code: 85176200
