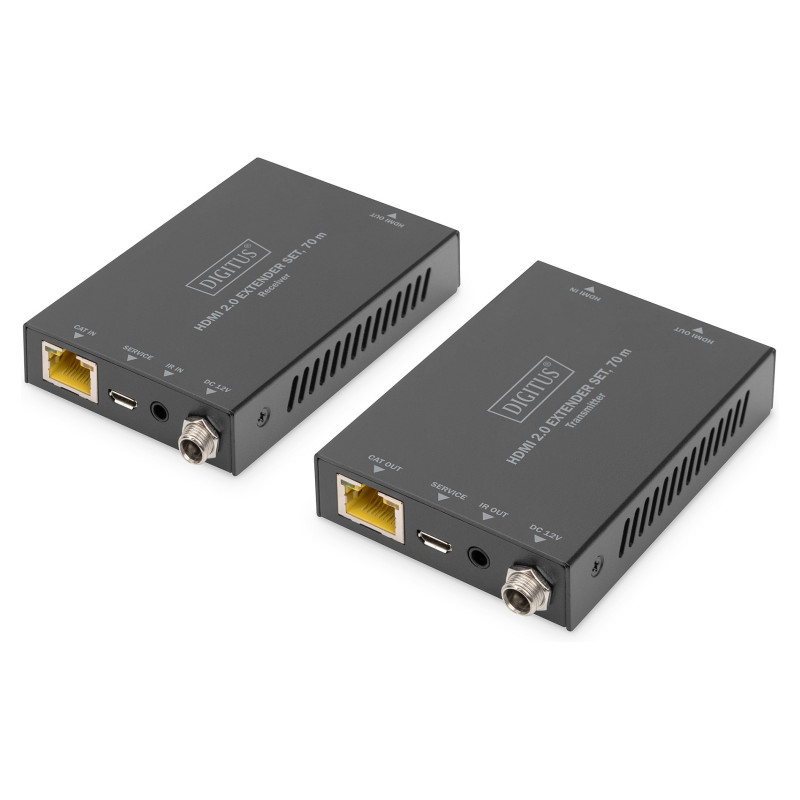

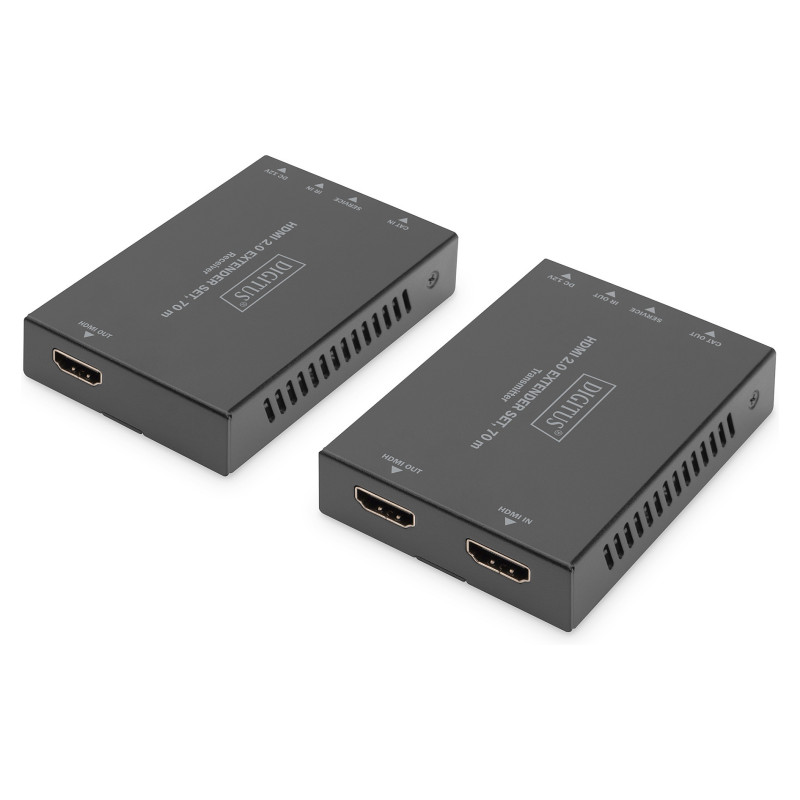

Digitus DS-55506 AV extender

Digitus HDMI extender set, 4K/60Hz, 70 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat6a, Cat7, Cat8. Connectivity technology: Wired, USB connector type: Micro-USB. Operating voltage: 12 V, Input current: 1 A, Power consumption (typical): 3.84 W. Width: 61 mm, Depth: 88 mm, Height: 18 mm. Quantity per pack: 1 pc(s), Package width: 200 mm, Package depth: 113 mm

Enables HDMI signal transmission over up to 70 m in UHD resolution (4K2K/60 Hz, 4:4:4) via a CAT cable

- HDMI 2.0
- 18 Gbps video bandwidth
- Supports 4K2K/60 Hz, 4:4:4
- HDCP 2.2 / 1.4
- Maximum transmission distance: 70 m
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Automatic EDID detection
- HDR support

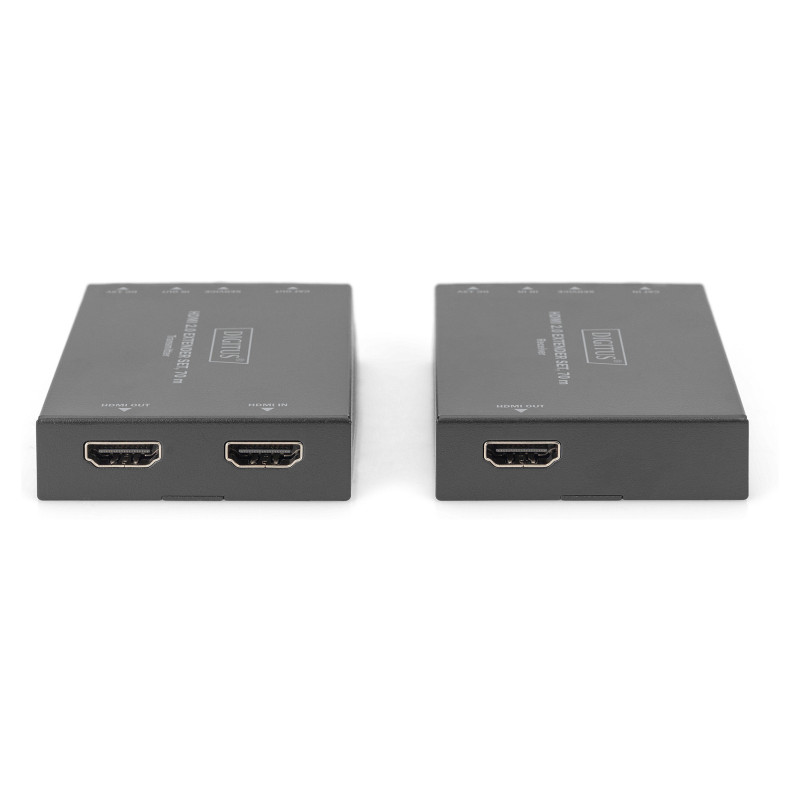

- HDMI loop-out / output - connection of a local monitor to the source device
- Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cables

The DIGITUS HDMI Extender Set enables HDMI signal transmission over a distance of up to 70 m (4K/30Hz). The extender set supports UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) via a CAT 6/7/8 cable (60 m distance). Thanks to PoC, only one unit needs to be powered with an external power supply unit. HDR, HDCP support and automatic EDID detection are also part of the performance spectrum. A local monitor can be connected via the HDMI loop-out on the transmitter unit to monitor the output on the receiver.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6, Cat6a, Cat7, Cat8
Maximum transfer distance: 70 m
Feature: EDID management
Bandwidth: 18 Gbit/s
Feature: HDCP
Material: Metal
Feature: Wall mountable
Feature: Plug and Play
HDCP version: 2.2
Product colour: Black

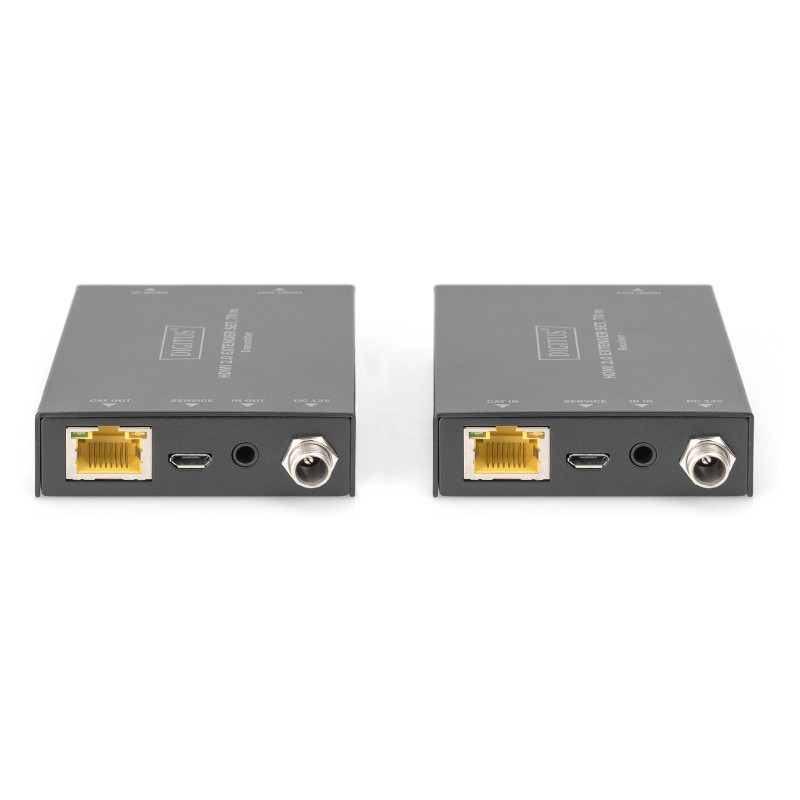

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 2
HDMI version: 2.0
USB ports quantity: 2
USB version: 2.0
USB connector type: Micro-USB
Remote (IR) input: 1
Remote (IR) output: 1

Power

Operating voltage: 12 V
Input current: 1 A
Power consumption (typical): 3.84 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 61 mm
Depth: 88 mm
Height: 18 mm
Weight: 160 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 200 mm
Package depth: 113 mm
Package height: 75 mm
Package weight: 626.667 g
Package type: Box

Packaging content

Feature: AC adapter included
Feature: Manual
Feature: Mounting brackets included
Feature: Mounting kit

Technical details

Country of origin: China
Package volume: 1695 cm³

Logistics data

UK Trade Tariff code: 85176200
