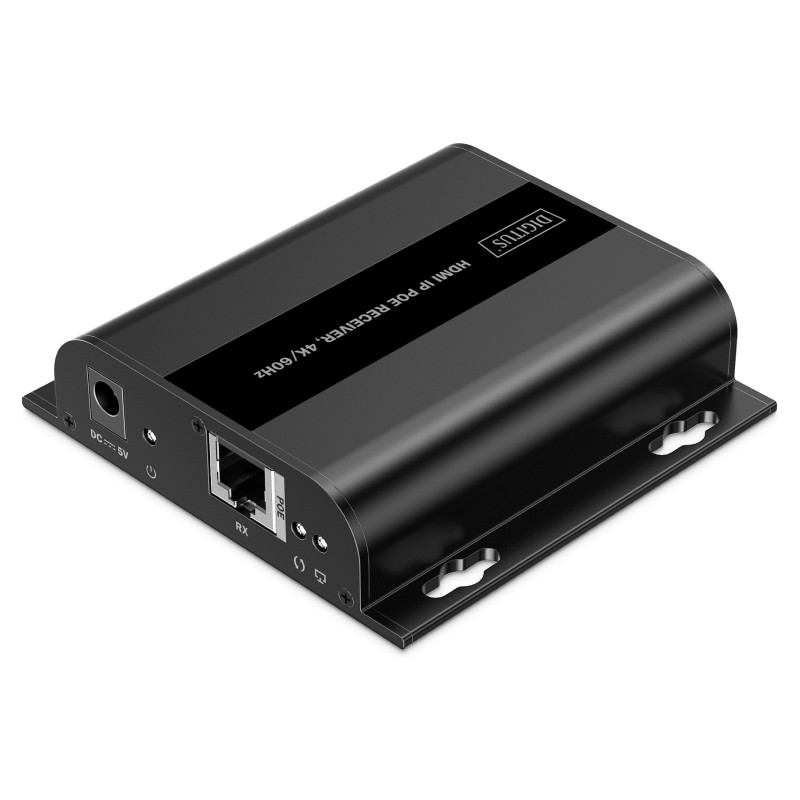

Digitus DS-55354 AV extender

Digitus HDMI IP PoE receiver, 4K/60Hz. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, USB connector type: Micro-USB. Power source type: DC, Output current: 1 A, Operating voltage (receiver): 5 V. Receiver dimensions (WxDxH): 94 x 97 x 24 mm, Receiver weight: 164 g. Package width: 117 mm, Package depth: 157 mm, Package height: 77 mm

Expand the HDMI IP Extender Set (DS-55353) with additional receiver units (253 max.) to play your AV content on multiple displays at the same time

- Expandable via IP: Expand the HDMI IP Extender Set (DS-55353) to up to 253 receivers (displays) - point-to-multipoint connection
- Flexible & powerful over IP: Use of existing 1G network infrastructure or use of additional 1G network switches for signal transmission at unlimited distance possible - cascading
- Outstanding image quality: transmission in UHD of up to 4K/60Hz (4096x2160p) with low latency of 150-220 ms
- Flexible installation thanks to PoE support: Complete power supply via PoE network switch - no external power supply unit required
- IR interface enables remote control of the input source from the output screen
- Supports CAT6 (or higher) network cables
- Suitable for wall mounting

Expand your existing HDMI IP Extender Set (DS-55353) with additional receiver units and bring your AV content to up to 253 displays simultaneously - ideal for digital signage, conference rooms or large-scale presentations. Thanks to IP-based signal transmission via an existing 1G network infrastructure or additional 1G network switches, you can distribute content flexibly and over unlimited distances. The cascading option ensures maximum scalability and easy integration into your system. The receiver is powered via a PoE network switch, no external power supply is required, allowing for flexible installation. Enjoy razor-sharp images in UHD resolution of up to 4K/60Hz (4096x2160p) with a minimum latency of just 150-220 ms. The integrated IR interface enables remote control of the input source directly from the output screen, allowing you to conveniently manage your content. For a stable and reliable connection, we recommend the use of CAT6 or higher quality network cables. The receiver is also suitable for wall mounting, allowing for space-saving installation. Increase the efficiency of your AV solution with the HDMI IP Receiver 4K/60Hz - for impressive picture quality and maximum flexibility.

Features

Type: AV transmitter & receiver
Maximum resolution: 4096 x 2160 pixels
Cable types supported: Cat6
Maximum transfer distance: 200 m
Maximum refresh rate: 60 Hz
Feature: Electrostatic Discharge (ESD) protection
LED indicators: Yes
Supported video modes: 2160p
Bandwidth: 18 Gbit/s
Feature: HDCP
Material: Metal
Feature: Wall mountable
HDCP version: 1.4/2.2
Product colour: Black

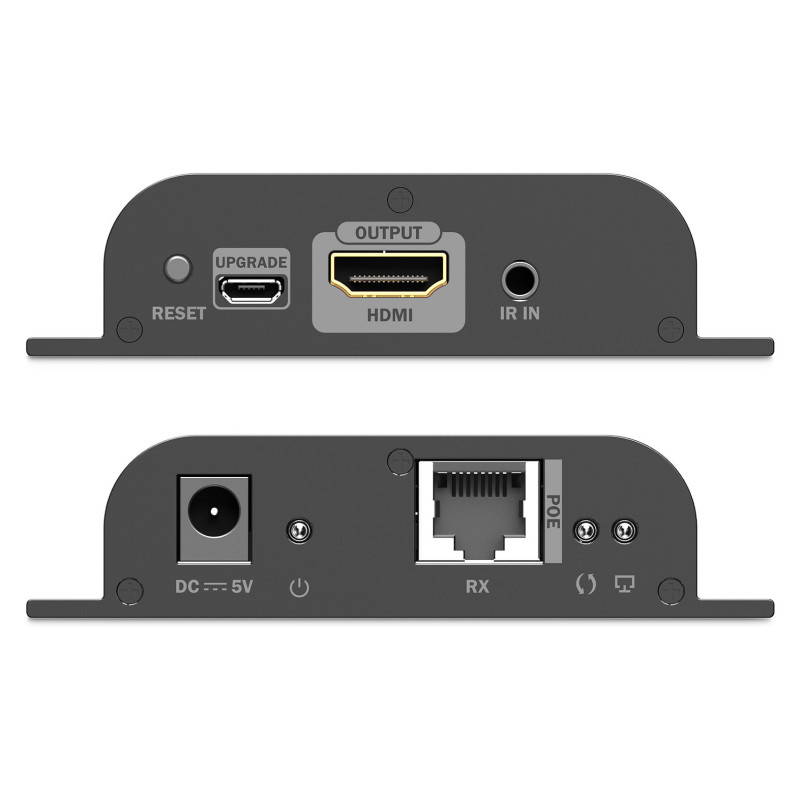

Ports & interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
Number of HDMI outputs: 1
HDMI version: 2.0
USB ports quantity: 1
USB connector type: Micro-USB
Feature: 3.5 mm (1/8-inch) in
Remote (IR) input: 1
Feature: DC-in jack

Power

Power source type: DC
Output current: 1 A
Operating voltage (receiver): 5 V
Power consumption (receiver) (max): 2.5 W
Feature: External power adapter
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Weight & dimensions

Receiver dimensions (WxDxH): 94 x 97 x 24 mm
Receiver weight: 164 g

Packaging data

Package width: 117 mm
Package depth: 157 mm
Package height: 77 mm
Package weight: 330 g

Packaging content

Feature: AC adapter included
Cables included: IR
Feature: Quick start guide
