Digitus DS-55349 KVM extender

Digitus HDMI Fiber KVM IP Receiver, 4K/60Hz. Type: Receiver, Connectivity technology: Wired, Maximum transfer distance: 40000 m. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A/Micro-USB. AC adapter output voltage: 5 V, AC adapter output current: 2 A, Power consumption (receiver) (max): 7.5 W. Receiver width: 10.3 cm, Receiver depth: 10.6 cm, Receiver height: 2.6 cm

Expand the HDMI Fiber KVM IP Extender Set (DS-55348) with additional receiver units (253 max.) to play your AV content on multiple displays simultaneously

- Expandable via IP: Expand the HDMI Fiber KVM IP Extender Set (DS-55348) to up to 253 receivers (displays) - point-to-multipoint connection
- SFP modules available separately (not included) - LC Singlemode (SM): DN-81002, LC Multimode (MM): DN-81000
- Wide compatibility: Supports LC & SC-SFP modules as well as singlemode and multimode fiber optic cables
- Outstanding picture quality: transmission in UHD of up to 4K/60Hz (3840x2160p) with low latency of 80-140 ms
- KVM function - connection of mouse & keyboard to control the signal source
- Additional audio output: 3.5 mm stereo connection for separate audio transmission
- Max. Range: Singlemode (SM) up to 40 km, multimode (MM) up to 300 m (point-to-point connection)
- RS232 Pass Trough - Control of connected devices

The HDMI Fiber KVM IP Receiver is the ideal solution for professional AV applications where high-resolution content needs to be reproduced on multiple displays over long distances. In combination with the HDMI Fiber KVM IP Extender Set (DS-55348), this receiver enables a flexible point-to-multipoint connection with the option of integrating up to 253 receivers into the network. This makes the system perfect for digital signage, control rooms, conference environments or industrial applications that require reliable and low-latency video transmission. Thanks to the compatible SFP modules (LC Singlemode DN-81002, LC Multimode DN-81000) and the support of LC and SC SFP modules, the receiver can be used with various singlemode and multimode fiber optic cables. This ensures maximum flexibility and easy integration into existing network infrastructures. An outstanding feature of this receiver is the high-quality image transmission in 4K UHD at 60 Hz (3840x2160p). With a minimum latency of just 80 to 140 ms, content is transmitted with virtually no delay, which is particularly important in areas such as live broadcasts or interactive applications. In addition, the receiver has a KVM function that enables the connection of a mouse and keyboard to control the signal source directly. The 3.5 mm stereo connection, which enables separate audio transmission, provides even greater flexibility. This allows audio signals to be processed and output independently of the video signal.

Features

Type: Receiver
Connectivity technology: Wired
Maximum transfer distance: 40000 m
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black
Material: Metal
Feature: Easy to install
LED indicators: Yes
Feature: Electrostatic Discharge (ESD) protection

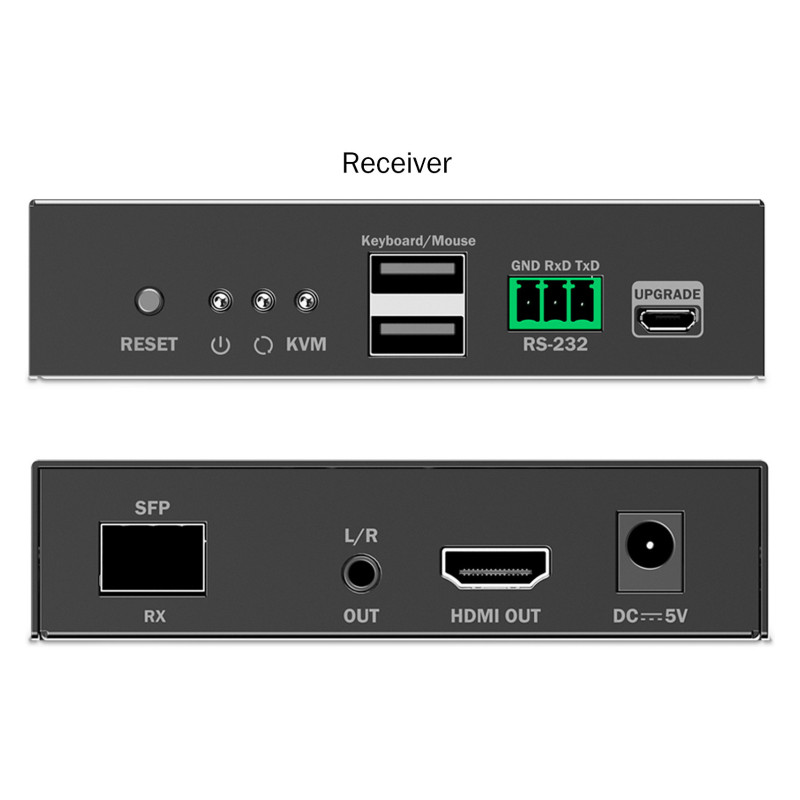

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
Receiver Micro-USB ports quantity: 1
Receiver USB Type-A ports quantity: 2

Ports & interfaces

USB port type: USB Type-A/Micro-USB
HDMI version: 2.0
RS-232 ports: 1
Installed SFP+ modules quantity: 1
USB 1.1 ports quantity: 2
Remote (IR) output: 1

Power

AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (receiver) (max): 7.5 W
Feature: DC-in jack

Weight & dimensions

Receiver width: 10.3 cm
Receiver depth: 10.6 cm
Receiver height: 2.6 cm
Receiver weight: 303 g

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Quick installation guide
Feature: Mounting bracket(s) included
Feature: Screws included

Operational conditions

Operating temperature (T-T): -10 - 50 °C

Other features

Feature: HDCP
HDCP version: 1.4/2.2
Bandwidth: 18 Gbit/s
