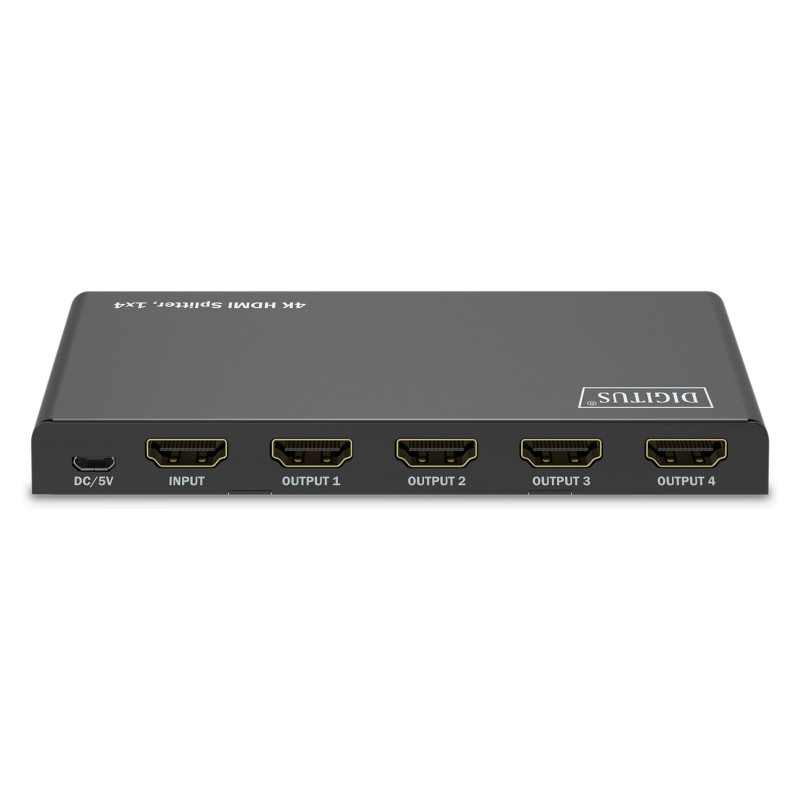

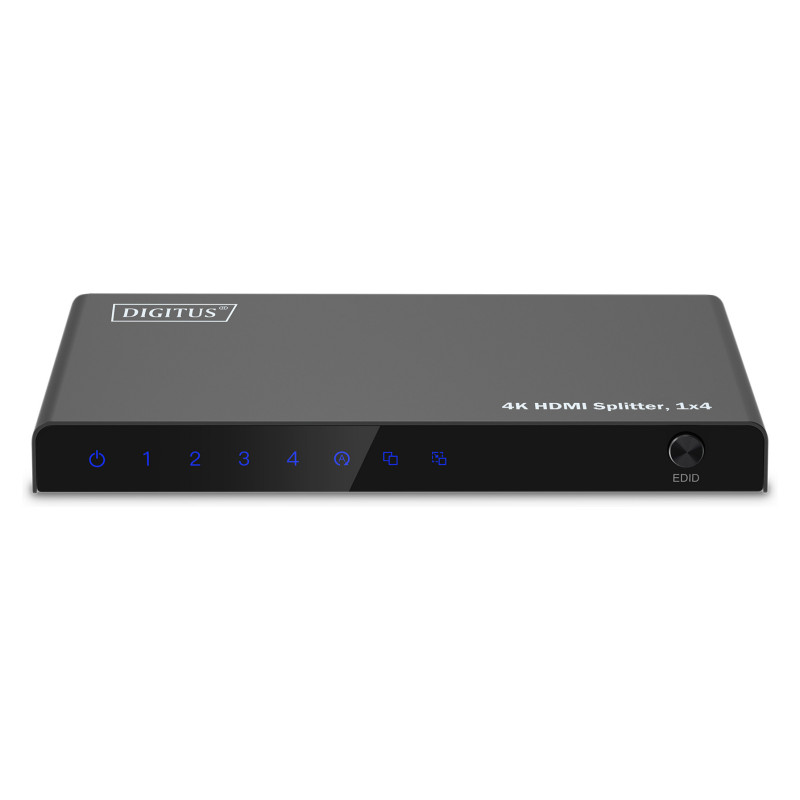

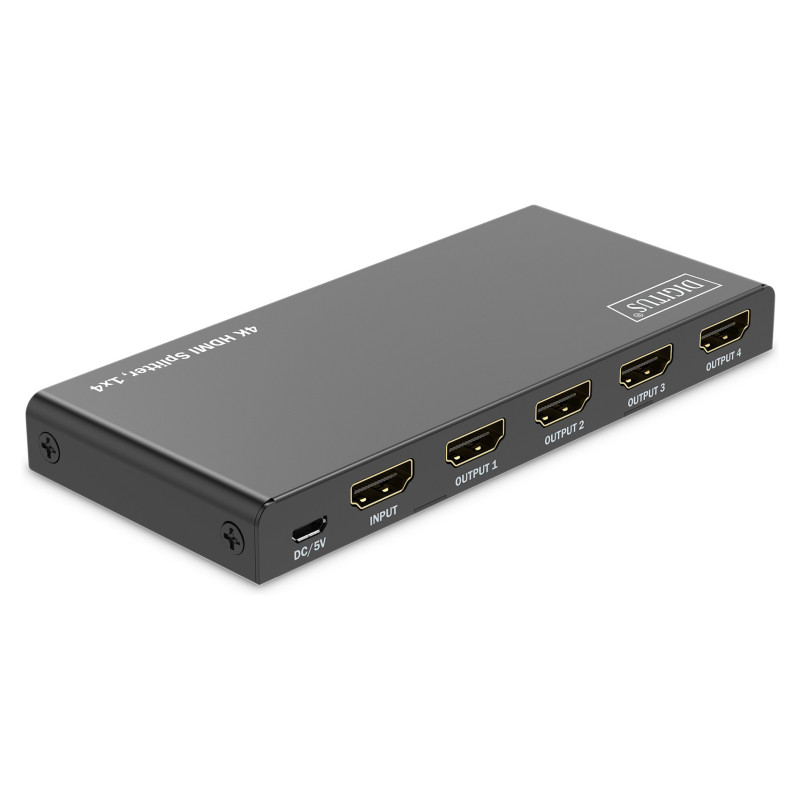

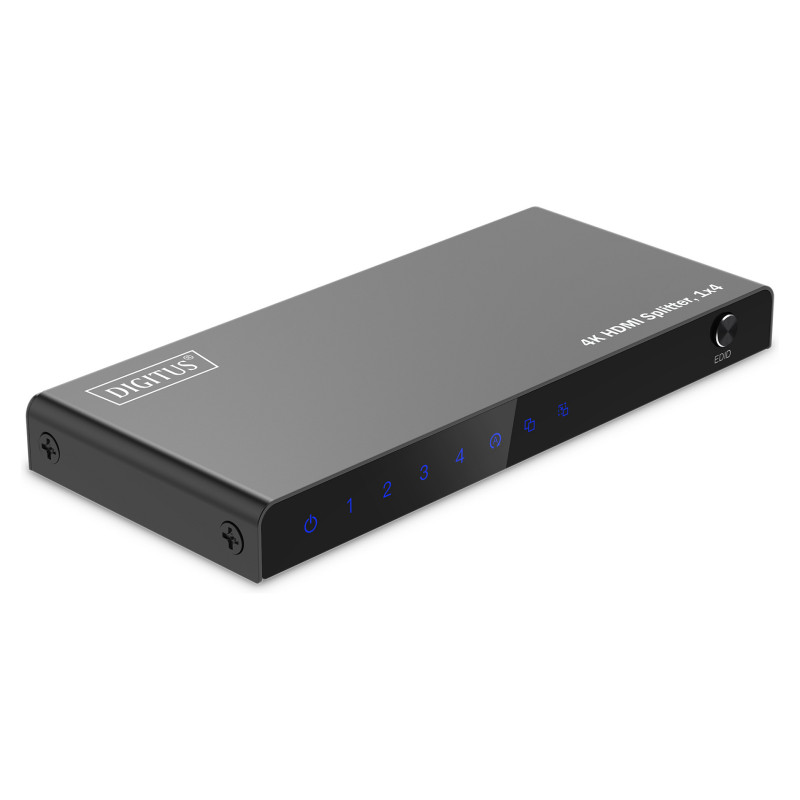

Digitus DS-55337 video splitter

Digitus 4K HDMI Splitter, 1x4. Video port type: HDMI, Video out: 4x HDMI, Connector(s): Micro USB. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. Power consumption (typical): 5 W. Width: 61 mm, Depth: 136 mm, Height: 14 mm. Quantity per pack: 1 pc(s), Package width: 123 mm, Package depth: 179 mm

The DIGITUS® HDMI Splitter splits/mirrors your HDMI device's audio and video signals on 4 TVs, monitors or projectors with a resolution of max. 4K / 60 Hz.

- Distributes an HDMI signal onto 4 TVs/monitors/projectors
- EDID management: Auto/Copy/Downscaler
- Power supply via Micro USB cable (included)
- Max. resolution: 4K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.2
- Supports Deep Color (36-bit)
- HDMI 2.0

The DIGITUS® HDMI Splitter splits your HDMI device's audio and video signals on 4 TVs, monitors or projectors with a resolution of UHD 4K / 60 Hz. Via EDID management, you can choose from 3 modes (Copy, Auto, Downscaler). The integrated Downscaler supports the display of 4K contents on Full HD displays. Additionally, 4K as well as Full HD displays can be operated simultaneously. Thanks to its Auto-EDID function, the splitter automatically recognizes the connected displays - no manual settings required. The video splitter is supplied with power via the Micro USB cable, e.g. via the source device or a USB charging adapter.

Ports & interfaces

Video port type: HDMI
Video out: 4x HDMI
HDMI version: 2.0
Video ports quantity: 4
Connector(s): Micro USB
Feature: Consumer Electronics Control (CEC) support
Feature: DC-in jack

Features

Product colour: Black
Housing material: Metal
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Colour depth: 36 bit
Maximum refresh rate: 60 Hz
HDCP version: 2.3
Feature: Extended display identification data (EDID)
Feature: High Dynamic Range (HDR) supported
Cable length: 0.75 m
Data transfer rate: 18 Gbit/s
Feature: HDCP
LED indicators: Status
Dolby technologies: DTS, Dolby Digital

Power

Power consumption (typical): 5 W

Weight & dimensions

Width: 61 mm
Depth: 136 mm
Height: 14 mm
Weight: 182 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 123 mm
Package depth: 179 mm
Package height: 45 mm
Package weight: 310 g

Packaging content

Cables included: USB

Operational conditions

Operating temperature (T-T): 0 - 70 °C
