Digitus DS-55335 video switch

Digitus 8K HDMI Switch, 4x1. Video port type: HDMI, USB port type: Micro-USB. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. Power consumption (typical): 5 W. Width: 71 mm, Depth: 188 mm, Height: 18 mm. Quantity per pack: 1 pc(s)

Expand your TV/monitor with additional HDMI connections - Convenient switching between signal sources without having to reconnect & additional audio extractor: Toslink / stereo (3.5 mm) for separate playback of the audio signal

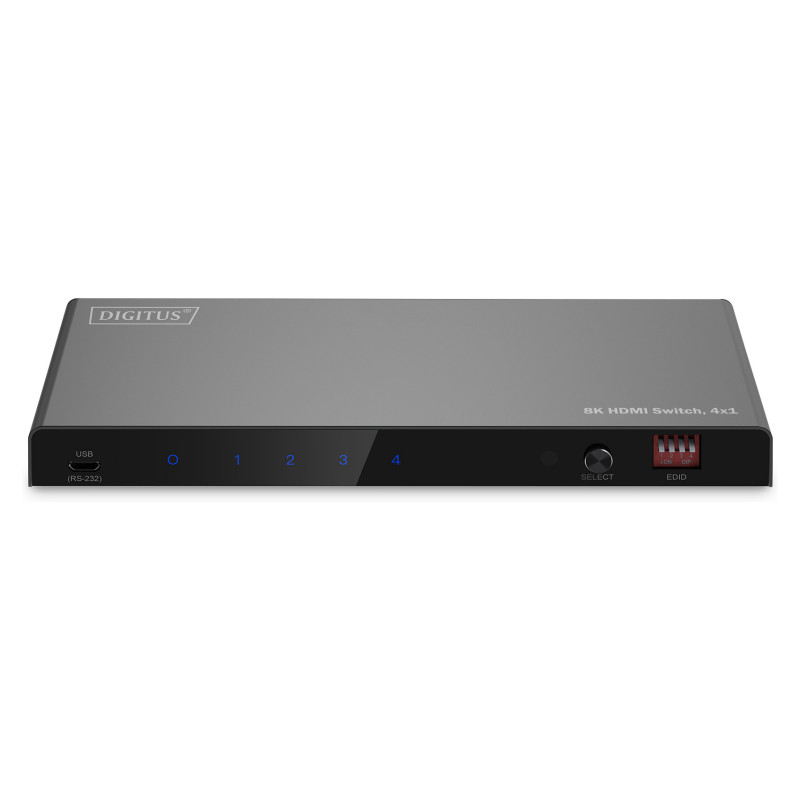

- Convenient switching between 4 signal sources via remote control, on the device itself or via automatic detection
- Audio extractor: Toslink / stereo (3.5 mm) - decoupling and separate playback of the audio signal
- EDID switch / management
- Max. Resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.3
- Supports CEC (Consumer Electronics Control)
- Supports Deep Color (36 bit)
- HDMI 2.1

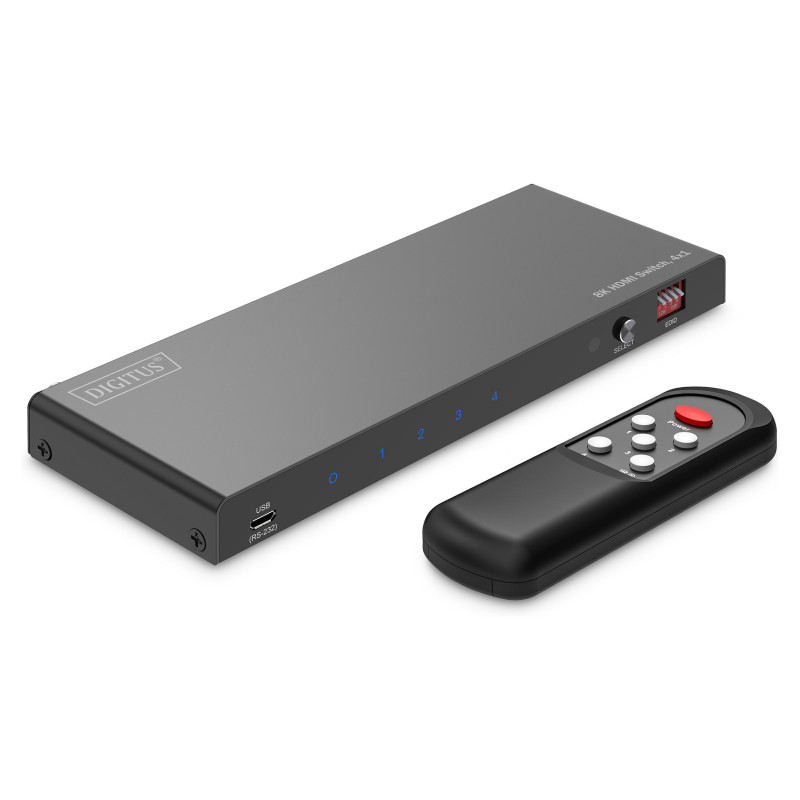

The DIGITUS® 8K HDMI Switch, 4x1 offers additional HDMI connections for your output display - 4 signal sources can be connected to the screen via just 1 HDMI connection. Audio signals can also be decoupled via Toslink or 3.5 mm stereo connection and played back separately. Conveniently switch between signal sources via remote control, on the device itself or via automatic detection.

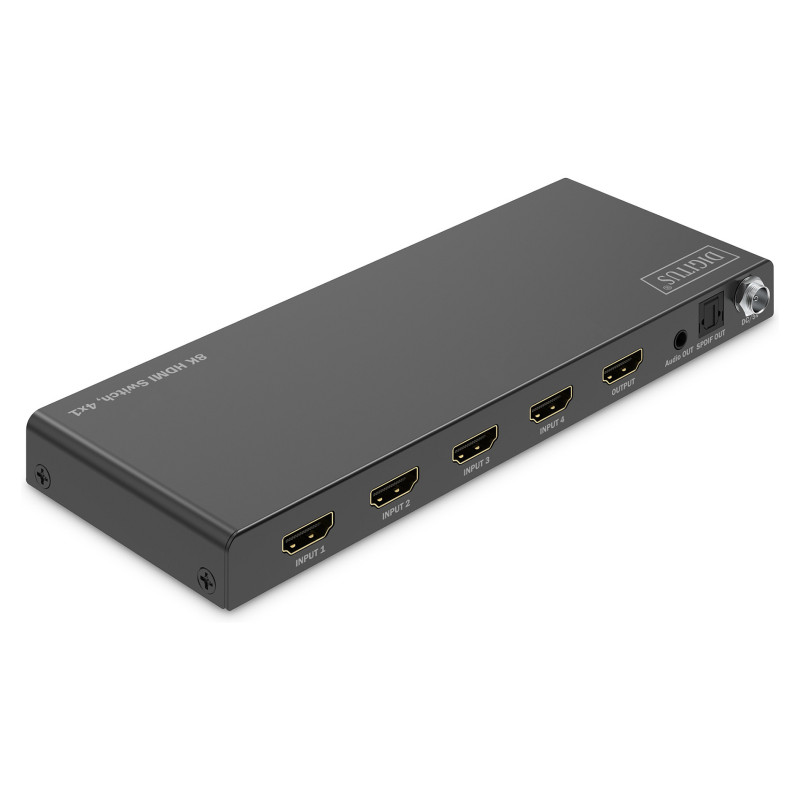

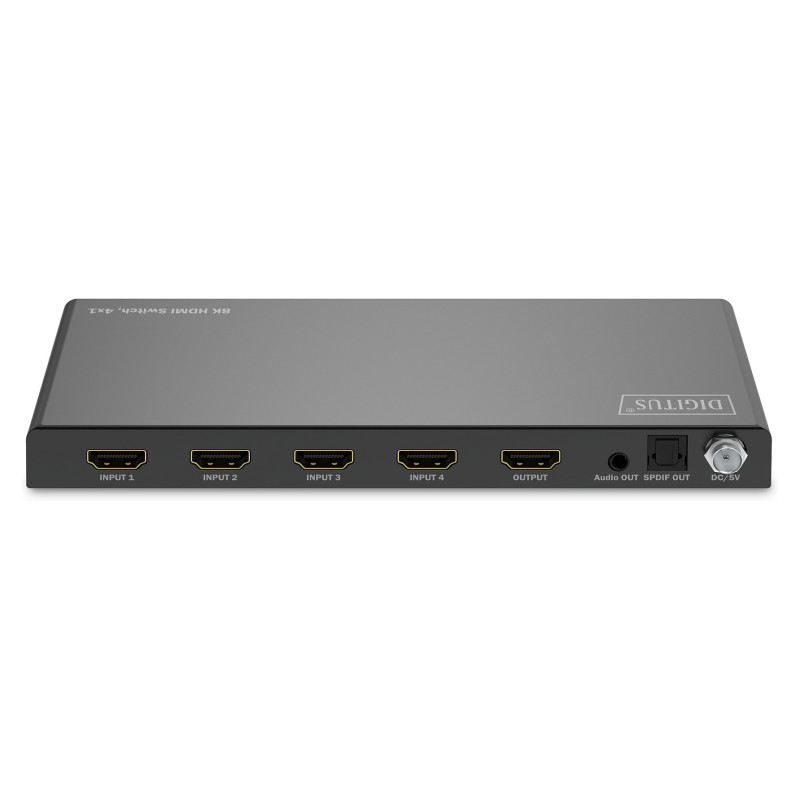

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 5
HDMI version: 2.1
HDMI in: 4
Number of HDMI outputs: 1
USB port type: Micro-USB
Feature: S/PDIF out port
Feature: 3.5 mm (1/8-inch) out
RS-232 ports: 1
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: Consumer Electronics Control (CEC) support
Feature: Extended display identification data (EDID)
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
Maximum refresh rate: 60 Hz
Supported graphics resolutions: 7680 x 4320
Bandwidth: 48 Gbit/s
LED indicators: Yes
Maximum resolution: 7680 x 4320 pixels
HD type: 8K Ultra HD
Colour depth: 36 bit
HDCP version: 2.3

Power

Power consumption (typical): 5 W

Weight & dimensions

Width: 71 mm
Depth: 188 mm
Height: 18 mm
Weight: 287 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Quick start guide
Feature: Remote control included
Feature: AC adapter included

Operational conditions

Operating temperature (T-T): 0 - 70 °C
