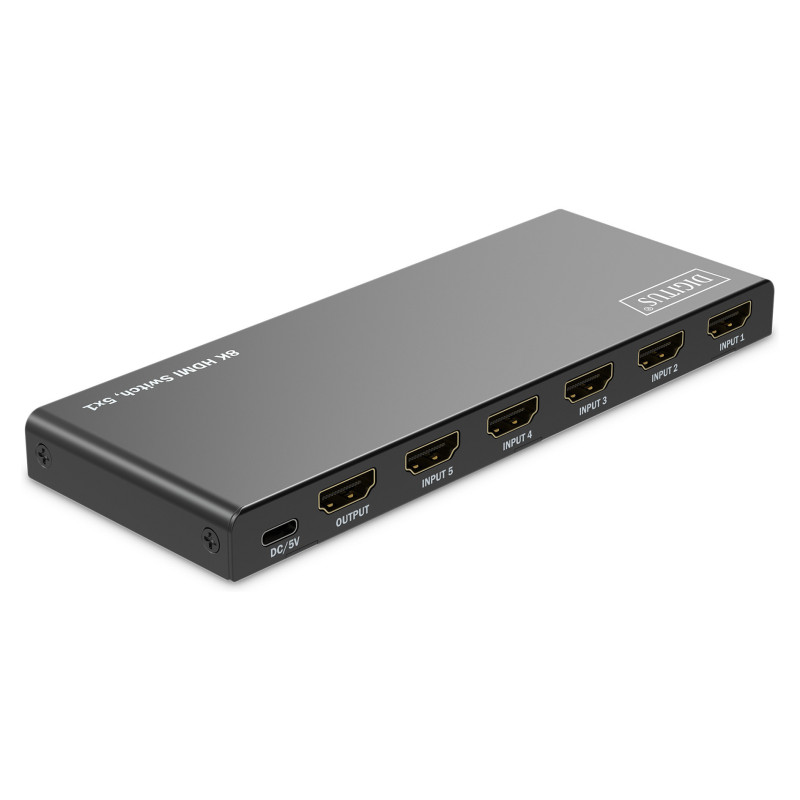

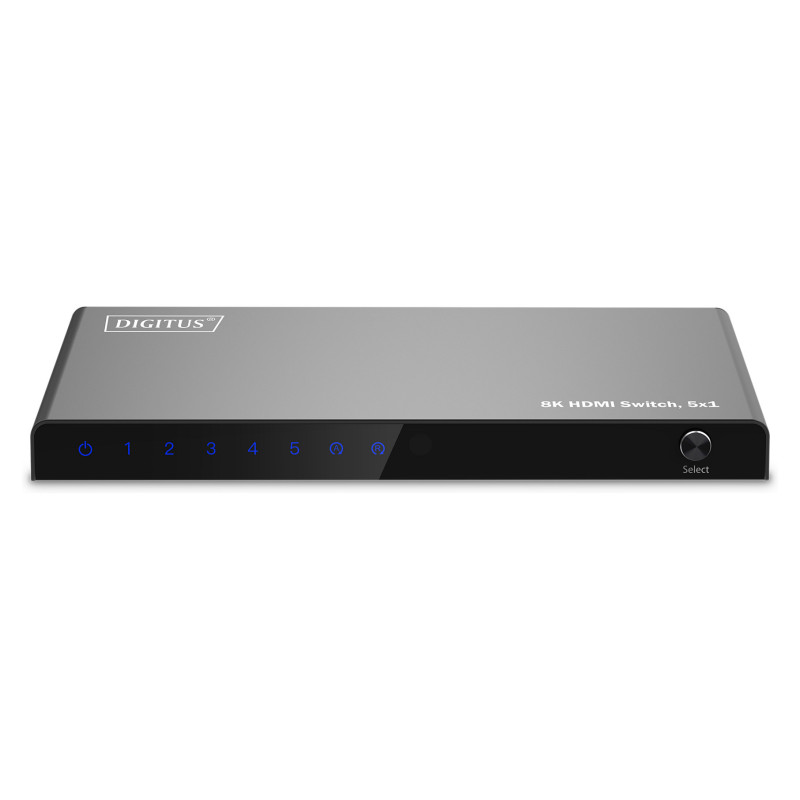

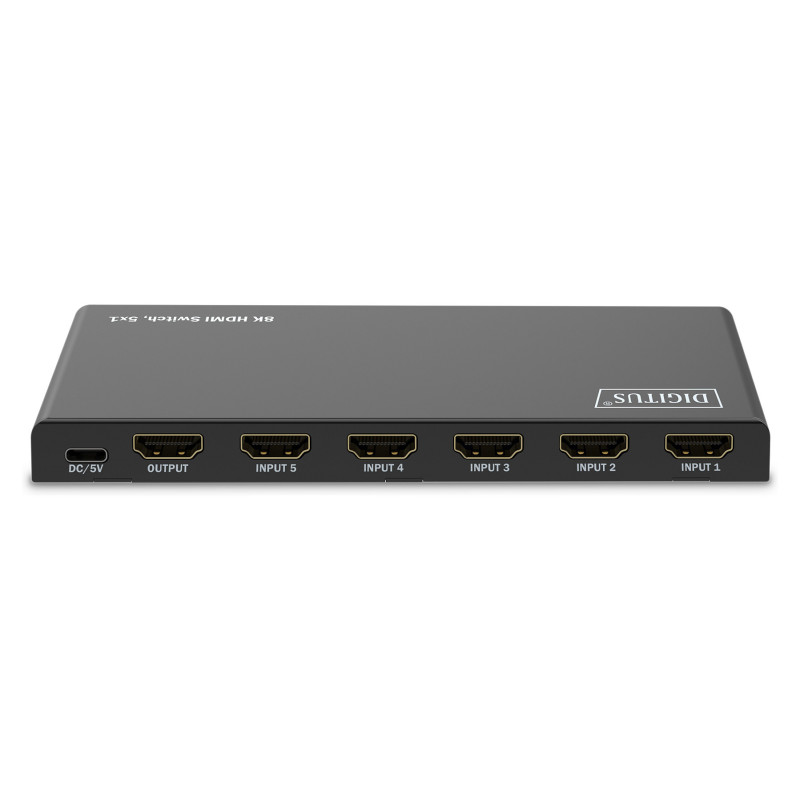

Digitus DS-55334 video switch

Digitus 8K HDMI Switch, 5x1. Video port type: HDMI, USB port type: USB Type-C. Material: Metal, Product colour: Black, Bandwidth: 48 Gbit/s. Power consumption (typical): 5 W. Width: 62 mm, Depth: 160 mm, Height: 14 mm. Package width: 123 mm, Package depth: 179 mm, Package height: 45 mm

Extend your TV/monitor with additional HDMI connections - Switch conveniently between the signal sources without replugging

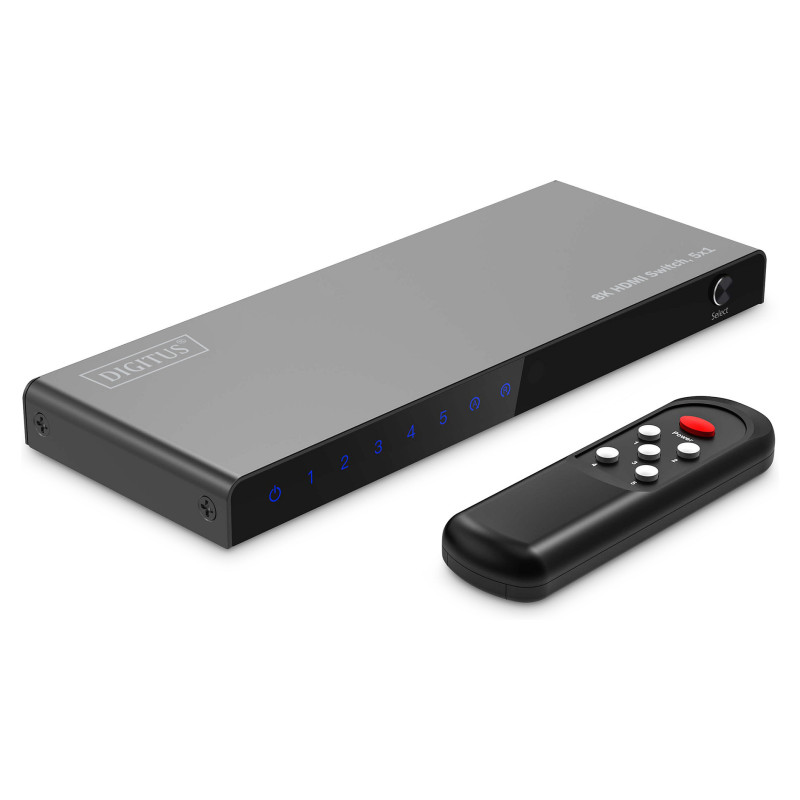

- Switch conveniently between 5 signal sources via remote control, on the device itself or via automatic recognition.
- Additional HDMI connections for your output device - 5 signal sources via just 1 HDMI connection/cable on the screen
- Power supply via USB-C cable (included)
- Max. resolution: 8K/60Hz (4:4:4)
- Video bandwidth: 48 Gbps
- Supports High Dynamic Range (HDR)
- Supports HDCP 2.3
- Supports Consumer Electronic Control (CEC)
- Supports Deep Color (36-bit)
- HDMI 2.1

The DIGITUS® 8K HDMI Switch, 5x1 offers additional HDMI connections for your output display - 5 signal sources can be connected using just 1 HDMI connection on the screen. The video changeover switch is supplied with power via the USB-C cable, e.g. via the source device or a USB charging adapter. Switch conveniently between the signal sources via remote control, on the device itself or via automatic recognition. Perfectly suited for use with wall installation of TV - only a HDMI cable is required to connect the sources.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 6
HDMI version: 2.1
HDMI in: 5
Number of HDMI outputs: 1
USB port type: USB Type-C
Feature: DC-in jack

Features

Material: Metal
Product colour: Black
Feature: Consumer Electronics Control (CEC) support
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
Bandwidth: 48 Gbit/s
LED indicators: Status
Maximum resolution: 7680 x 4320 pixels
Cable length: 0.75 m
HD type: 8K Ultra HD
Colour depth: 36 bit
Dolby technologies: DTS, Dolby Digital
HDCP version: 2.3

Power

Power consumption (typical): 5 W

Weight & dimensions

Width: 62 mm
Depth: 160 mm
Height: 14 mm
Weight: 215 g

Packaging data

Package width: 123 mm
Package depth: 179 mm
Package height: 45 mm
Package weight: 380 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Remote control included
Cables included: USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 70 °C
