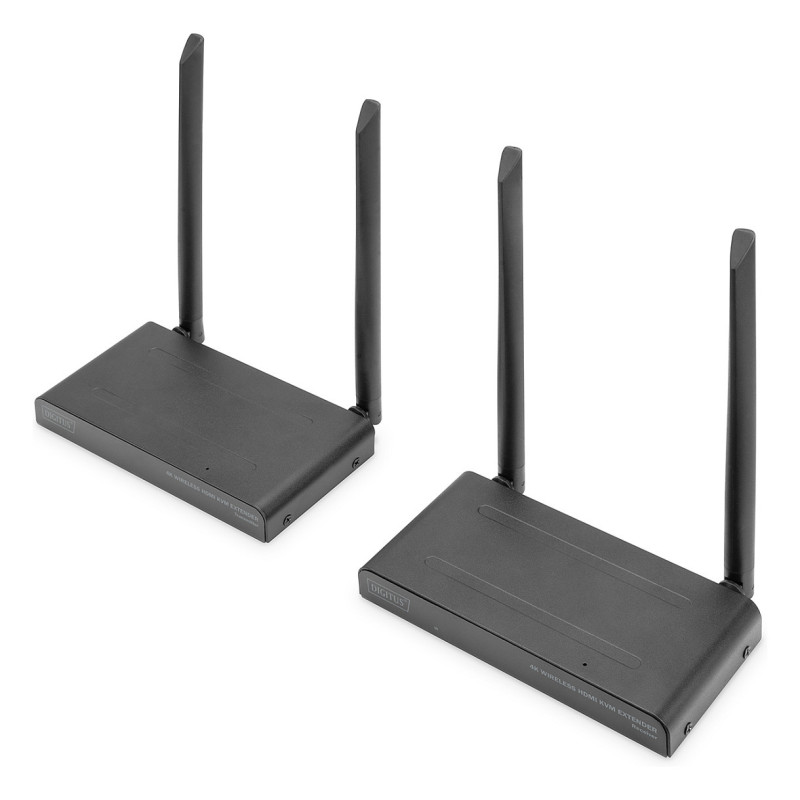

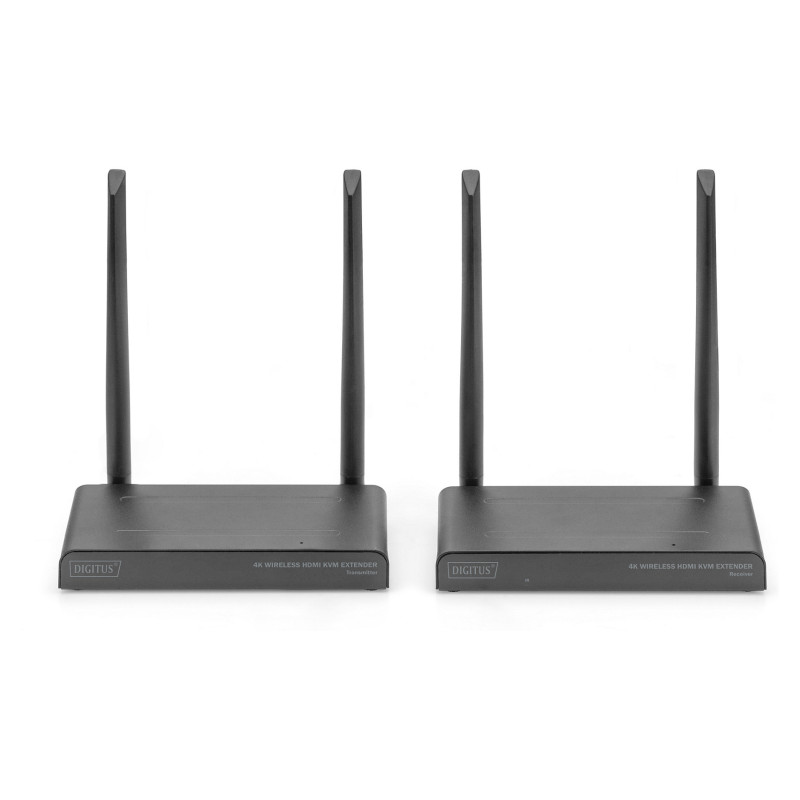

Digitus DS-55328 AV extender

Digitus 4K Wireless HDMI KVM Extender Set, 150 m. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 150 m. Connectivity technology: Wired & Wireless, USB connector type: Micro-USB A, USB Type-A, USB Type-C. Power consumption (typical): 5 W. Width: 154 mm, Depth: 77.5 mm, Height: 21 mm. Quantity per pack: 2 pc(s), Package width: 250 mm, Package depth: 233 mm

Transmits HDMI video and audio signals wirelessly in UHD 4K/30Hz over a distance of up to 150 m in clear view and offers KVM functionality

- Wireless HDMI signal transmission up to 150 m (unrestricted view)
- Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
- Additional receiver units available separately: DS-55329
- Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz)
- Simple operation and handling thanks to Plug & Play - plug in and go, no drivers or software required
- Automatic pairing & connection: Automatically establishes a connection via the most advantageous WiFi channel to ensure the best possible WiFi performance
- KVM functionality for connecting mouse & keyboard
- Touch Screen Back Control - Supports touch screen panels (via USB connection on the receiver)
- Power supply via USB-C connection + power supply unit (included)
- AES 128 bit encryption / WPA2 protocol
- HDMI 2.0 / HDCP 2.2

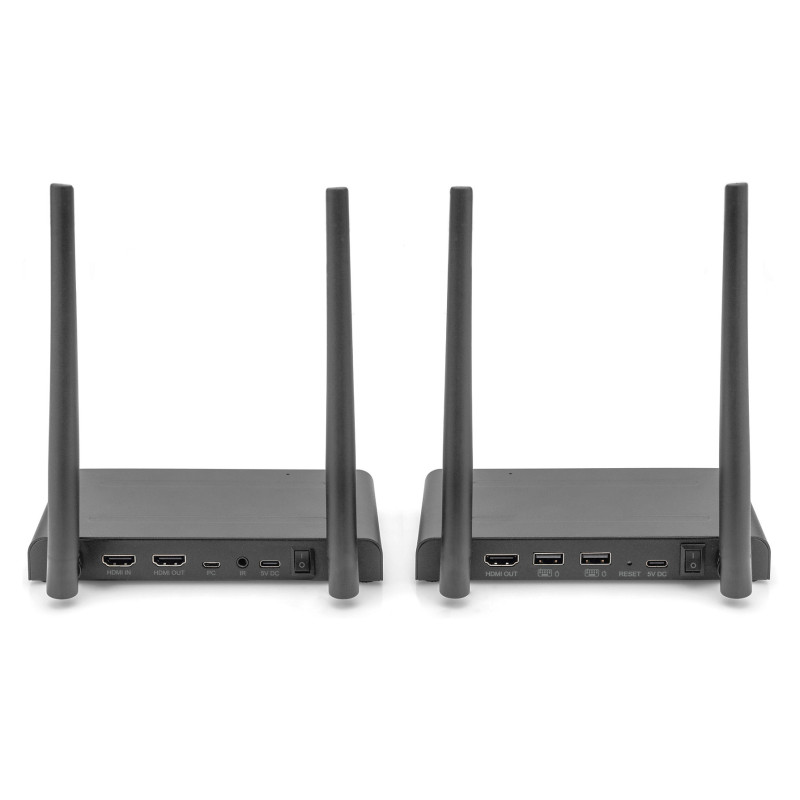

The 4K Wireless HDMI KVM Extender Set transmits your HDMI video and audio signals in UHD 4K/30Hz resolution wirelessly over a distance of up to 150 m (unrestricted view). This consists of a transmitter and receiver unit. Thanks to KVM functionality, a mouse/keyboard can be connected to the receiver unit, allowing the signal source to be controlled directly on the output device. A local monitor can be connected via the HDMI loop-out on the transmitter unit to control the output on the receiver. The extender set can be expanded to up to 4 receivers (output devices) - additional receivers available separately: DS-55329.

Features

Type: AV transmitter & receiver
Maximum resolution: 3840 x 2160 pixels
Maximum transfer distance: 150 m
Maximum refresh rate: 30 Hz
Audio output channels: 2.0 channels
LED indicators: Status
Supported video modes: 1080p, 2160p
Supported graphics resolutions: 3840 x 2160, 1920 x 1080 (HD 1080)
Audio formats supported: PCM
Security algorithms: WPA2, 128-bit AES
Video compression formats: H.265
Feature: On/off switch
Feature: HDCP
Material: Metal
Feature: Plug and Play
HDCP version: 2.2
Product colour: Black

Ports & interfaces

Connectivity technology: Wired & Wireless
Feature: Wi-Fi
HDMI in: 1
Number of HDMI outputs: 2
HDMI version: 2.0
USB ports quantity: 5
USB connector type: Micro-USB A, USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Remote (IR) output: 1

Power

Power consumption (typical): 5 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 154 mm
Depth: 77.5 mm
Height: 21 mm
Weight: 330 g

Packaging data

Quantity per pack: 2 pc(s)
Package width: 250 mm
Package depth: 233 mm
Package height: 57 mm
Package weight: 1.16 kg

Packaging content

Feature: AC adapter included
Cables included: HDMI, IR, USB
Feature: Quick start guide
