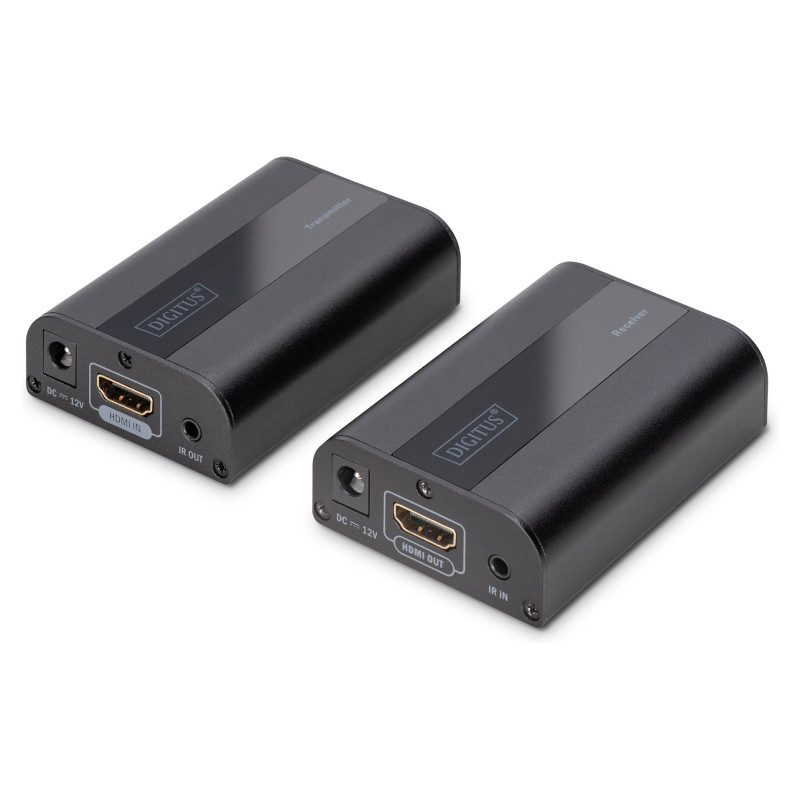

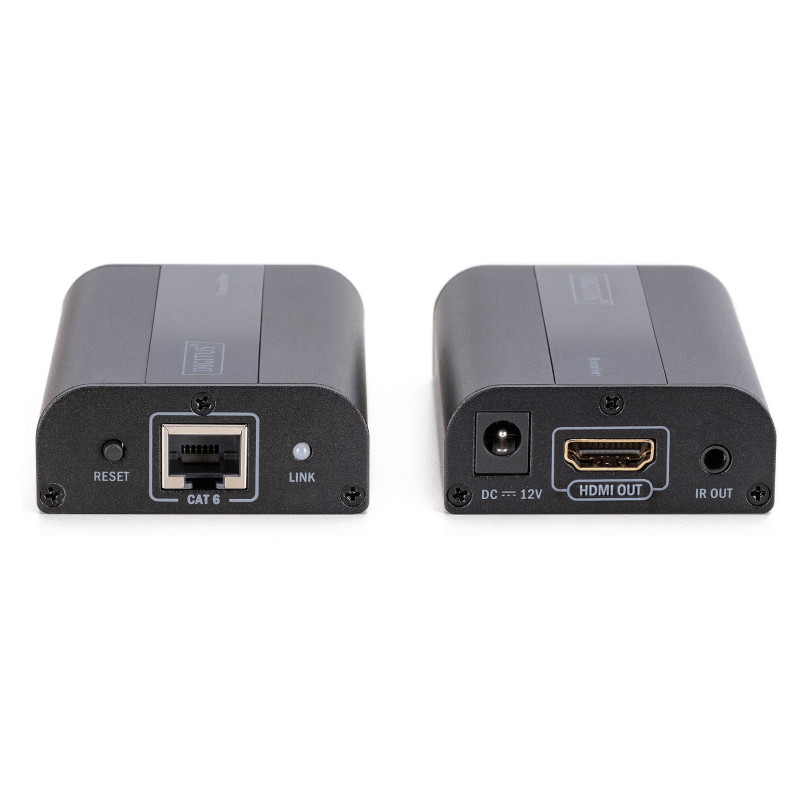

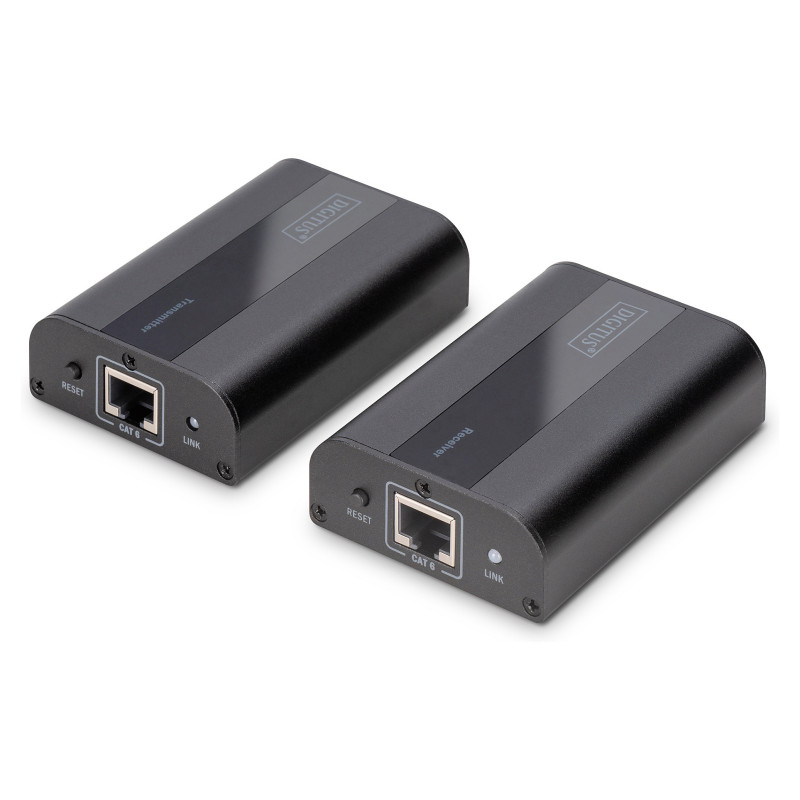

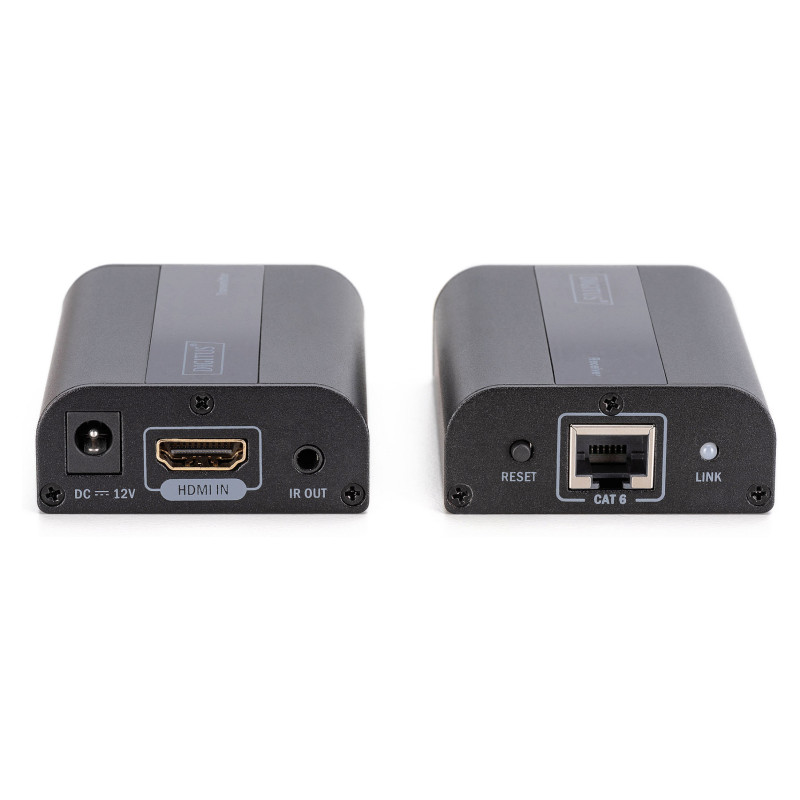

Digitus DS-55204 KVM extender

Digitus 4K HDMI extender set, 4K/60Hz. Type: Transmitter receiver, Connectivity technology: Wired, Maximum transfer distance: 70 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI. AC adapter output voltage: 5 V, AC adapter output current: 1 A. Transmitter width: 56 cm, Transmitter depth: 77.5 cm, Transmitter height: 27 cm
Extends the maximum length for HDMI cables to up to 70 m using only a single network cable between a transmitter and a receiver unit
- Extends 4K/60Hz video content up to 70 m
- Supports Ultra HD (60Hz), 4096 x 2160p resolution
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Integrated IR interface - simple control of the input source with a remote control
- Supports CAT 6 or higher network cables
- Supports HDCP 2.2
The Digitus 4K Extender Set offers an extender solution for the highest demands - both for high-resolution graphics display and for absolutely smooth video playback. It transmits digital 4K/60Hz video and audio signals over a maximum length of up to 70 m. CAT 6 or higher network cables are supported. It consists of a transmitter and receiver unit. Also included are two infrared units (transmitter, receiver) via which the remote control of the connected input source can be used.

Features

Type: Transmitter receiver
Connectivity technology: Wired
Maximum transfer distance: 70 m
Cable types supported: Cat6, Cat6a, Cat7
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Black
LED indicators: Yes

Transmitter

Transmitter video port type: HDMI
RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: HDMI

Power

AC adapter output voltage: 5 V
AC adapter output current: 1 A

Weight dimensions

Transmitter width: 56 cm
Transmitter depth: 77.5 cm
Transmitter height: 27 cm
Transmitter weight: 160 g

Packaging data

Package width: 150 mm
Package depth: 200 mm
Package weight: 575 g

Packaging content

Feature: AC adapter included
Feature: Manual

Technical details

Maximum resolution: 4096 x 2160 pixels
Package volume: 2400 cm³

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 84733080
