Digitus DS-55202 KVM extender

Digitus HDMI KVM IP Extender Set. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 80 m. Transmitter video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5 V, AC adapter output current: 1 A, Power consumption (transmitter) (max): 3.5 W. Transmitter weight: 160 g, Receiver weight: 170 g

Extends the HDMI signal up to 120 m and offers the option of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cables to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure (via IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse & keyboard via USB on the receiver unit
- Supports LAN standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

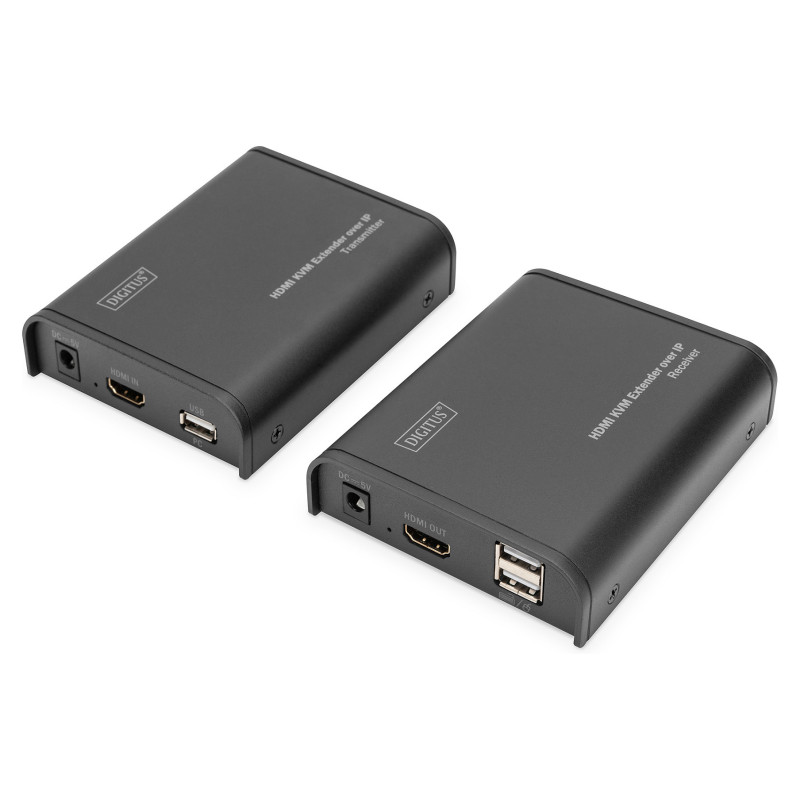

The Digitus HDMI KVM Extender Set consists of a transmitter unit (local location) and a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 120 m via a network cable (CAT 6, 5e, 5). The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit. It is perfect for industrial, commercial and public applications.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 80 m
Cable types supported: Cat5, Cat5e, Cat6
Maximum digital resolution: 1920 x 1080 pixels
Product colour: Black
Material: Aluminium
Feature: Plug and Play
LED indicators: Yes

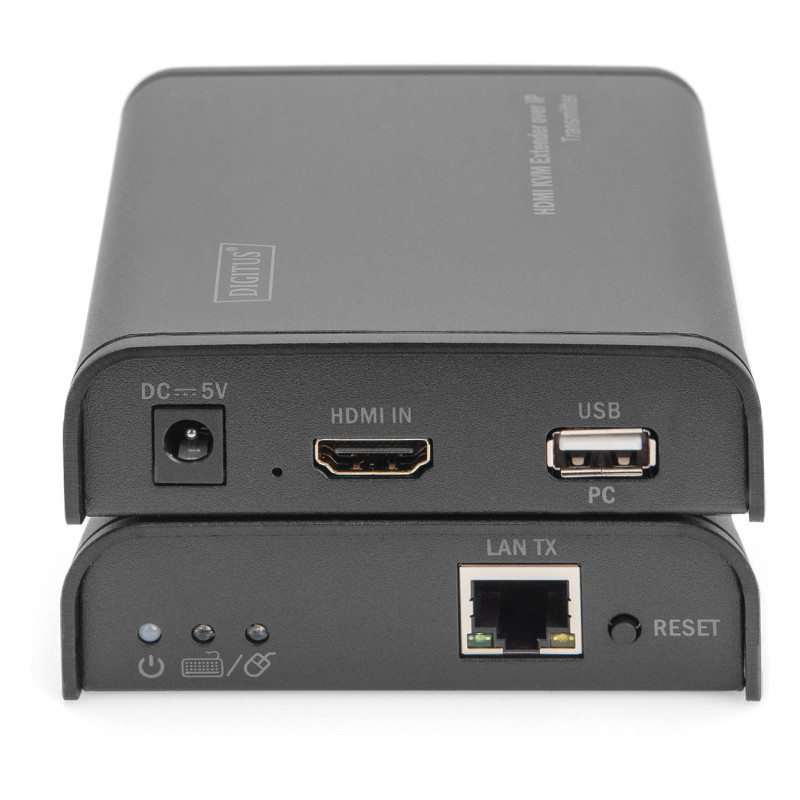

Transmitter

Transmitter video port type: HDMI
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1

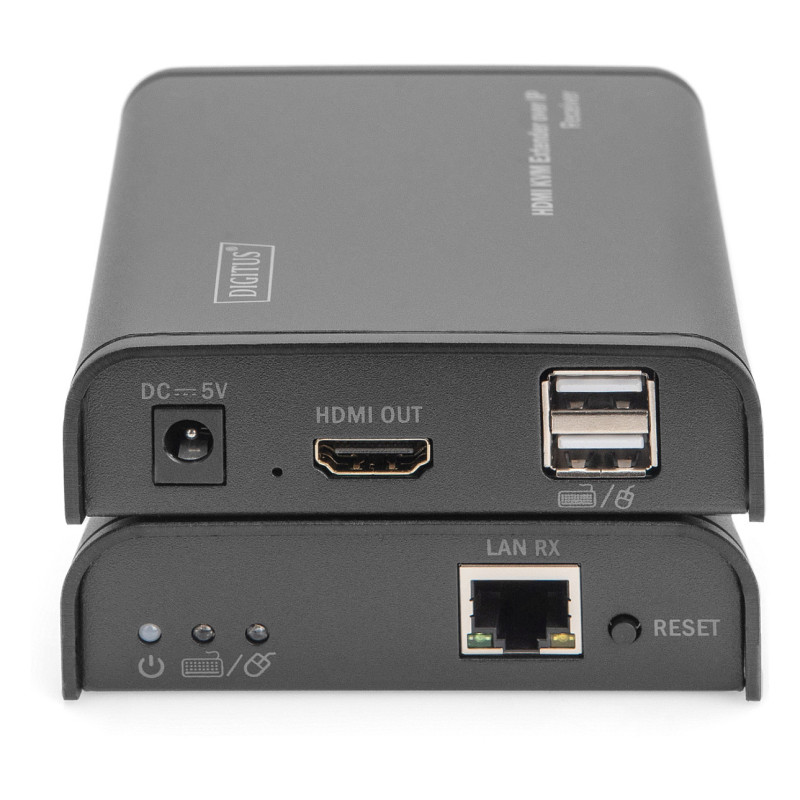

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1

Power

AC adapter output voltage: 5 V
AC adapter output current: 1 A
Power consumption (transmitter) (max): 3.5 W
Power consumption (receiver) (max): 3.5 W

Weight & dimensions

Transmitter weight: 160 g
Receiver weight: 170 g

Packaging data

Package width: 176 mm
Package depth: 240 mm
Package weight: 740 g

Packaging content

Feature: AC adapter included
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -20 - 70 °C

Technical details

Dimensions (WxDxH): 89.5 x 109.6 x 26.3 mm
Maximum resolution: 1920 x 1080 pixels
Package volume: 3379.2 cm³

Logistics data

Country of origin: China
UK Trade Tariff code: 85176200
Harmonized System (HS) code: 84733080
