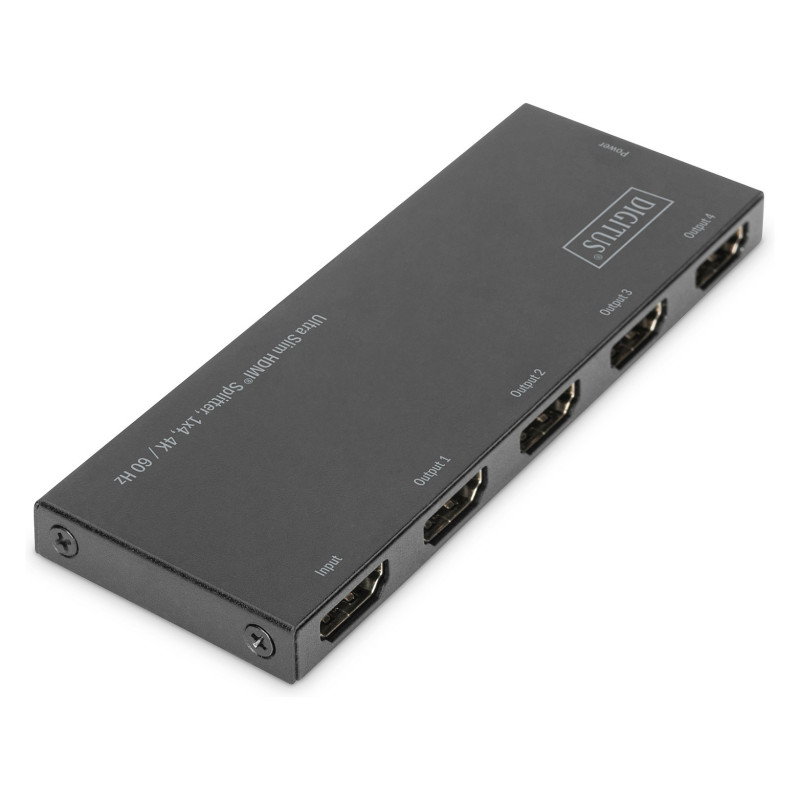

Digitus DS-45323 video splitter

Digitus Ultra Slim HDMI splitter, 1x4, 4K / 60 Hz. Video port type: HDMI, Video out: HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5 V, Input current: 0.4 A, Power consumption (typical): 2.5 W. Width: 112 mm, Depth: 40 mm, Height: 9 mm. Package width: 150 mm, Package depth: 110 mm, Package height: 25 mm

Splits an HDMI signal on four displays - supports UHD 4K / 60 Hz with HDR

- Resolutions of up to 4K / 60 Hz (4:4:4)
- Full 18 Gbps - for a crystal clear display of UHD contents
- Supports HDR & HDCP 2.2

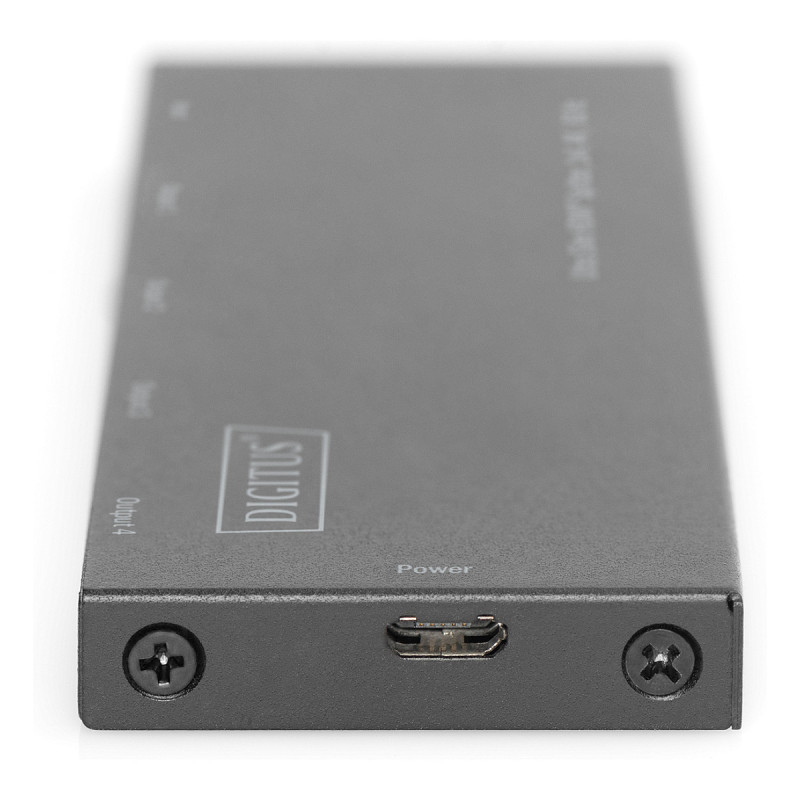

- Power supply via Micro USB (charging adapter, TV, notebook)
- Cascading of up to 8 splitters in a row

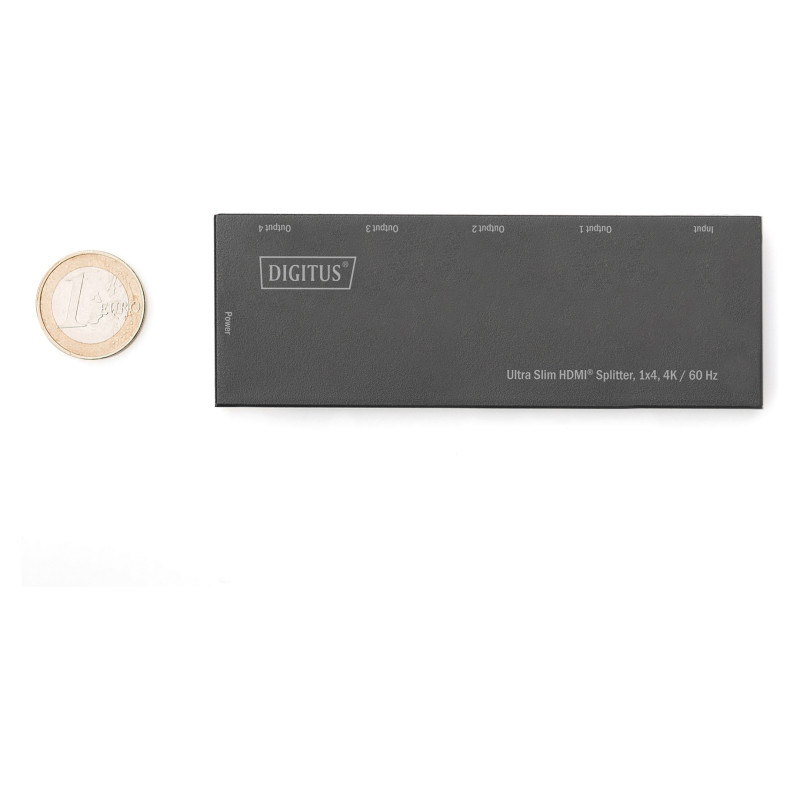

- Ultra slim design
- Compatible with the latest Ultra High Definition (UHD) standards
- Protection from Electrostatic Discharges (ESD)
- Plug and Play

The DIGITUS® high-performing splitter splits your HDMI device's audio and video signals on up to four screens, TVs or projectors with a resolution of UHD 4K / 60 Hz. No more tedious reconnecting your cables. Additionally, HDR, HDCP 2.2 and 3D are supported - also a total width of 18 Gbps for fluent playback in excellent quality. The HDMI splitter can be supplied via an existing USB port located on the TV device or, alternatively, via a USB charging adapter using electricity. You can cascade several splitters up to 8 levels.

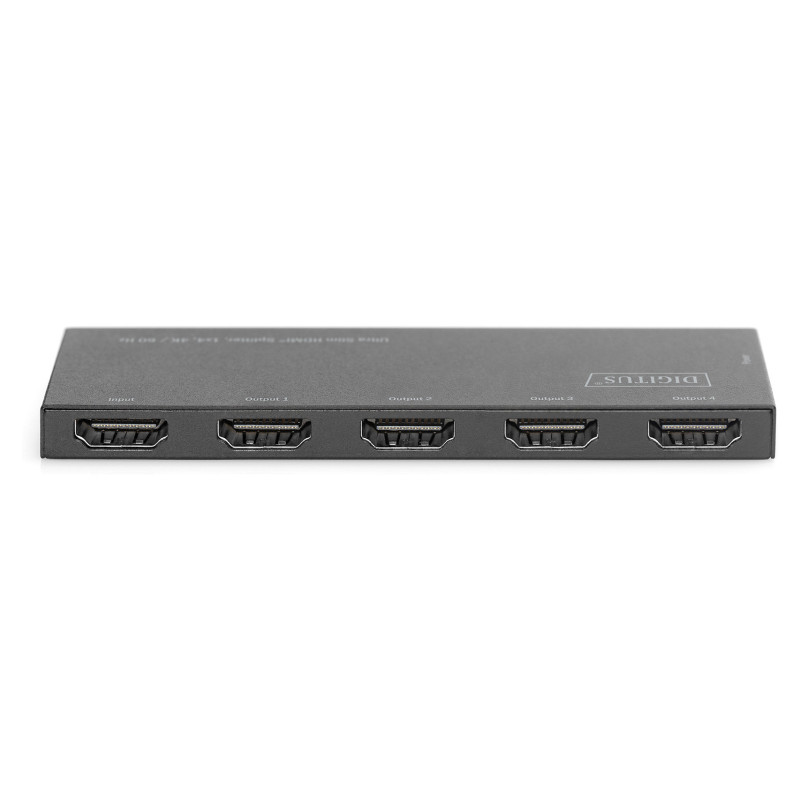

Ports & interfaces

Video port type: HDMI
Video out: HDMI
HDMI version: 1.4
Video ports quantity: 4

Features

Product colour: Black
Housing material: Metal
Maximum resolution: 4096 x 2160 pixels
HD type: 4K Ultra HD
Feature: 3D
Colour depth: 36 bit
Maximum refresh rate: 60 Hz
Feature: HDCP
Feature: Plug and Play

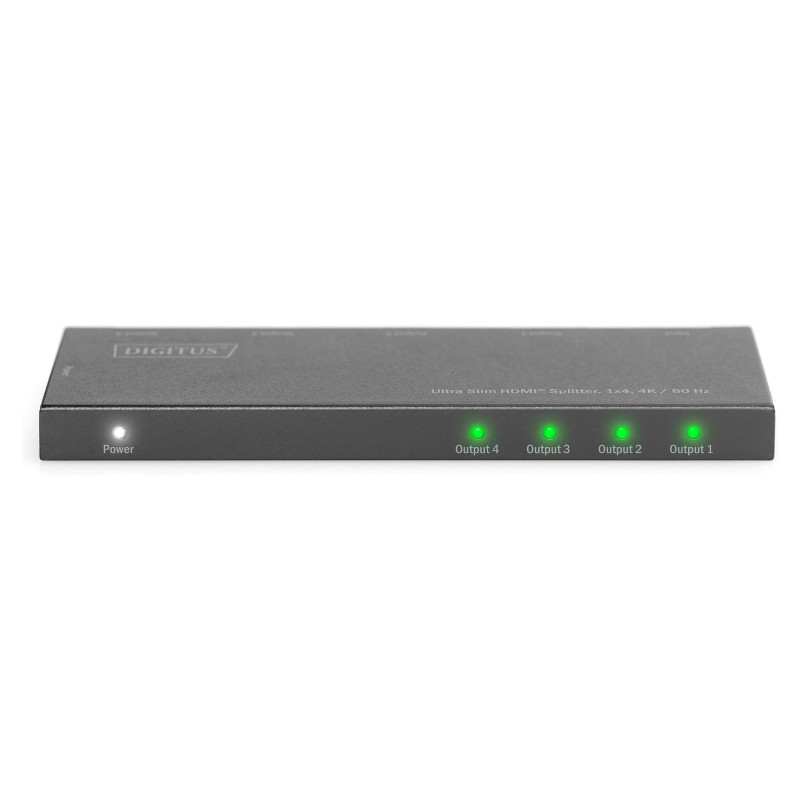

LED indicators: Yes
Certification: CE

Power

AC input voltage: 5 V
Input current: 0.4 A
Power consumption (typical): 2.5 W
Feature: USB powered

Weight & dimensions

Width: 112 mm
Depth: 40 mm
Height: 9 mm
Weight: 80 g

Packaging data

Package width: 150 mm
Package depth: 110 mm
Package height: 25 mm
Package weight: 350 g
Package volume: 412.5 cm³

Packaging content

Feature: Manual
Cables included: Micro-USB

Technical details

Connector 1: HDMI

Logistics data

Harmonized System (HS) code: 85176990
UK Trade Tariff code: 85437090
Master (outer) case width: 520 mm
Master (outer) case length: 320 mm
Master (outer) case height: 175 mm
Master (outer) case gross weight: 7 kg
Master (outer) case volume: 29120 cm³
Products per master (outer) case: 20 pc(s)
Country of origin: China
