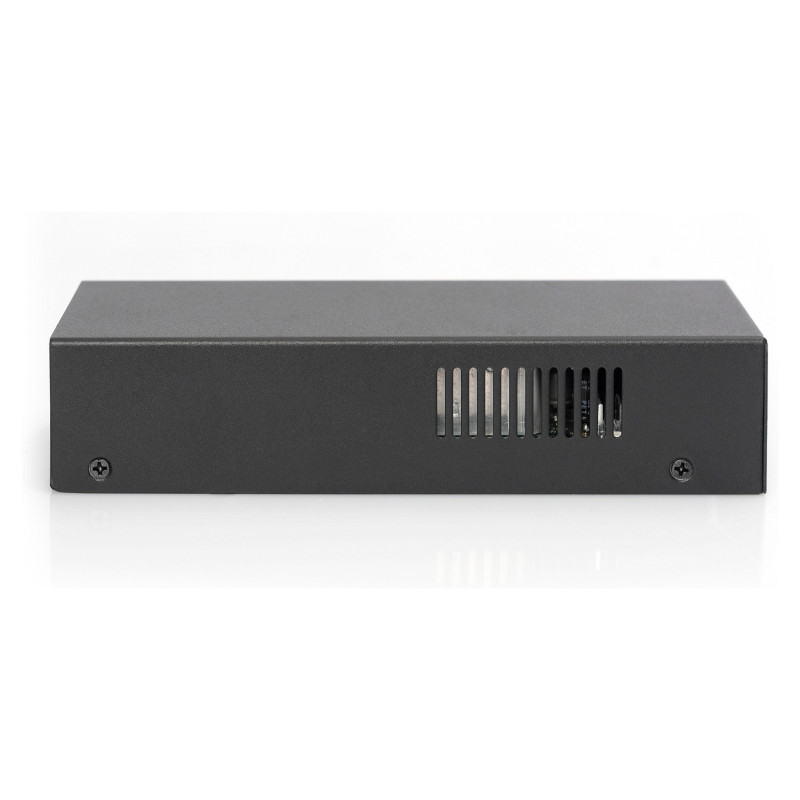

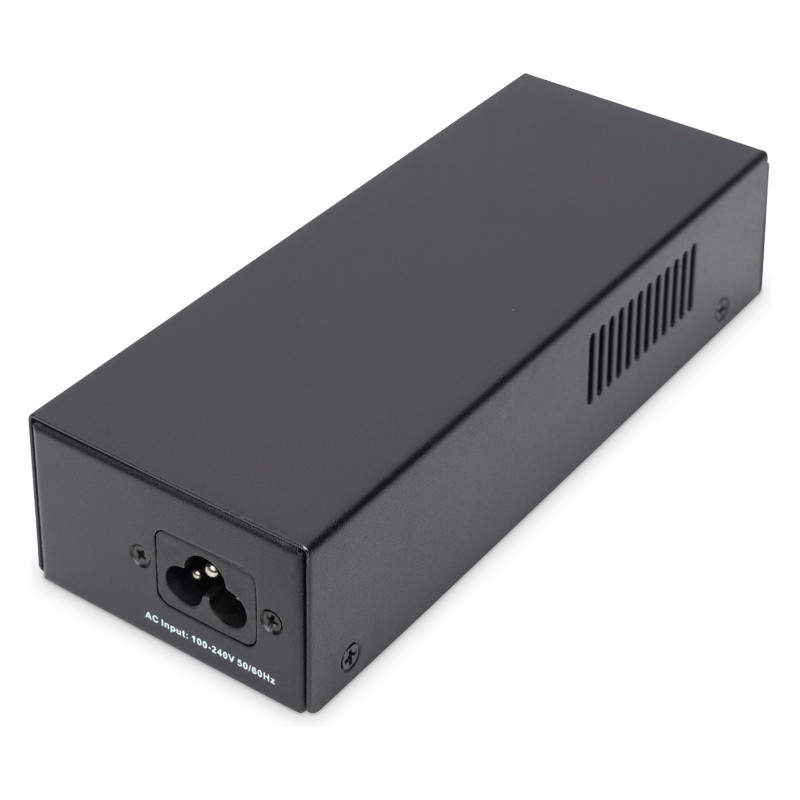

Digitus DN-95109 PoE adapter

Digitus Gigabit Ethernet PoE++ Injector, 802.3bt, 85 W. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3bt. Product colour: Black, Maximum operating distance: 100 m, Power protection features: Short circuit. Power over Ethernet (PoE) voltage: 56 V, AC adapter input voltage: 100-240 V, AC adapter frequency: 50/60 Hz. Width: 65 mm, Depth: 180 mm, Height: 40 mm. Number of products included: 1 pc(s)

Power supply and data transfer with up to 1 Gbps bandwidth and 85 watt output with just one network cable, for PoE-enabled devices such as access points, IP phones, POS systems or IP cameras

- PoE power supply with up to 85W as midspan or endspan
- Supports the PoE++ IEEE 802.3bt PoE standard
- Supports 10/100/1000 Base-T
- PoE output: 85 W (via 4 strand pairs)
- For distances of up to 100 m
- PoE mode A & B, automatic changeover

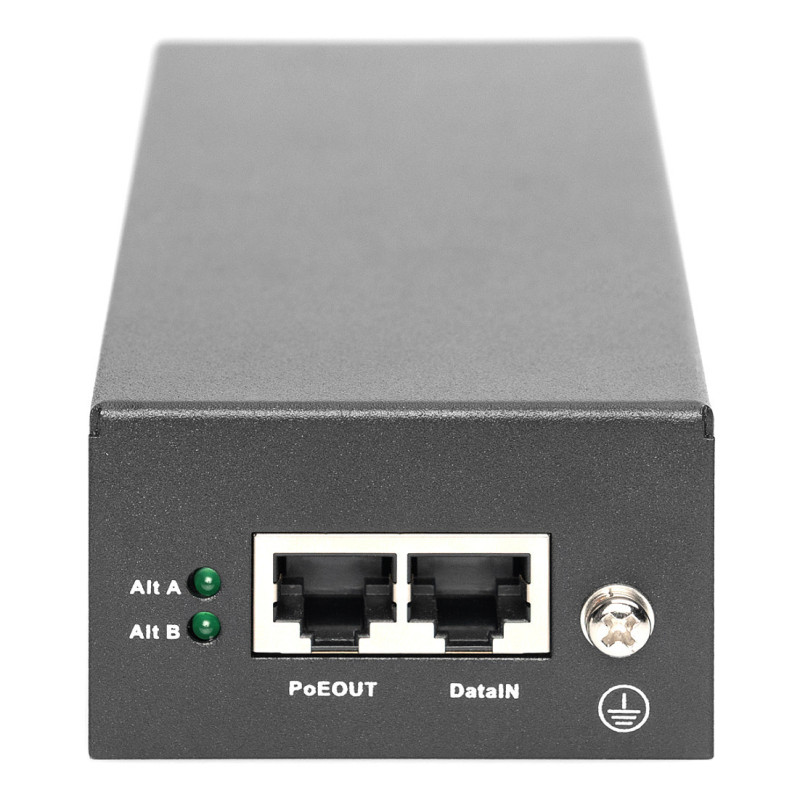

- LED operating display
- Integrated power adapter
- Excess voltage and short circuit protection
- Automatic detection of PoE devices

The 802.3bt injector from DIGITUS® offers an 85 watt PoE port as a midspan solution. Compact, cost-effective and fully IEEE802.3bt-compliant. The simple solution for remote power supply of wireless access points, IP security camera, VoIP phones, thin clients and other installations with PoE functionality. PoE+/PoE++ compatible devices can be supplied with power and data using the network cable, a secure and reliable solution for expanding the existing network infrastructure. The injector detects various PoE modes (A/B)- Plug & Play.

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Power over Ethernet (PoE)
Networking standards: IEEE 802.3bt

Features

Product colour: Black
Maximum operating distance: 100 m
LED indicators: Yes
Power protection features: Short circuit

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2

Power

Power over Ethernet (PoE) voltage: 56 V

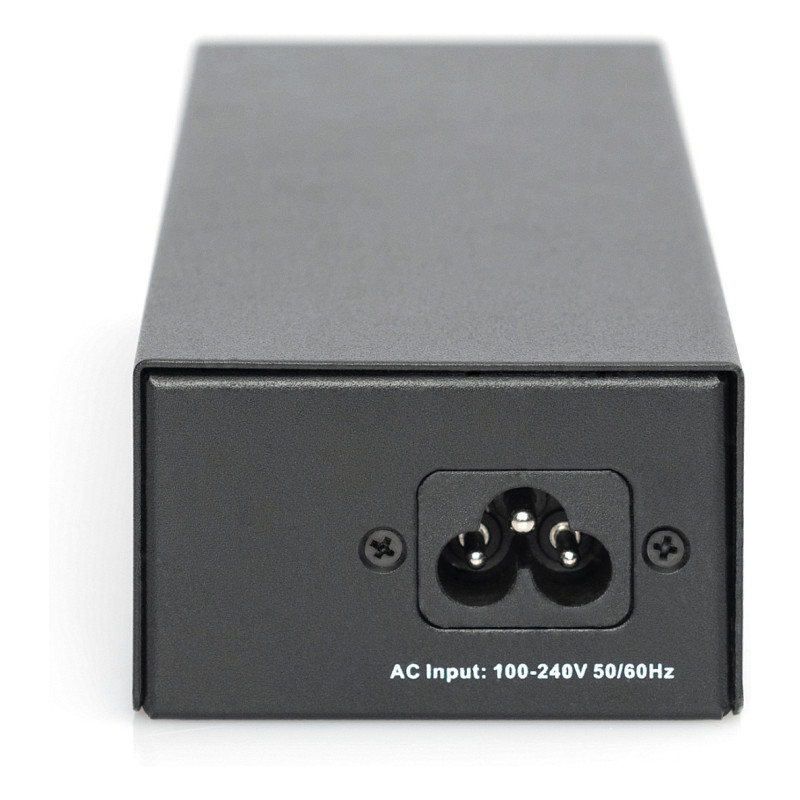

AC adapter input voltage: 100-240 V
AC adapter frequency: 50/60 Hz
Input current: 1.5 A
Power consumption (max): 90 W
Total Power over Ethernet (PoE) budget: 85 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 70 °C

Weight & dimensions

Width: 65 mm
Depth: 180 mm
Height: 40 mm
Weight: 600 g

Packaging content

Number of products included: 1 pc(s)

Packaging data

Package width: 116 mm
Package depth: 60 mm
Package weight: 100 g
Package volume: 1322.4 cm³

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85044095
Country of origin: China
