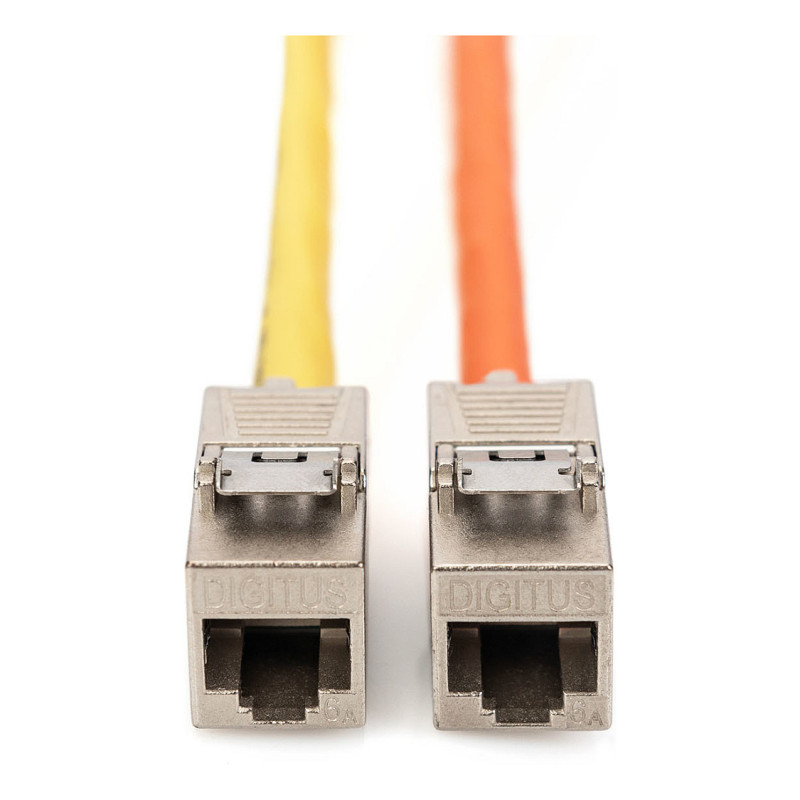

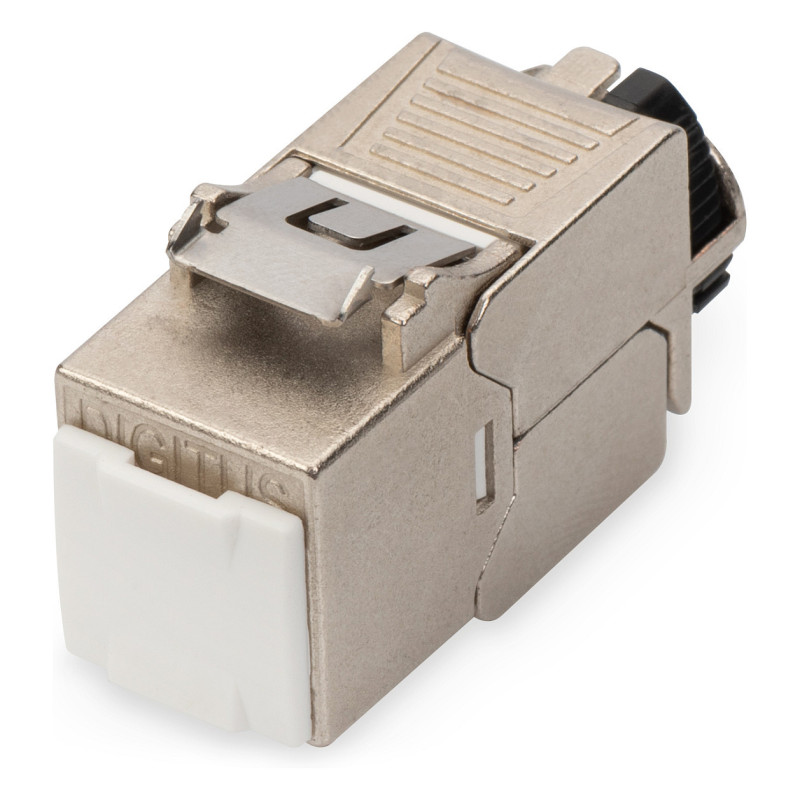

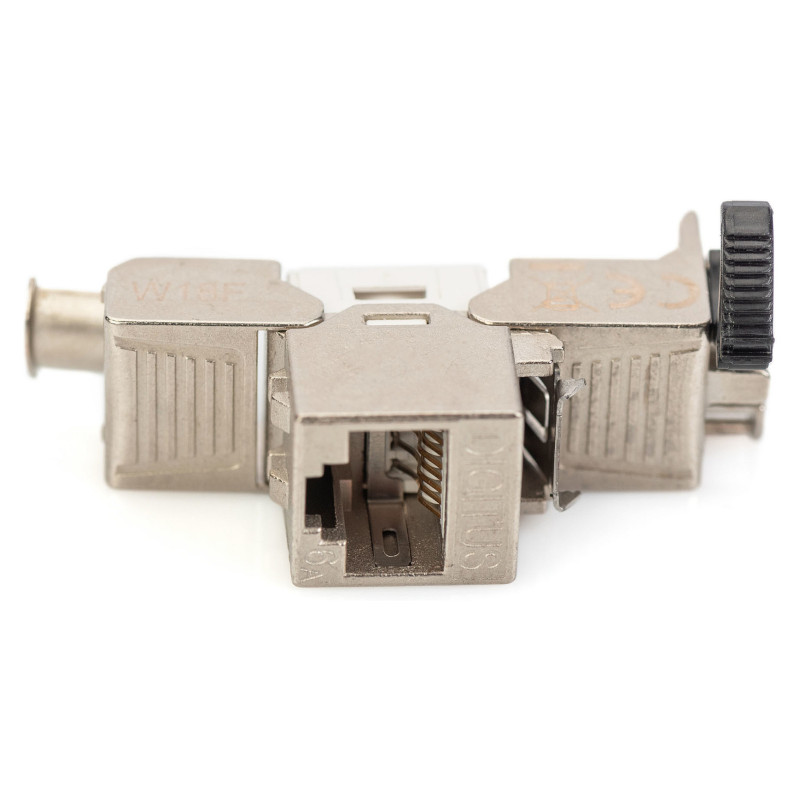

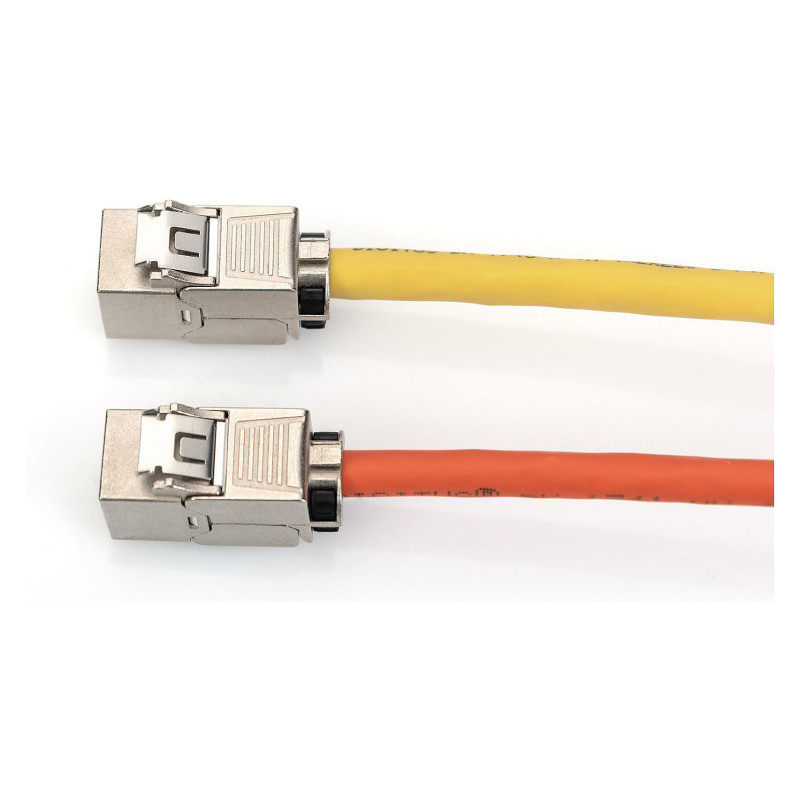

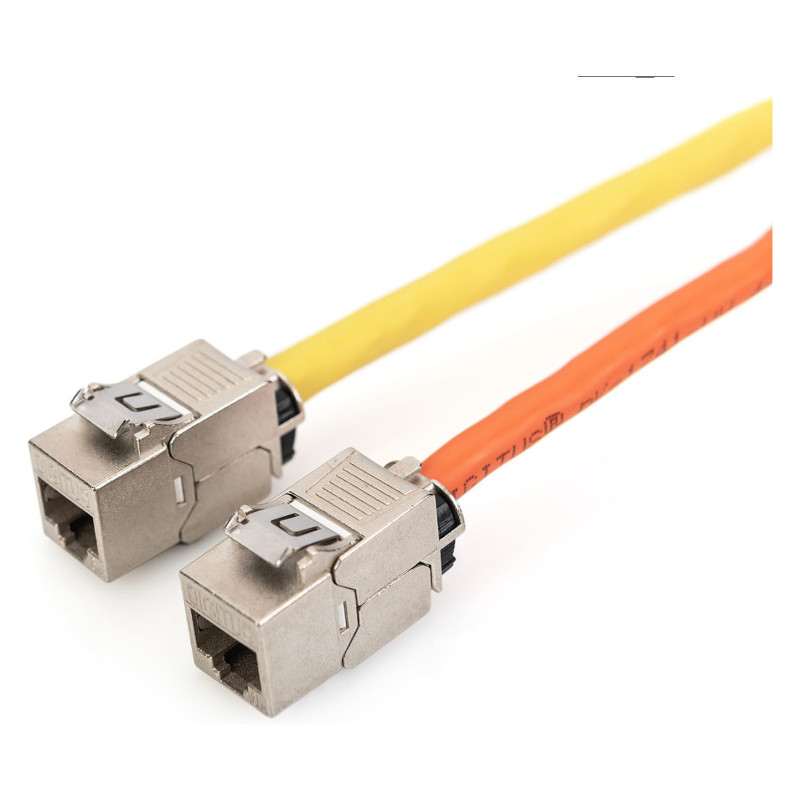

Digitus DN-93619-24 keystone module

Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces). Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Width: 14.5 mm, Depth: 34.5 mm, Height: 21 mm. Quantity per pack: 24 pc(s). Country of origin: China

Design-compatible, shielded, tool-free, with metal locking lever and intelligent cable manager

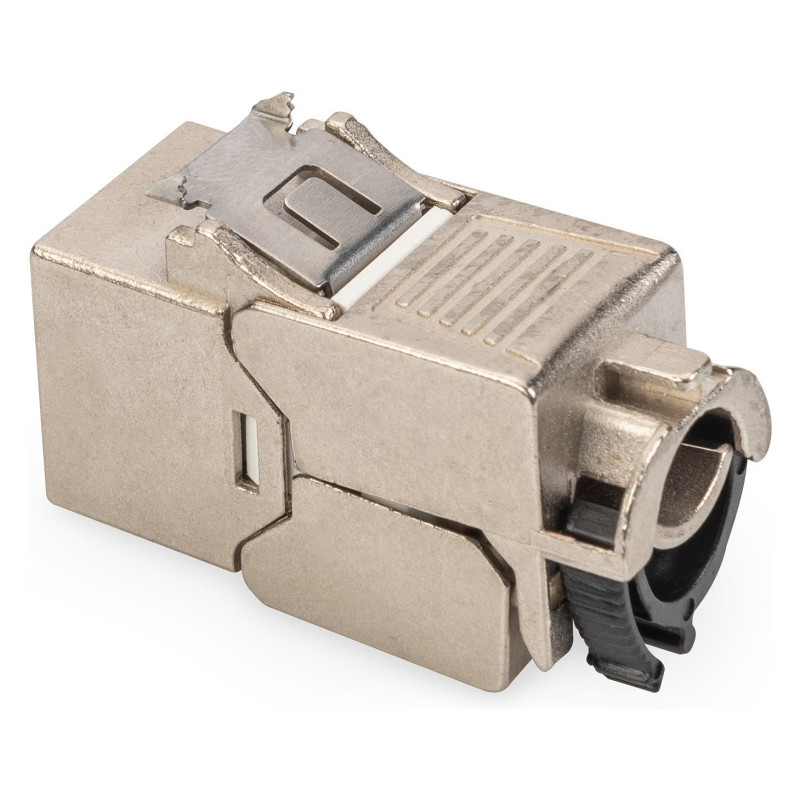

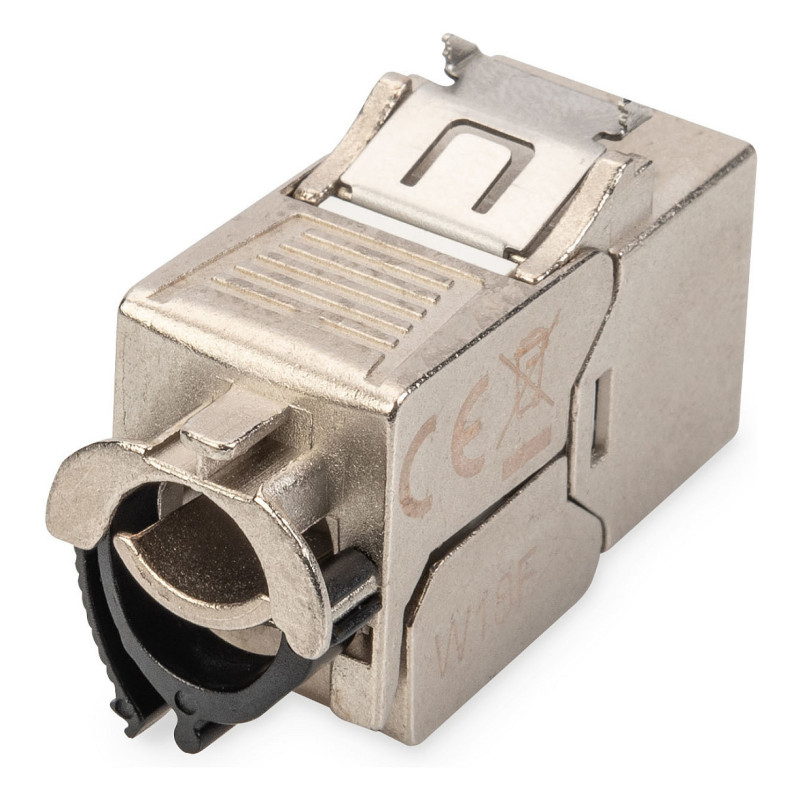

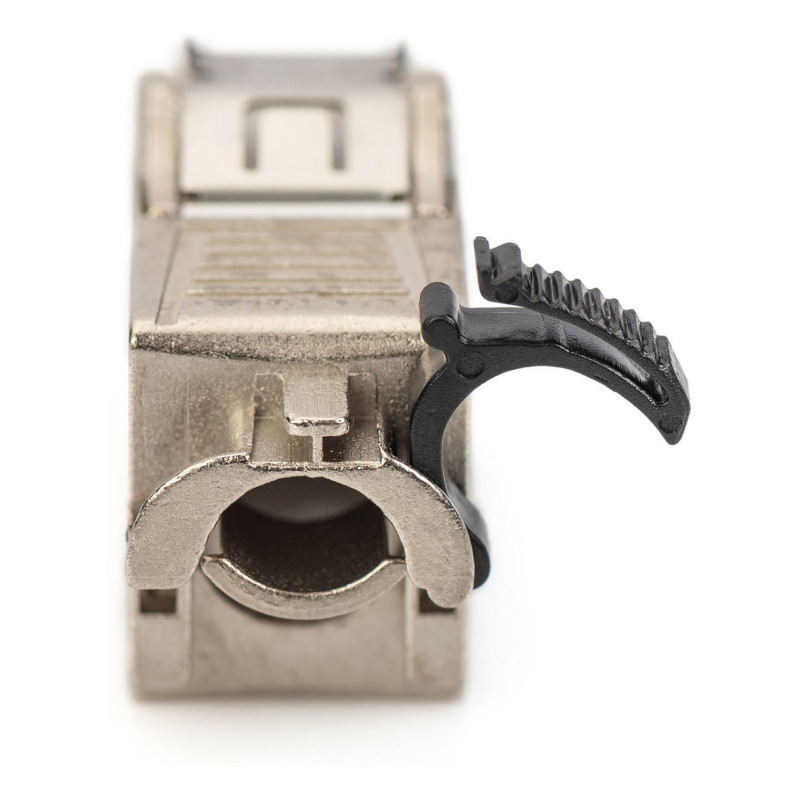

- Strain relief and cable fixing using intelligent cable manager
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes

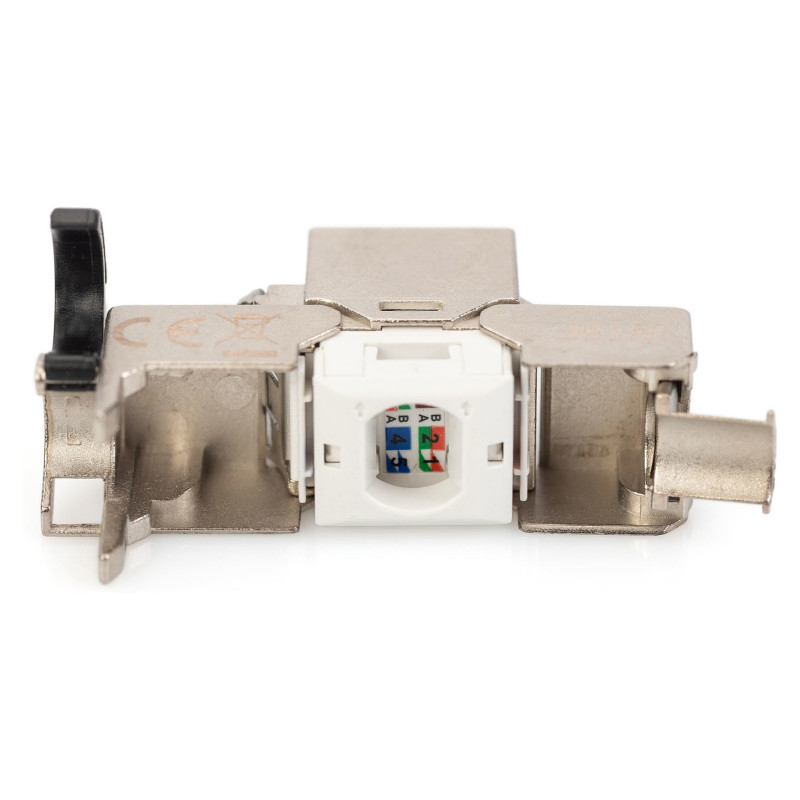

- CAT 6A with LSA insulation displacement connectors
- Metal detent lever
- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ & 4PPoE (in Permanent Link)

The shielded CAT 6A Keystone module set DN-93619-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a metal locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows 24 units to be installed in series in a 483 mm (19") 1U panel. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features

Construction type: Flat
Product colour: Silver
Connector 1: RJ-45
Connector 1 gender: Male
Cabling technology: 10GBase-T
Connector contacts plating: Nickel/Gold
AWG wire size: 26/22
Cable types supported: Cat6a
Cable shielding: S/UTP (STP)
Housing material: Zinc
Feature: Built-in dust cover
Frequency: 500 MHz

Weight & dimensions

Width: 14.5 mm
Depth: 34.5 mm
Height: 21 mm
Weight: 19.5 g

Packaging content

Quantity per pack: 24 pc(s)

Logistics data

Country of origin: China
Harmonized System (HS) code: 85369010
