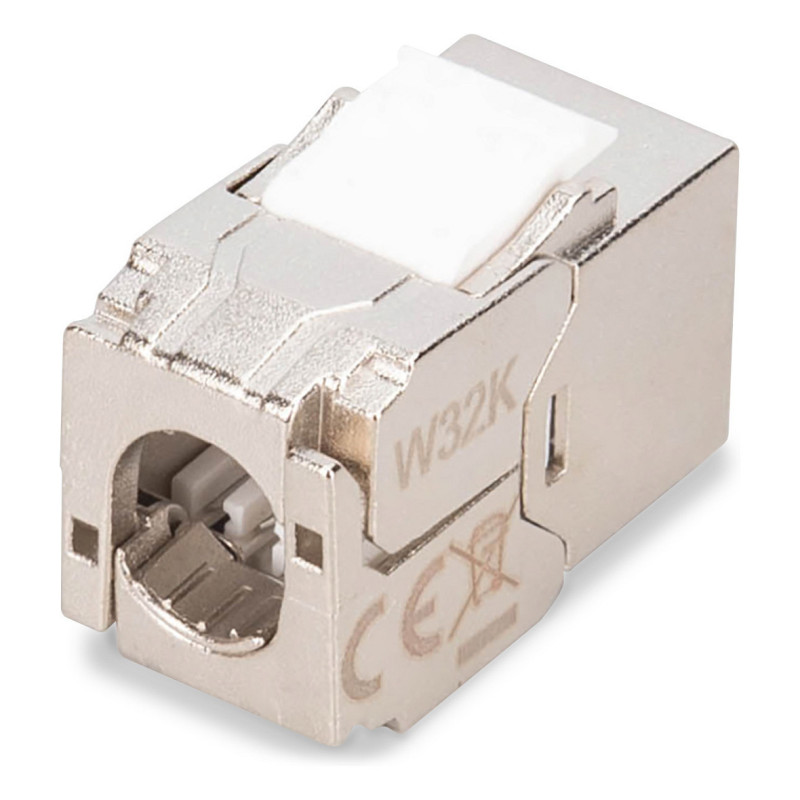

Digitus DN-93615-S-4 keystone module

Digitus CAT 6A compact keystone module, shielded, tool-free mounting connection, 4 pcs.. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Package width: 120 mm, Package depth: 165 mm, Package height: 20 mm. Quantity per pack: 4 pc(s)

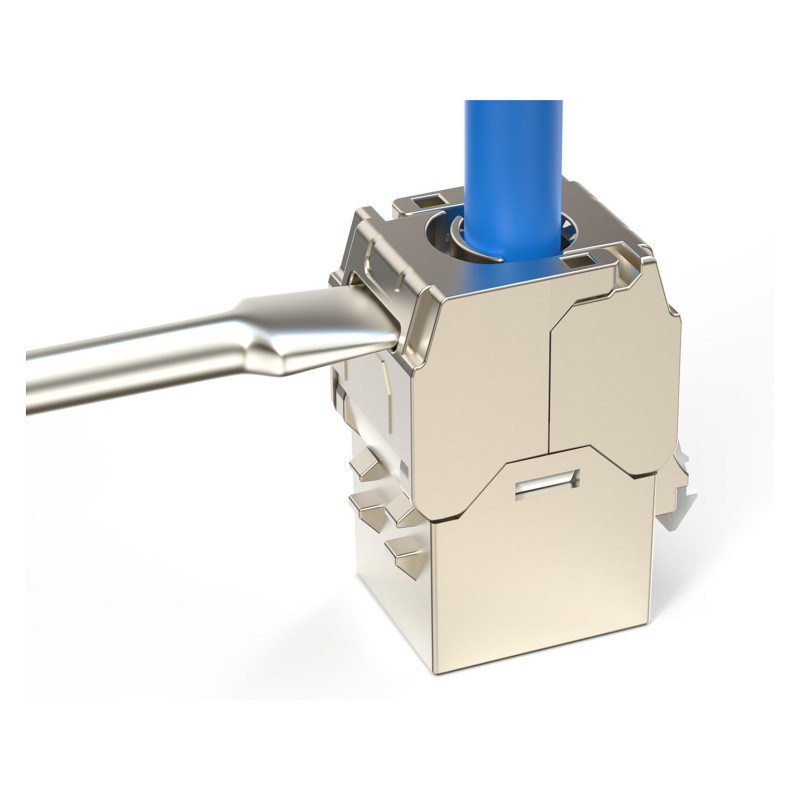

Quick and easy installation without special tools

- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes

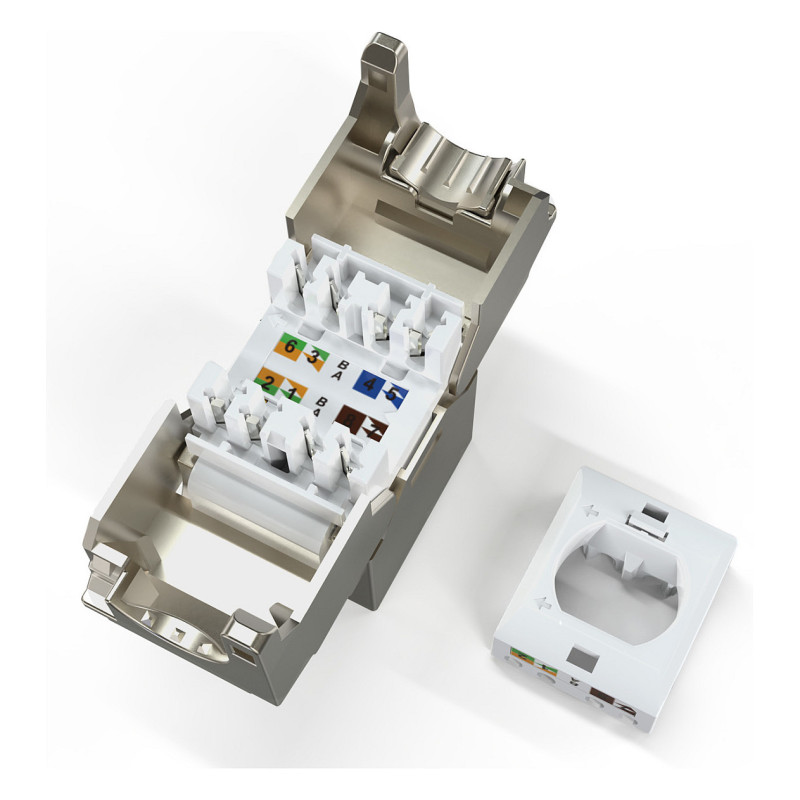

- CAT 6A with LSA insulation displacement connectors
- Dust protection cap for RJ45 socket
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

The shielded CAT 6A short keystone module DN-93615-S-4 from DIGITUS® impresses with its future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features

Construction type: Flat
Product colour: Silver
Connector 1: RJ-45
Connector 1 gender: Female
Cabling technology: 10GBase-T
Connector contacts plating: Nickel/Gold
AWG wire size: 22/1
Cable types supported: Cat6a
Housing material: Zinc
Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Frequency: 500 MHz
Feature: Magnetically shielded

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Packaging data

Package width: 120 mm
Package depth: 165 mm
Package height: 20 mm
Package weight: 90 g

Packaging content

Quantity per pack: 4 pc(s)
