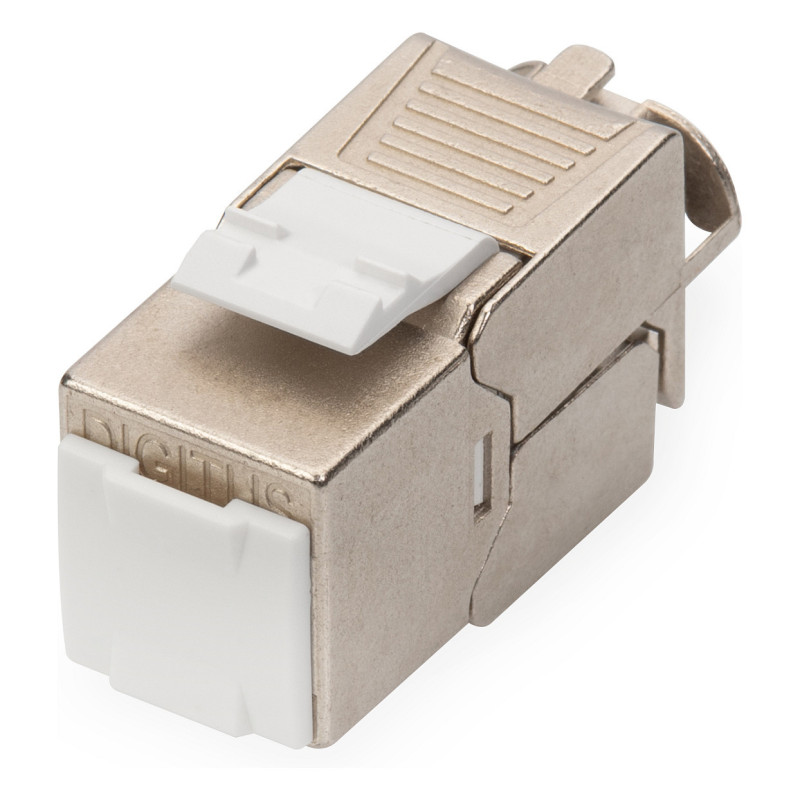

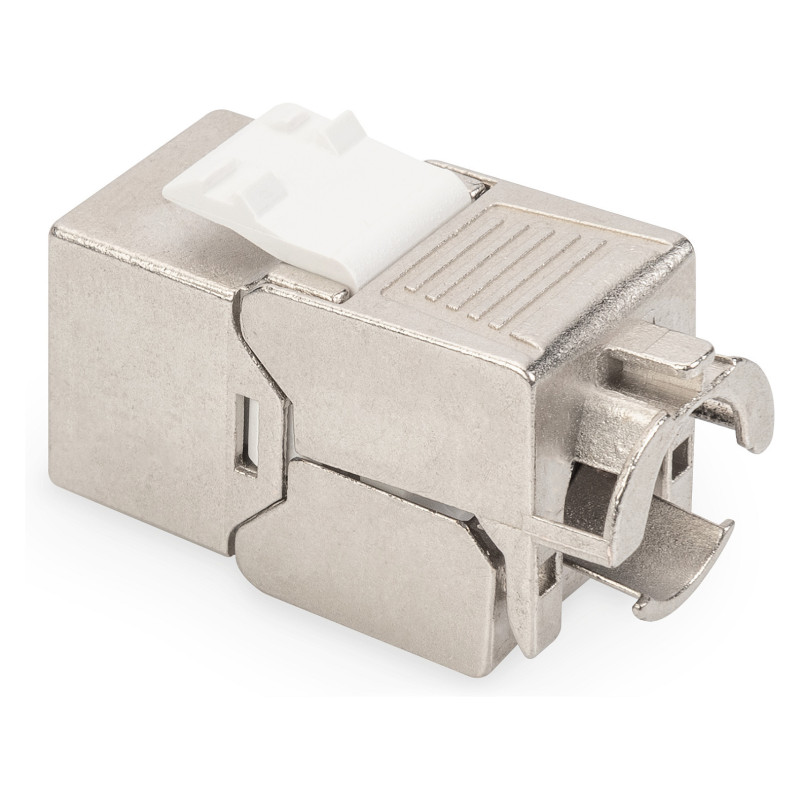

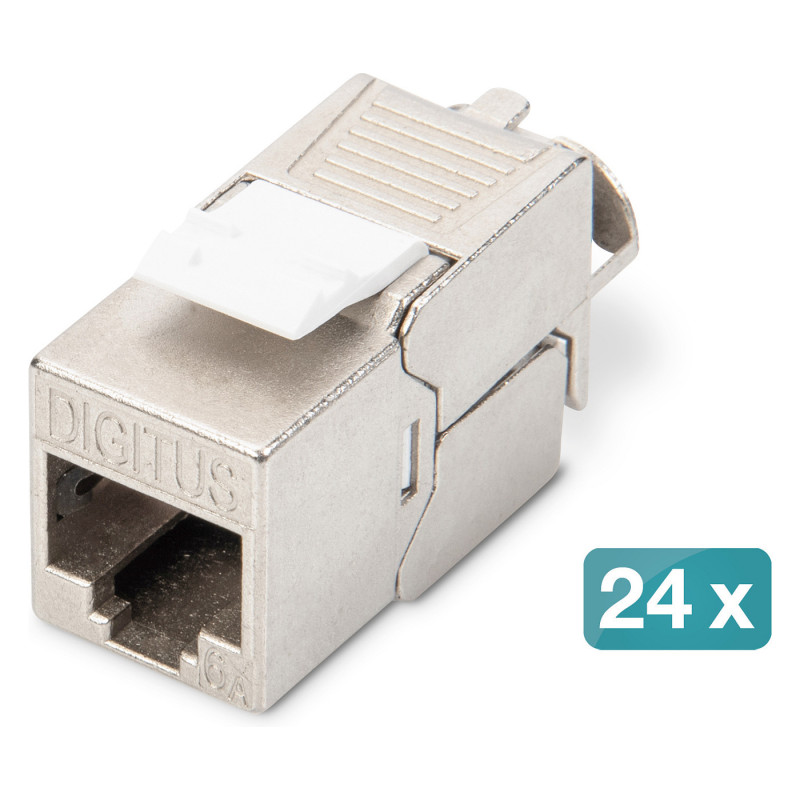

Digitus DN-93615-24 keystone module

Digitus CAT 6A Keystone module, shielded, tool-free mounting connection. Product colour: Silver, Connector contacts plating: Nickel, Housing material: Zinc. Width: 14 mm, Depth: 34 mm, Height: 20 mm. Package volume: 780 cm³, Package width: 160 mm, Package depth: 75 mm. Country of origin: China

Quick and easy installation without special tools

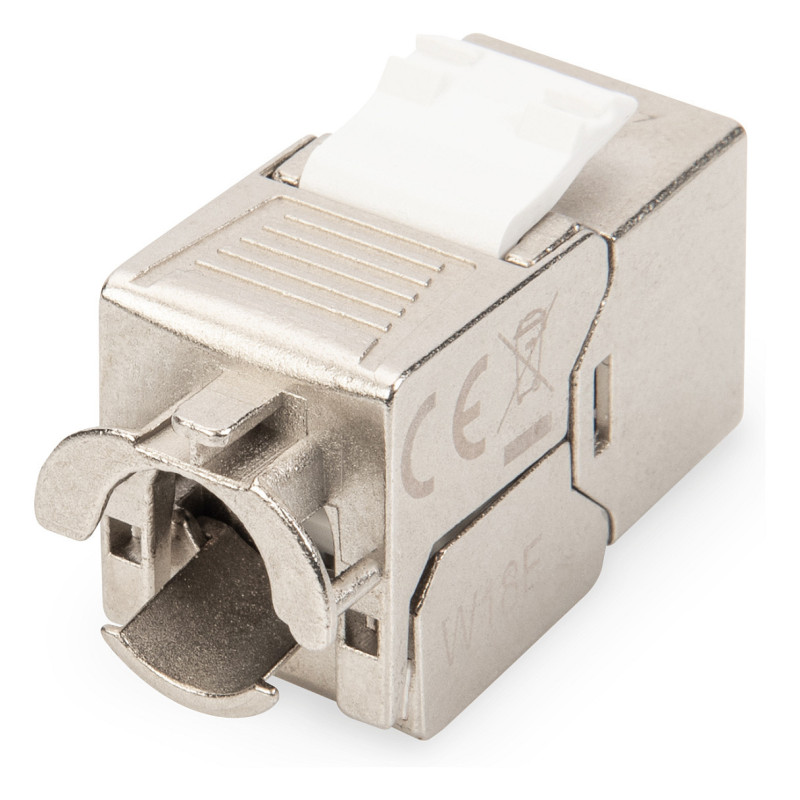

- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes

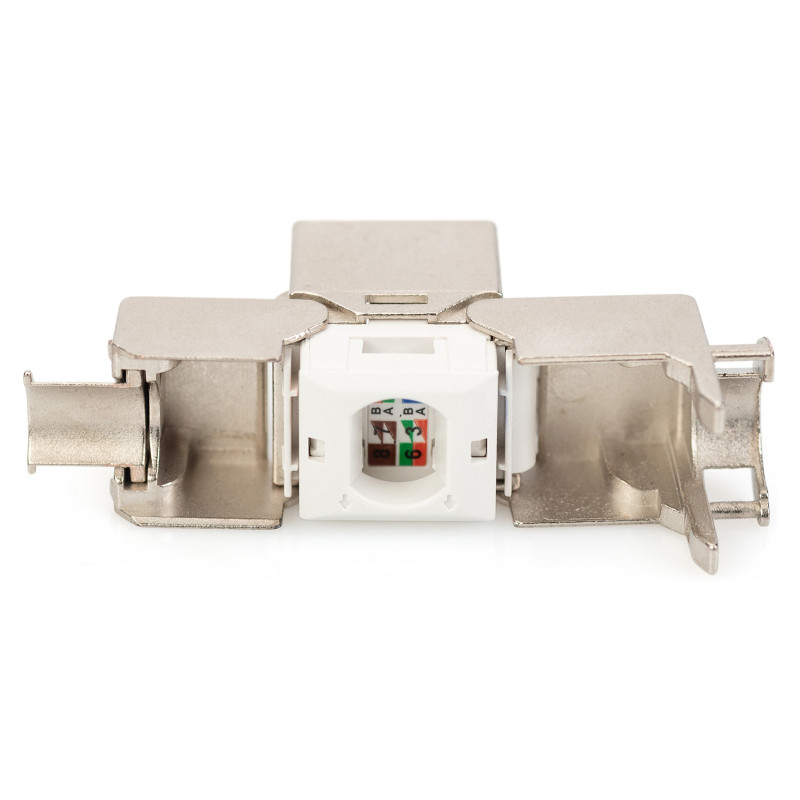

- CAT 6A with LSA insulation displacement connectors

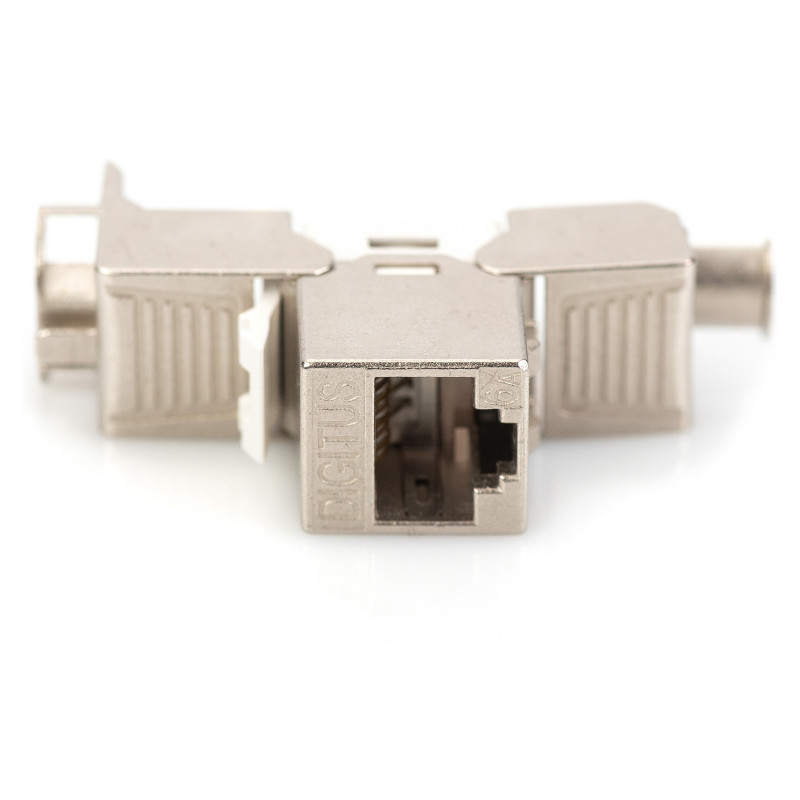

- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

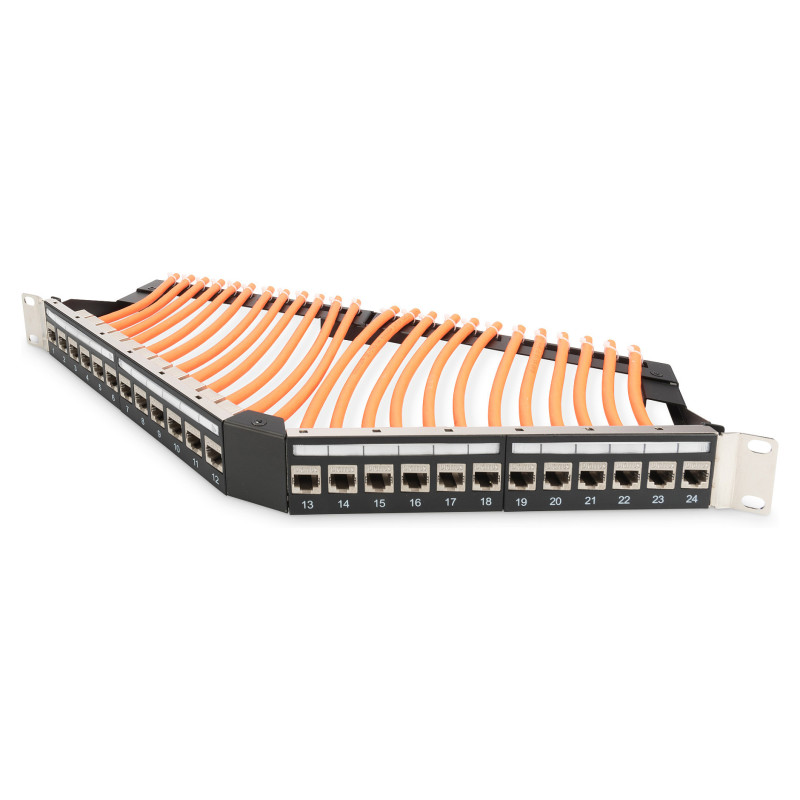

The shielded CAT 6A Keystone module set DN-93615-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design allows 24 modules to be installed in series in a 483 mm (19") 1U panel. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Features

Product colour: Silver
Connector contacts plating: Nickel
Housing material: Zinc

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 14 mm
Depth: 34 mm
Height: 20 mm
Weight: 22 g

Packaging data

Package volume: 780 cm³
Package width: 160 mm
Package depth: 75 mm
Package weight: 625 g

Logistics data

UK Trade Tariff code: 85366990
Country of origin: China
Harmonized System (HS) code: 85369010
