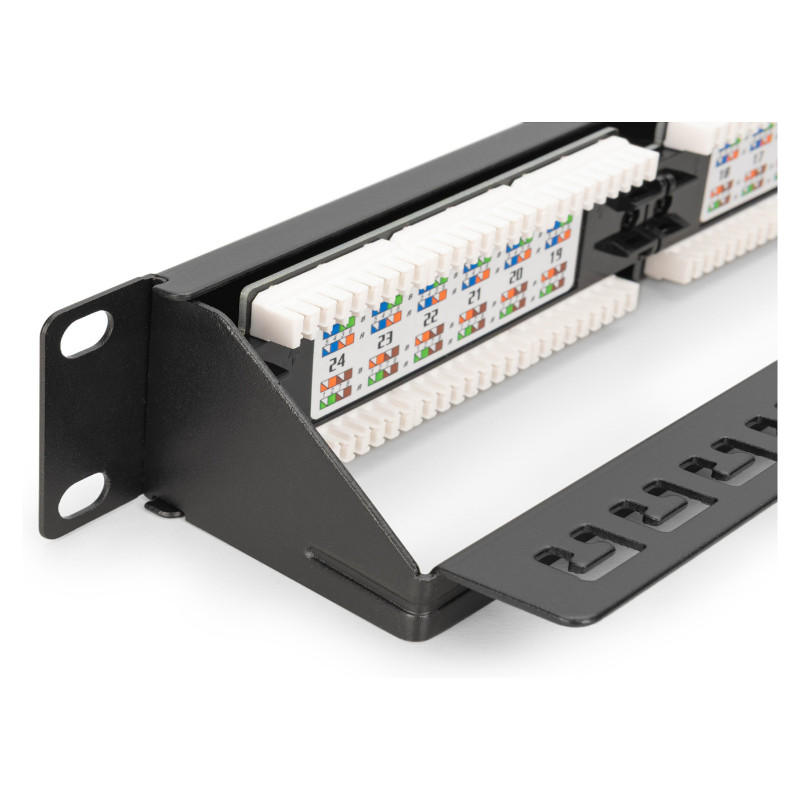

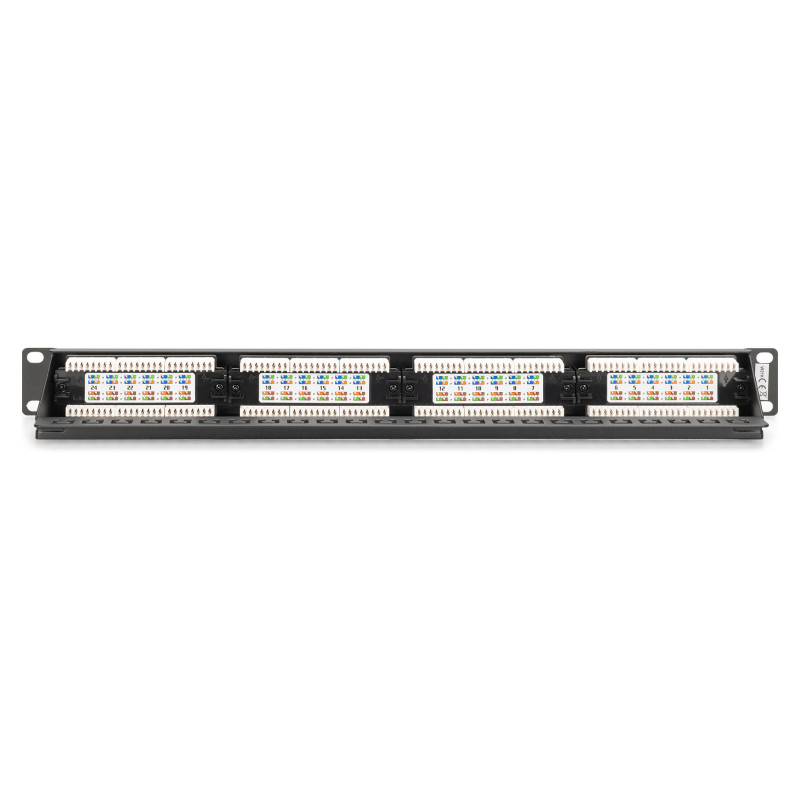

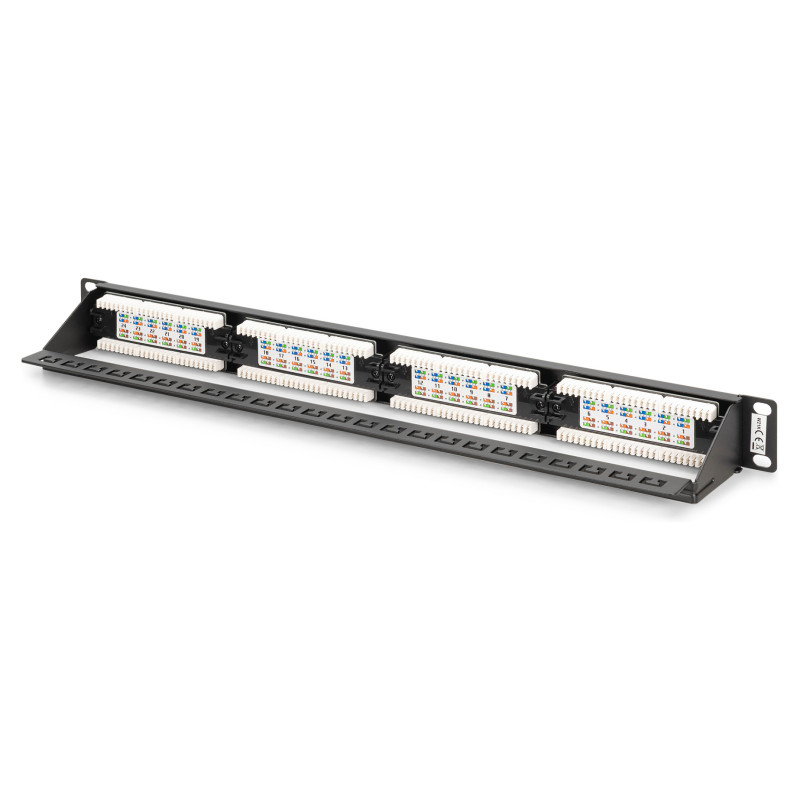

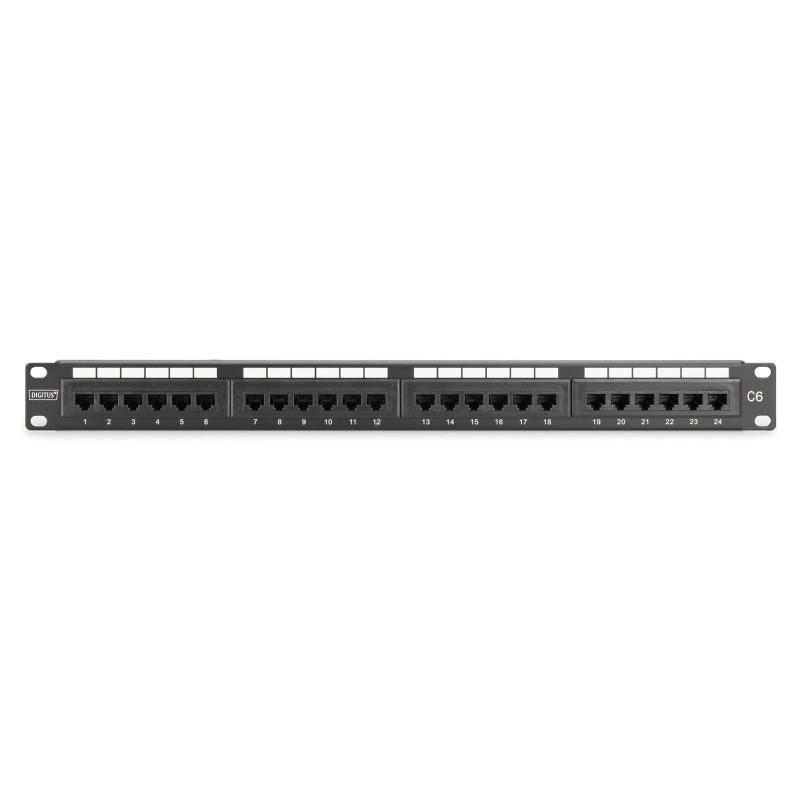

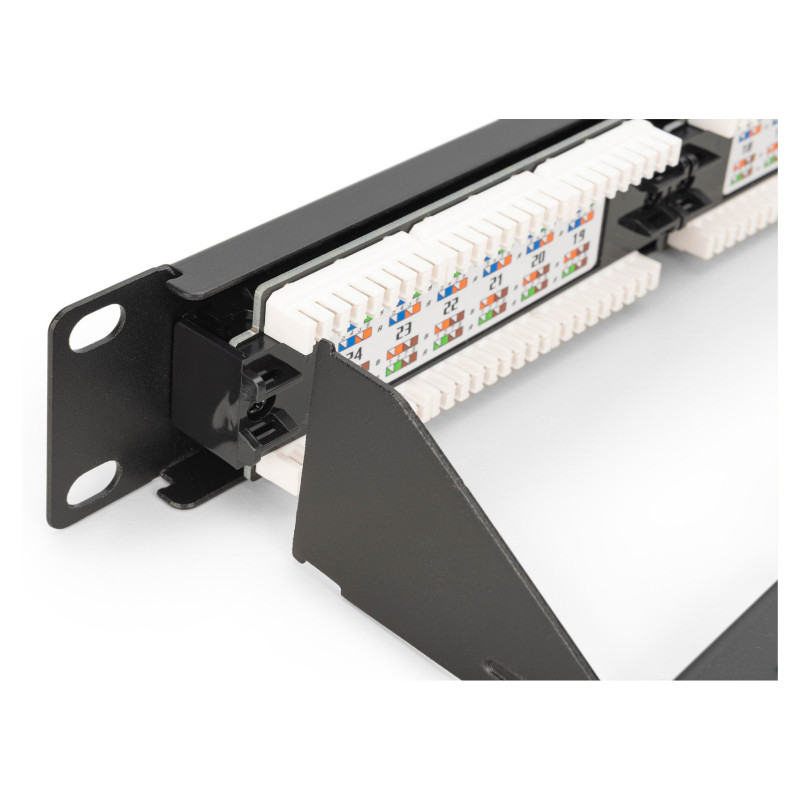

Digitus DN-91624U-CR patch panel

Digitus CAT 6, class E patch panel, unshielded. Cabling technology: 10/100/1000Base-T(X), Connector(s): RJ-45, Connector contacts plating: Nickel. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Black. Width: 485 mm, Height: 45 mm, Depth: 30 mm. Package width: 560 mm, Package depth: 80 mm, Package height: 100 mm

Future-oriented standards and high-end quality for your network.

The unshielded CAT 6 patch panel from DIGITUS® is available as a 16- or 24-port (1 rack unit) or 48-port variant (2 rack units). It is manufactured in accordance with the requirements of Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173 and is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel and is therefore perfectly suited for 19" rack mounting.

Network

Cabling technology: 10/100/1000Base-T(X)
Ports quantity: 24
Connector(s): RJ-45
Connector contacts plating: Nickel
Cable types supported: Cat6
AWG wire size: 22/26
Plug/connector retention force: 30 N

Design

Product colour: Black
Material: Galvanized steel
Mounting: Rack mounting
Rack capacity: 1U

Power

Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -20 - 70 °C

Weight & dimensions

Width: 485 mm
Height: 45 mm
Depth: 30 mm
Weight: 510 g

Packaging data

Package width: 560 mm
Package depth: 80 mm
Package height: 100 mm
Package weight: 820 g
