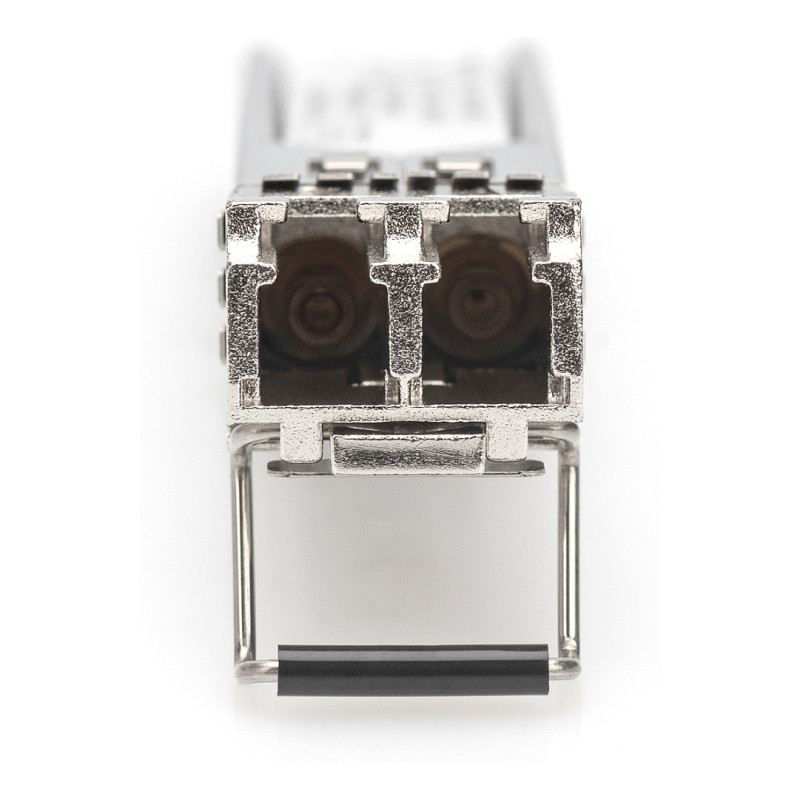

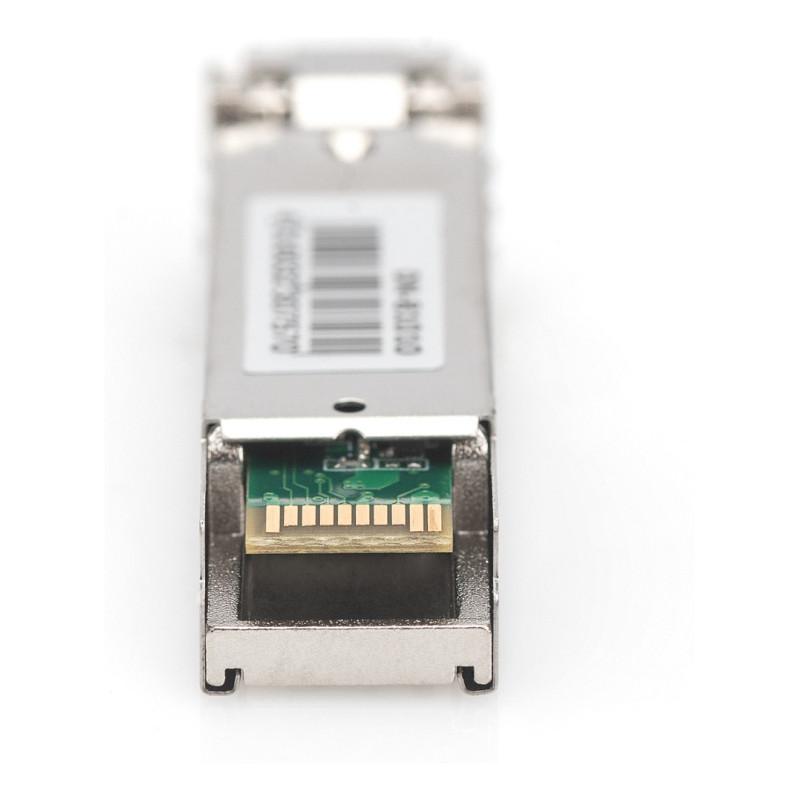

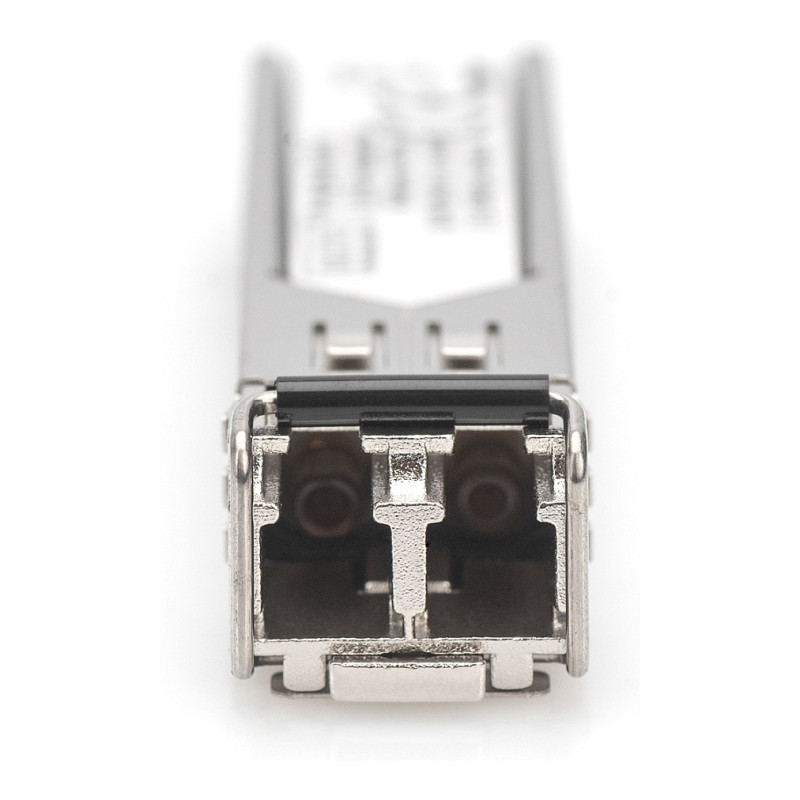

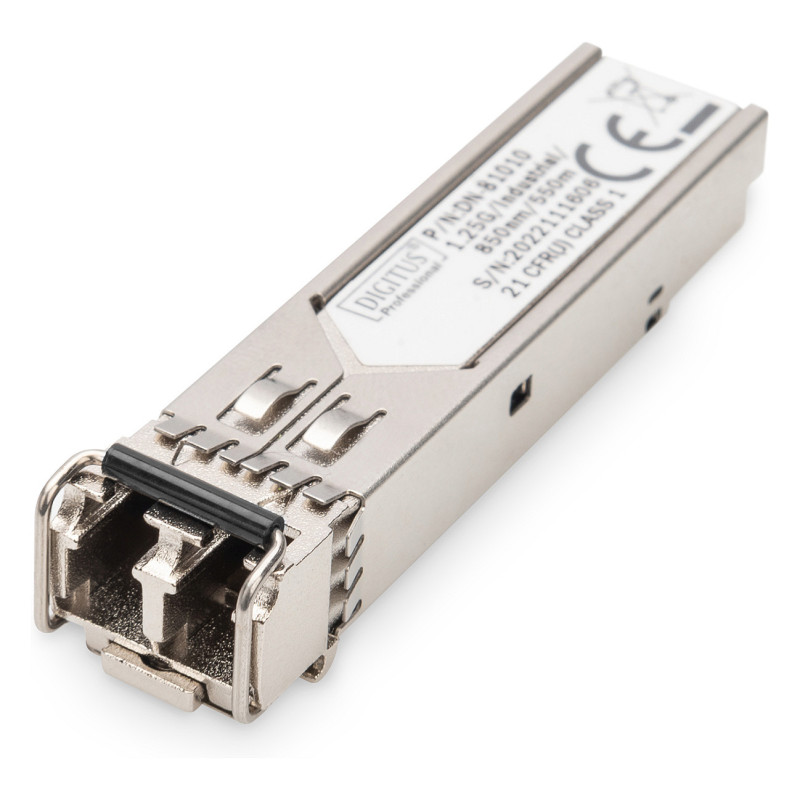

Digitus DN-81010 network transceiver module

Digitus Industrial mini GBIC (SFP) Module, 1.25 Gbps, 0.55km. Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP/GBIC, Fiber optic connector: LC. Brand compatibility: MSA Compliant. Package width: 70 mm, Package depth: 100 mm, Package volume: 140 cm³. Country of origin: China

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 0,55km at a maximum data rate of 1.25Gbps
- Operating temperature: -40 °C - +85 °C

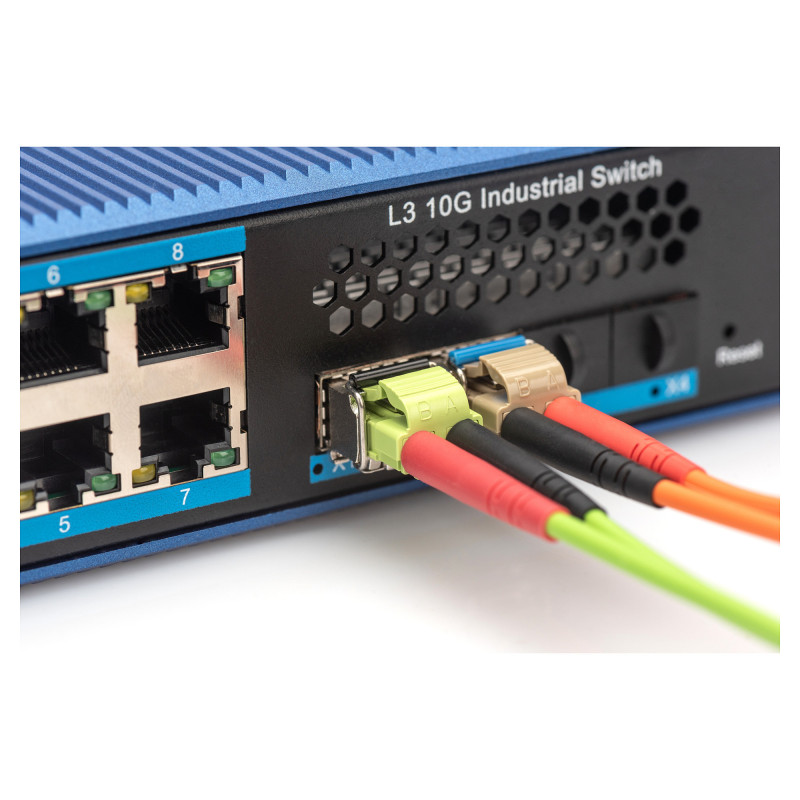

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Performance

Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP/GBIC
Feature: Multi-mode fiber (MMF) supported

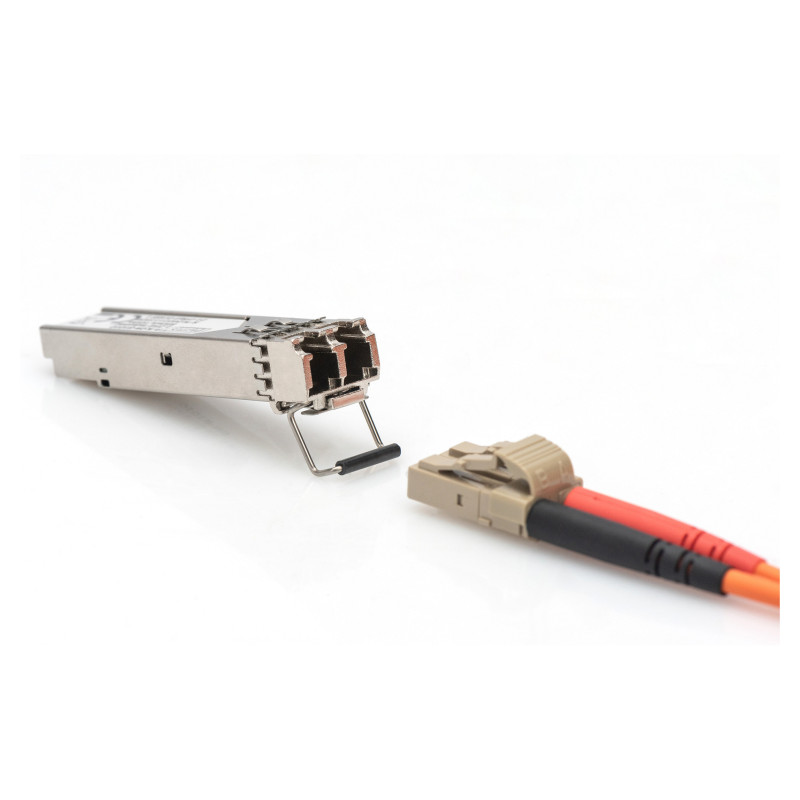

Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
Maximum transfer distance: 500 m
Wavelength: 850 nm
Tx power (min): -8 dBmW
Tx power (max): -3 dBmW
Rx power (min): -20 dBmW
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3z

Features

Brand compatibility: MSA Compliant

Packaging data

Package width: 70 mm
Package depth: 100 mm
Package volume: 140 cm³
Package weight: 35.417 g

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85369010
Country of origin: China
