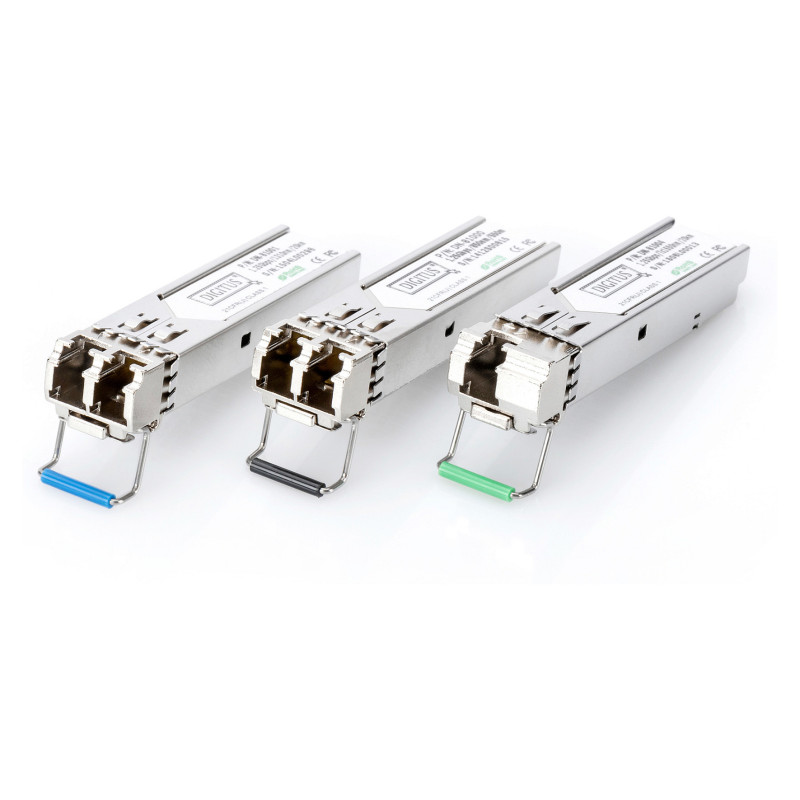

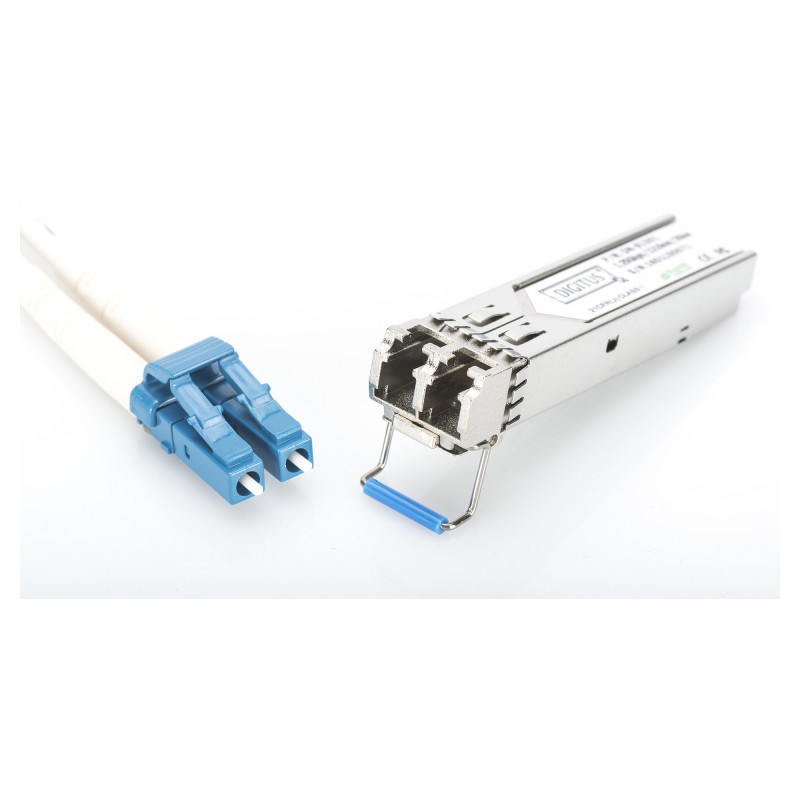

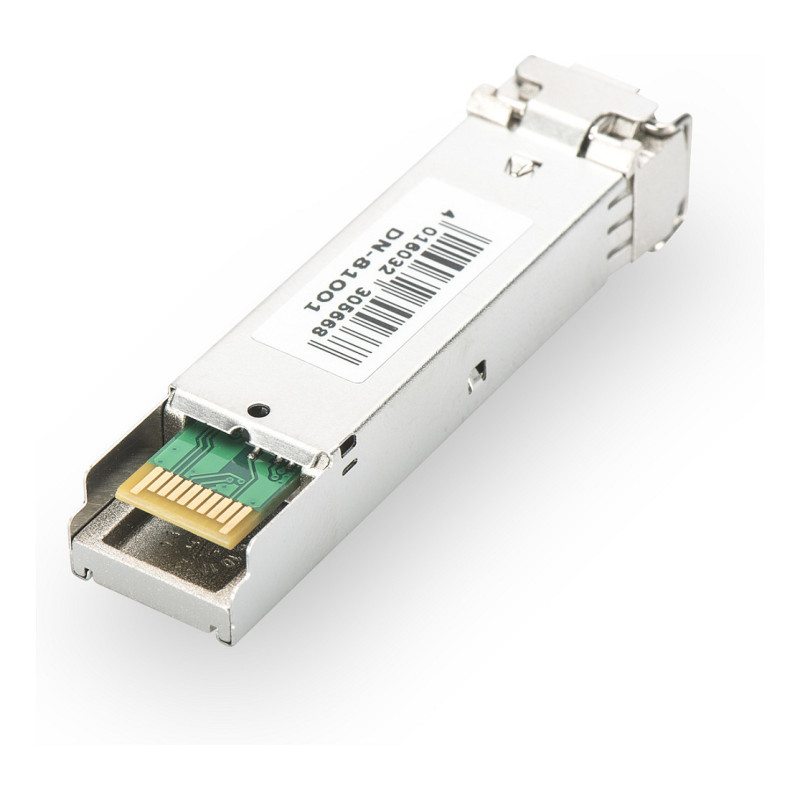

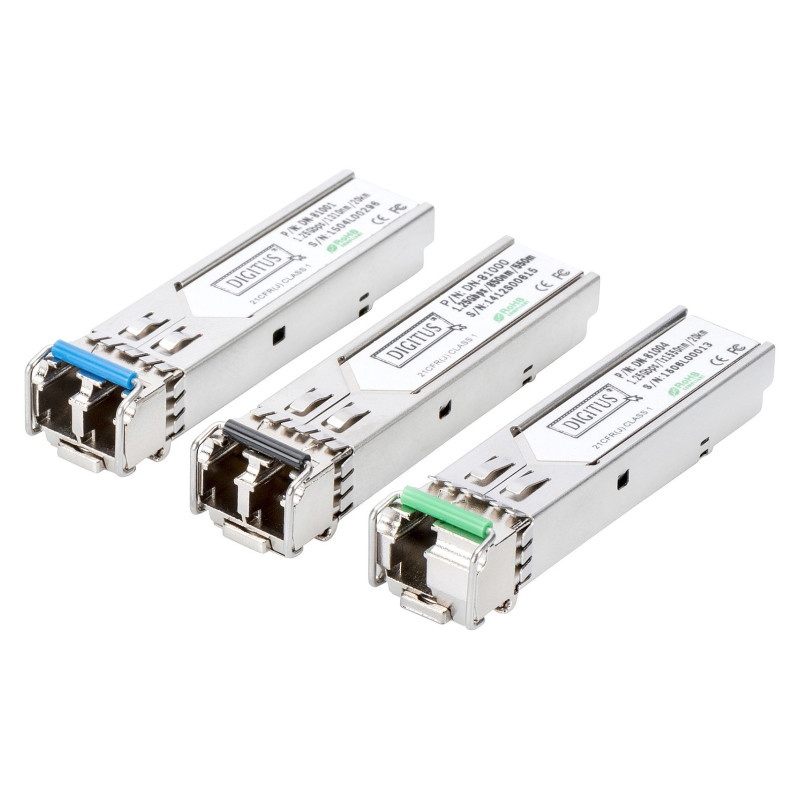

Digitus DN-81001 network transceiver module

Digitus mini GBIC (SFP) Module, 1.25 Gbps, 20km. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC. Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Certification: EN 60825-1. Package width: 120 mm, Package depth: 90 mm, Package volume: 324 cm³

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Interface type: mini-GBIC
Feature: Single-mode fiber (SMF) supported
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: LC
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.3z

Features

Brand compatibility: MSA Compliant

Power

Input voltage: 3.3 V

Certificates

Certification: EN 60825-1

Packaging data

Package width: 120 mm
Package depth: 90 mm
Package volume: 324 cm³
Package weight: 35.417 g

Logistics data

UK Trade Tariff code: 85176200
Harmonized System (HS) code: 85369010
Country of origin: China
