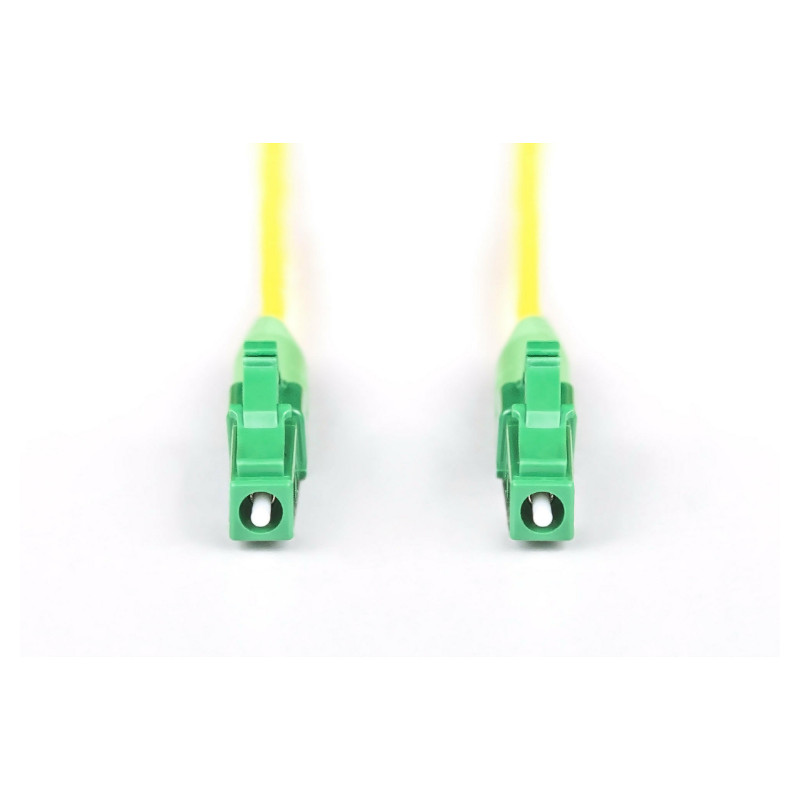

Digitus DK-2933-03-APC-SX InfiniBand / fibre optic cable

Digitus Fiber Optic simplex patch cable, Singlemode, LC/APC - LC/APC, 3 m. Cable length: 3 m, Cable type: LC/APC, Fibre optic type: G.657.A2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex
High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.
- High flexibility
- Bend insensitive
- High precision and low insertion loss
- Compliant with G.657.A2
The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.

Features

Cable length: 3 m
Fibre optic type: G.657.A2
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Cable type: LC/APC
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Wavelengths supported: 1310 nm
Insertion loss: 0.3 dB
Jacket material: Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -20 - 85 °C

Weight dimensions

Cable diameter: 2 mm
Bending radius: 7.5 mm

Packaging data

Package width: 290 mm
Package depth: 5 mm
Package height: 190 mm

Packaging content

Quantity per pack: 1 pc(s)
