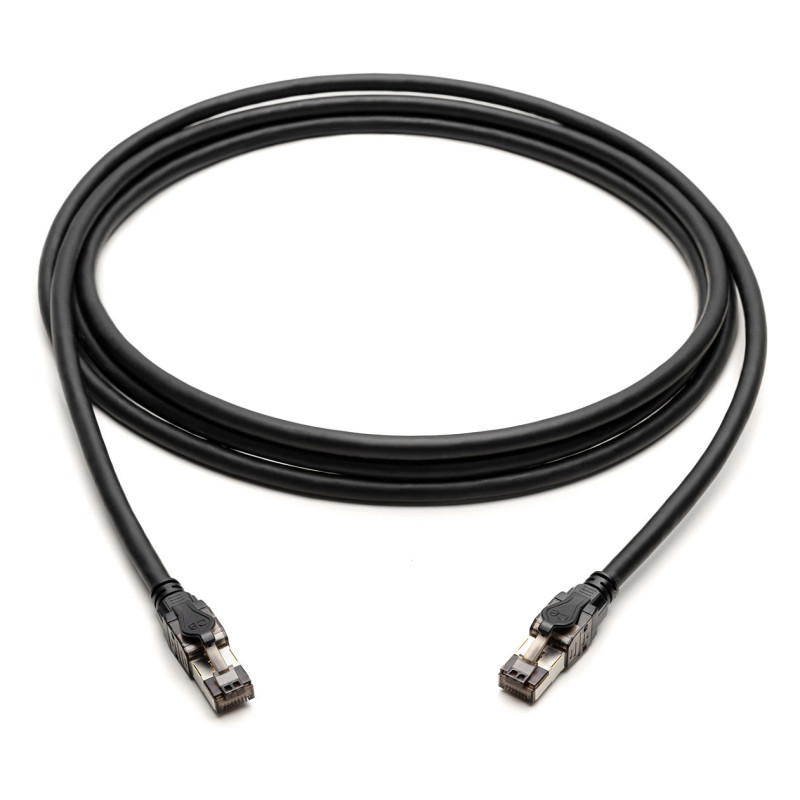

Digitus DK-1843-050 networking cable

Digitus CAT 8.1 S/FTP patch cable, 5 m. Cable length: 5 m, Cable standard: Cat8.1, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Black

The high-end network solution according to the CAT 8.1 standard

- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance

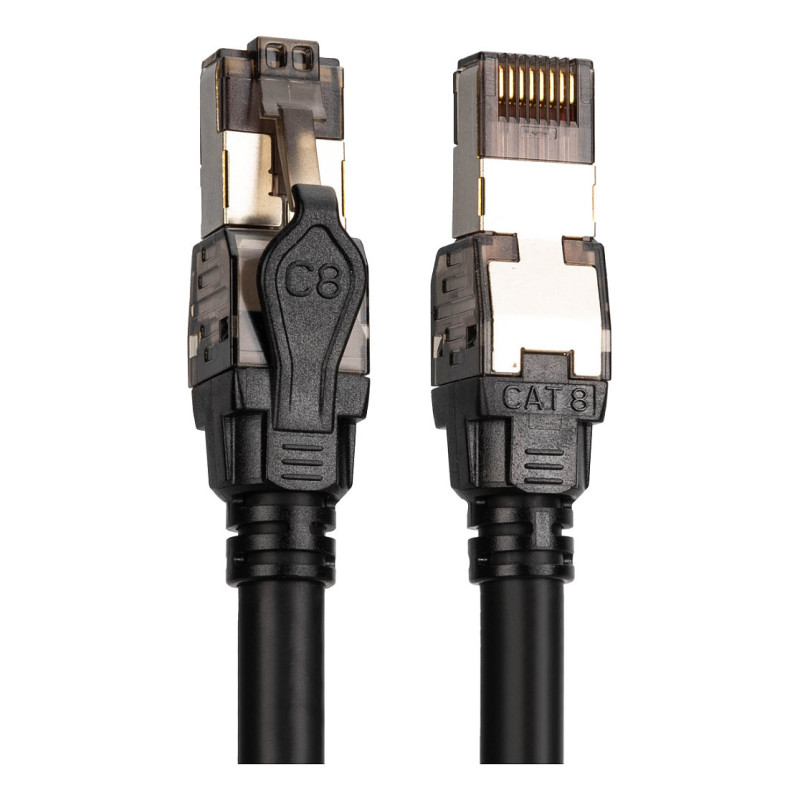

- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards

The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.

Features

Product colour: Black
Cable length: 5 m
Cable standard: Cat8.1
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Feature: Connector shielding
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor material: Copper
AWG wire size: 24/7
Frequency: 2000 MHz
Bend radius (min): 1.5 cm
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): -20 - 60 °C

Certificates

Certification: IEC 60332-1IEC 61034SO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5

Weight & dimensions

Outer diameter: 8 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 340 mm
Package depth: 370 mm
Package height: 10 mm
Package weight: 240 g
