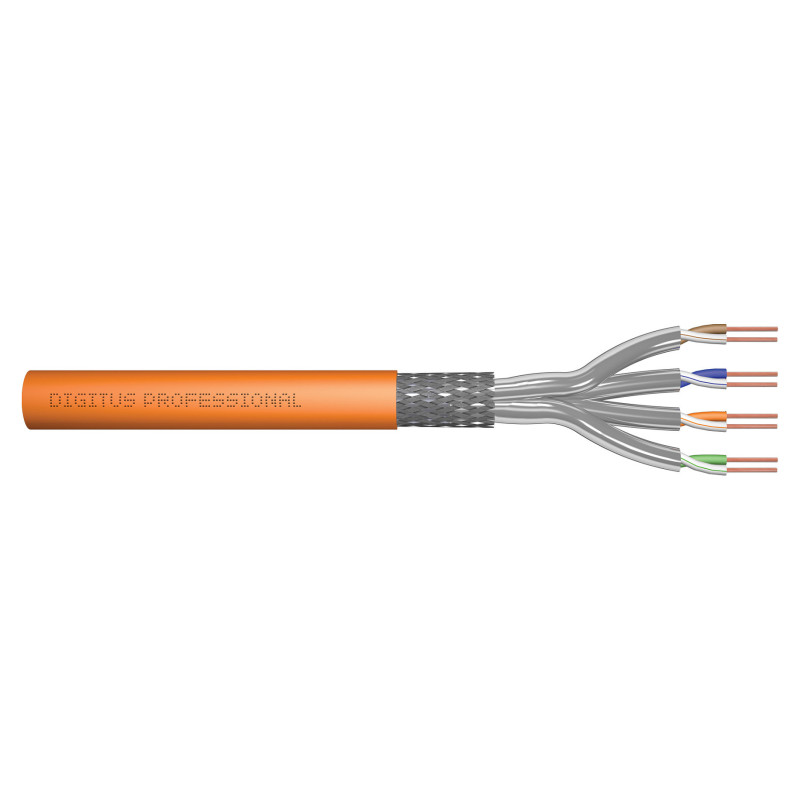

Digitus DK-1744-VH-5 networking cable

Digitus CAT 7 S/FTP data cable - installation cable, 500 m, simplex, Cca-s1a d1 a1. Cable length: 500 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Product colour: Orange
Future-oriented standards and high-end quality for your network.
- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
- BauPVO class Cca-s1a d1 a1
The Digitus Cat 7 installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 60332-3-24, EN 50575. The cable is ideal for the transmission of analog and digital data and supports PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt). The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

Features

Product colour: Orange
Cable length: 500 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Low smoke zero halogen (LSZH)
Conductor type: Solid
Conductor material: Copper
AWG wire size: 23/1
Frequency: 1200 MHz
Country of origin: China

Operational conditions

Operating temperature (T-T): -20 - 75 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CPR class Cca

Weight dimensions

Outer diameter: 7.2 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 540 mm
Package depth: 540 mm
Package weight: 27 kg
Package volume: 99144 cm³

Logistics data

Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
