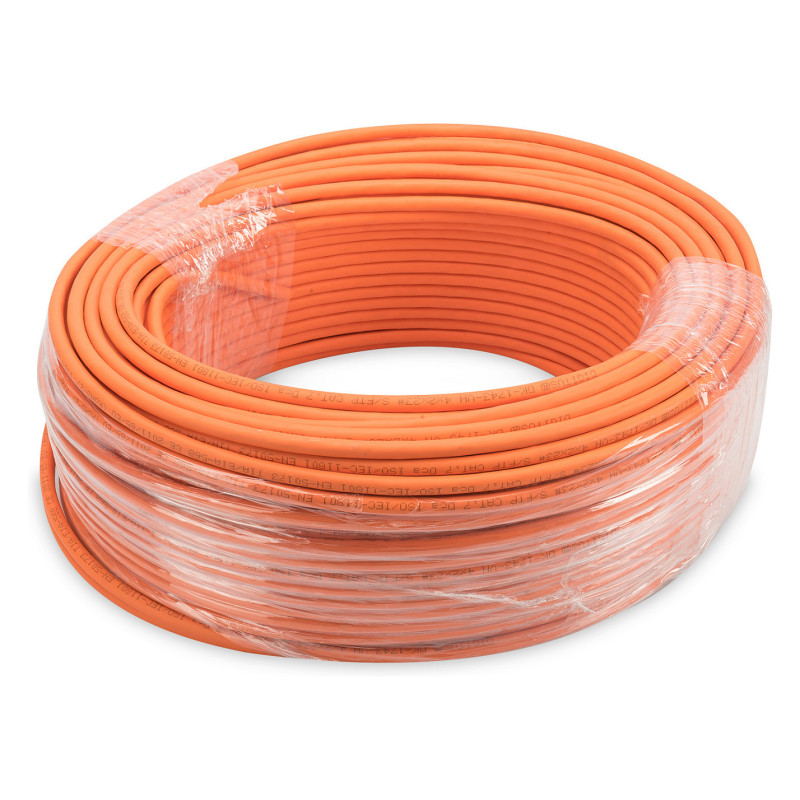

Digitus DK-1743-VH-025 networking cable

Digitus CAT 7 S-FTP data cable - installation cable, 25 m, simplex, Dca-s2,d1,a1. Cable length: 25 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Product colour: Orange

10GBit Ethernet

- 1200 MHz transmission frequency
- Permanent Link certified
- PoE, PoE+, 4PPoE (IEEE 802.3af;3at;3bt)
- BauPVO class Dca-s2 d1 a1

The Digitus® Cat.7 S/FTP installation cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The halogen-free cable sheath conforms to the IEC 60332-3-24, FRNC-C, LSZH-3 and BauPVO Euroclass Dca standards. The cable is suitable for structured building cabling in secondary and tertiary areas. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Features

Product colour: Orange
Cable length: 25 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Solid
Conductor material: Copper
Cable class: F
Cabling technology: 10GBase-T
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Networking standards: IEEE 802.3an
AWG wire size: 23/1
Frequency: 1200 MHz
Feature: Plug and Play
Country of origin: China

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -20 - 75 °C

Certificates

Certification: CPR class Dca

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 300 mm
Package depth: 300 mm
Package weight: 1.35 kg
Package volume: 4950 cm³
Package type: Box

Logistics data

Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
