Digitus DK-1741-VH-1-OD networking cable

Digitus CAT 7 S/FTP data cable - underground installation cable, 100 m, simplex, PE. Cable length: 100 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Product colour: Black
Future-oriented standards and high-end quality for your network.
- 10GBit Ethernet
- 1200 MHz transmission frequency
- Permanent Link certified
- PoE Power over Ethernet support
- PE outer sheath, BauPVO class Eca inner sheath

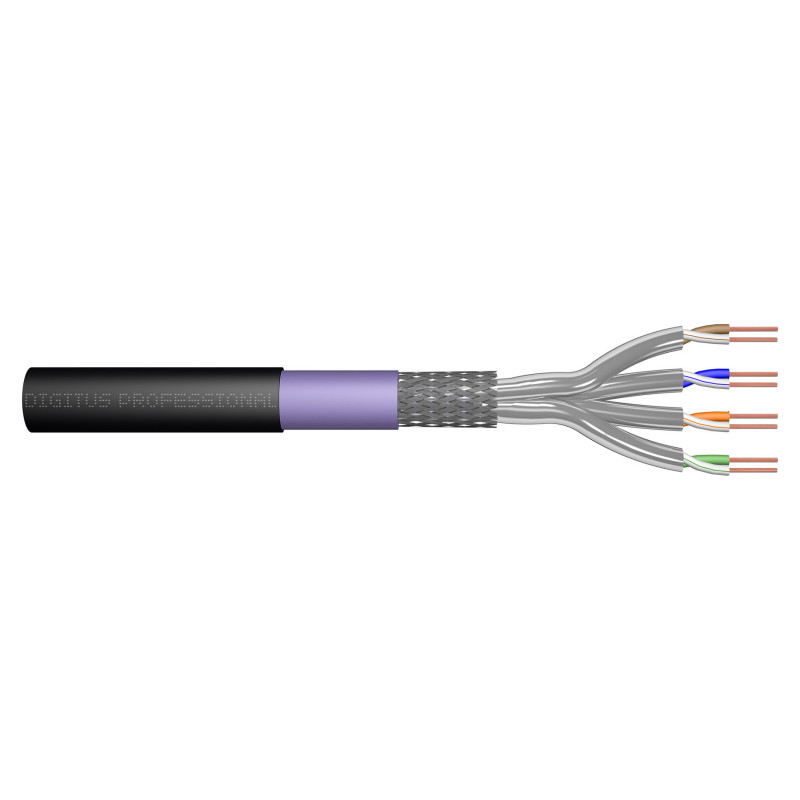

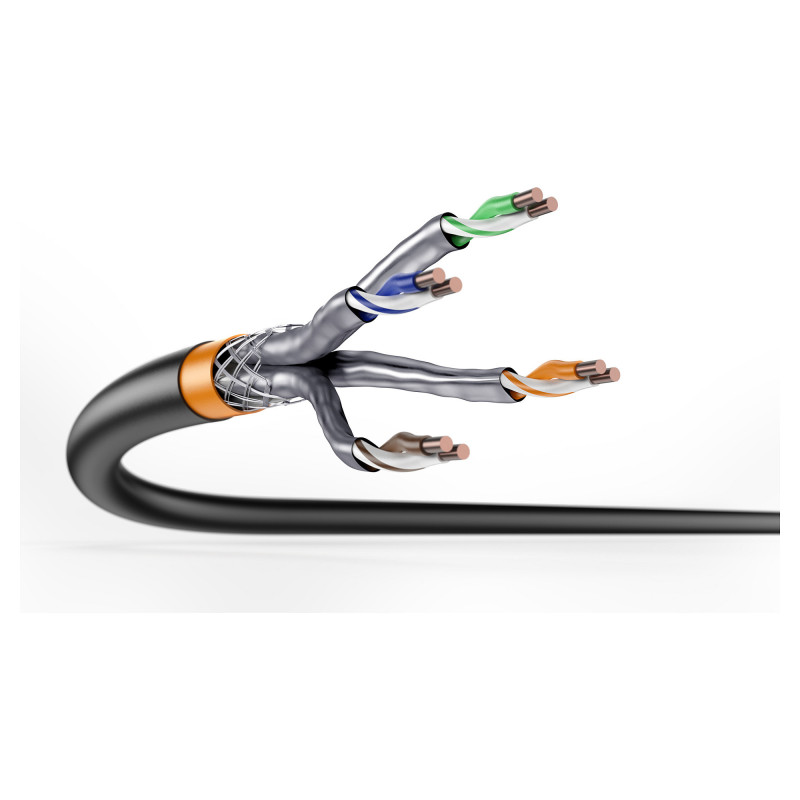

The Digitus® Professional Cat.7 S/FTP underground cable is characterized by the following cable structure 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The cable has a PE outer sheath and a halogen-free inner sheath and conforms to the IEC 60332-1, FRNC-B, LSZH-1 and BauPVO Euroclass Eca standards. The cable is suitable for installations in dry or damp rooms, outdoors or in the ground. Conforms to the standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Features

Product colour: Black
Cable length: 100 m
Cable standard: Cat7
Cable shielding: S/FTP (S-STP)
Connector 1: No
Connector 2: No
Connector 1 gender: No
Connector 2 gender: No
Jacket material: Polyethylene (PE)
Conductor type: Solid
AWG wire size: 23/1
Frequency: 1200 MHz
Country of origin: China

Certificates

Certification: CPR class Eca

Packaging data

Package width: 320 mm
Package depth: 150 mm
Package weight: 5.75 kg
Package volume: 15360 cm³

Logistics data

Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444920
