Digitus DK-1644-150 networking cable

Digitus CAT 6 S/FTP Patch Cable, 15 m, Gray. Cable length: 15 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 1000 Mbit/s, Product colour: Grey

Future-oriented standards and high-end quality for your network.

- With an LSZH (Low Smoke Zero Halogen) outer jacket for optimal fire resistance and low smoke emissions.

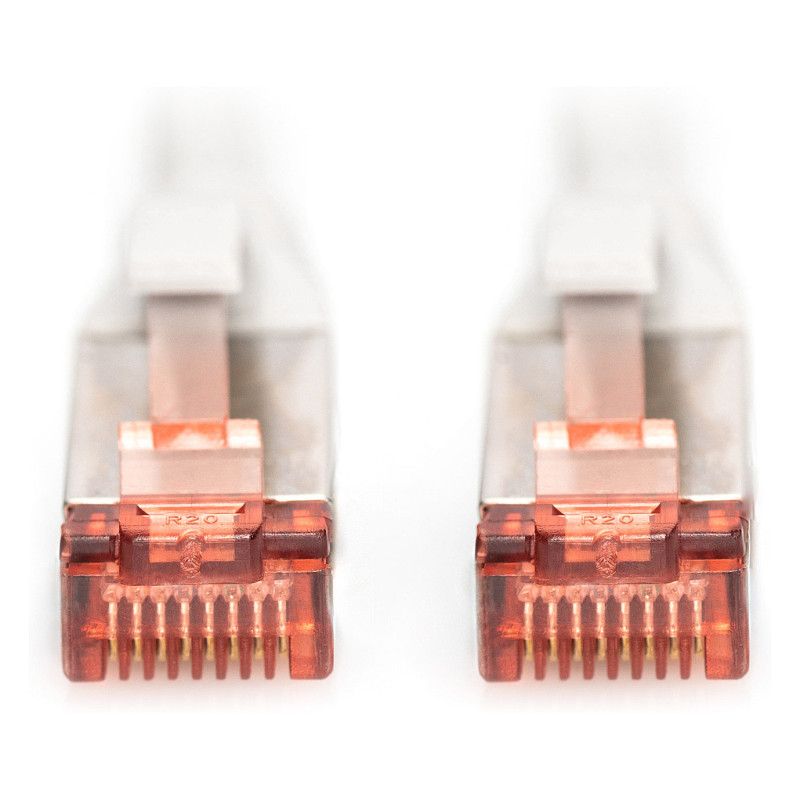

- Transparent red connector with metal shielding for easy identification of Category 6 (250 MHz)
- Inner conductor: Copper (Cu)
- Supports: PoE, PoE+, PoE++ (IEEE 802.3af; 3at; bt)

DIGITUS® Category 6 Class E patch cables are manufactured and tested in accordance with the ISO/IEC 11801 and DIN EN 50173 CAT 6 standards. They ensure that the cable installation complies with the ISO & EN channel specifications and deliver outstanding performance in DIGITUS® CAT 6 cabling. Performance has been tested up to 250 MHz, including performance characteristics such as near-end crosstalk (NEXT). DIGITUS® patch cables have been specially developed to fully meet all requirements across various application areas. Each cable is equipped with an injection-molded kink-protection sleeve with strain relief. In addition, the sleeve features a latch protection mechanism that prevents the cables from getting snagged and the latch from breaking off the connector. The red color of the connectors makes it easy to identify Category 6 cables.

Features

Product colour: Grey
Cable length: 15 m
Cable standard: Cat6
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Connector shield material: Metal foil
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor type: Stranded
Conductor material: Copper
Twisted pair coupling type: 4x2
Cable class: F
Cabling technology: 10/100/1000Base-T(X)
AWG wire size: 27/7
Data transfer rate: 1000 Mbit/s
Frequency: 250 MHz
Feature: Plug and Play
Country of origin: China

Certificates

Certification: UL

Packaging data

Package width: 230 mm
Package depth: 30 mm
Package height: 320 mm
Package weight: 480 g
Package volume: 2208 cm³
Package type: Polybag

Other features

Feature: Mac compatibility
Quantity: 1

Logistics data

Harmonized System (HS) code: 84733080
UK Trade Tariff code: 85444210

Technical details

Shielding type: Foil + braiding
