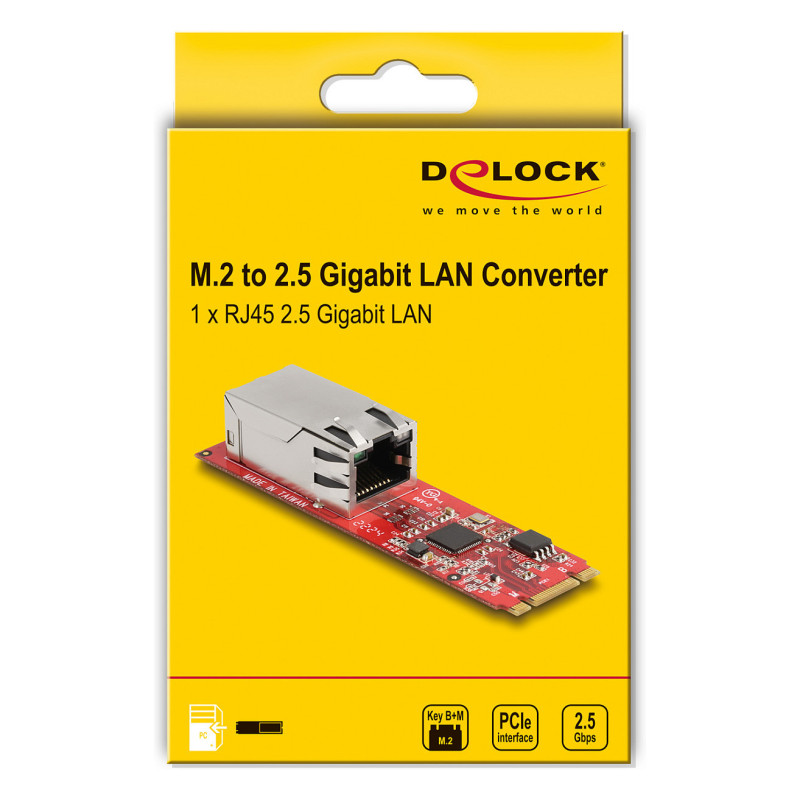

DeLOCK 62985 network card

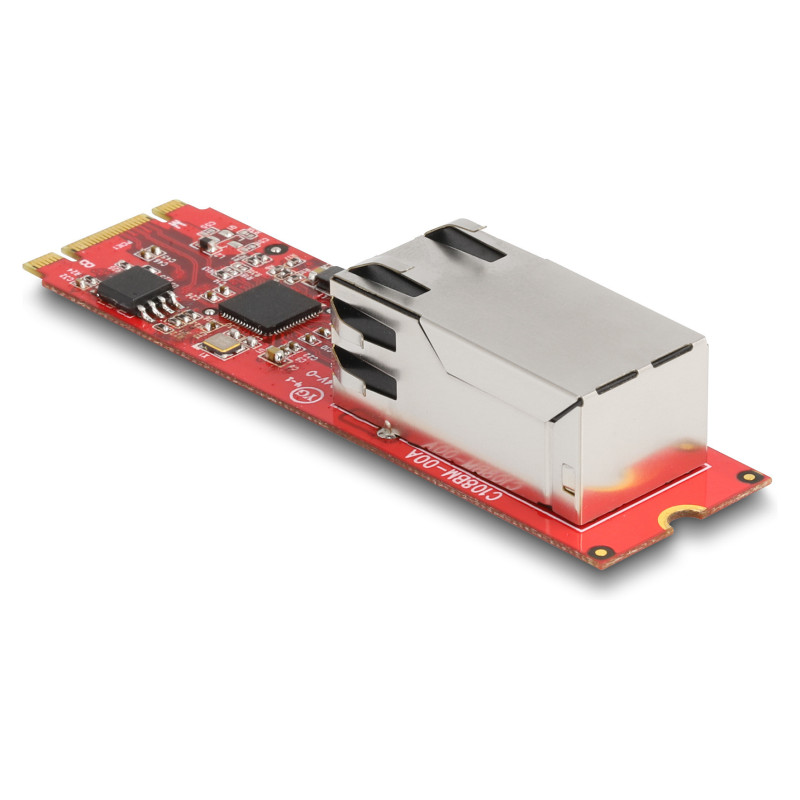

DeLOCK Converter M.2 Key B+M male to 1 x RJ45 2.5 Gigabit LAN port horizontal. Internal. Connectivity technology: Wired, Host interface: M.2, Interface: Ethernet. Maximum data transfer rate: 2500 Mbit/s. Product colour: Red

This converter by Delock expands the system by one RJ45 2.5 Gigabit LAN port.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

Ports & interfaces

Connectivity technology: Wired
Host interface: M.2
Interface: Ethernet
Ethernet LAN (RJ-45) ports: 1
PCI version: 2.0

Network

Maximum data transfer rate: 2500 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Cabling technology: NBase-T
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Product colour: Red
Feature: Internal
Chipset: Intel I225-V
LED indicators: Activity, Link
Country of origin: Taiwan

System requirements

Windows operating systems supported: Windows 10, Windows 11
Linux operating systems supported: Linux Kernel 5.15

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 22 mm
Depth: 80 mm
Height: 16 mm

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE
