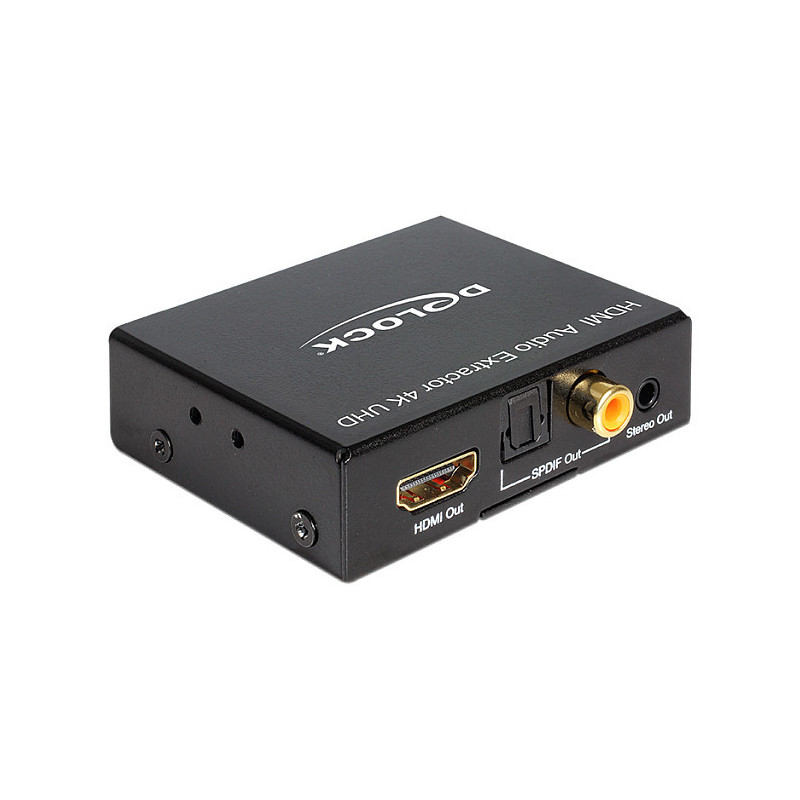

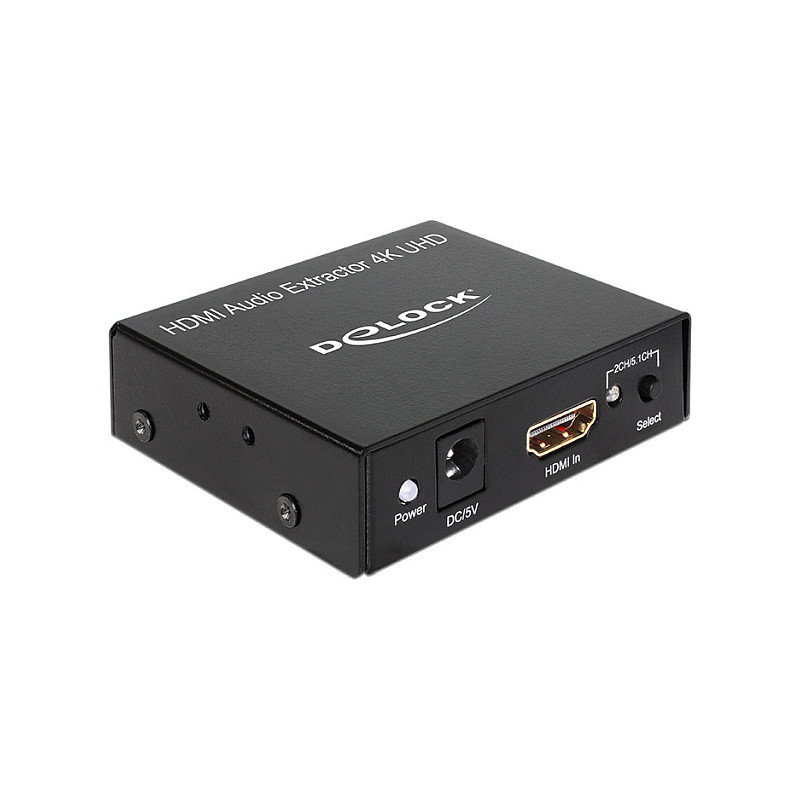

DeLOCK 62692 AV extender

DeLOCK 62692. Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, LED indicators: Power. Audio output: S/PDIF. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Dimensions (WxDxH): 61 x 71 x 21 mm. Cables included: USB

This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver.

Features

Type: AV receiver
Maximum resolution: 3840 x 2160 pixels
LED indicators: Power
Bandwidth: 3 Gbit/s
Bandwidth: 300 MHz
Cable length: 1 m
Feature: HDCP
Material: Metal
Product colour: Black

Ports & interfaces

HDMI in: 1
Number of HDMI outputs: 1
Audio output: S/PDIF
Feature: 3.5 mm (1/8-inch) out
Feature: DC-in jack

Power

AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Operating voltage: 5 V
Input current: 0.3 A
Output current: 1 A
Power consumption (max): 2.5 W

Weight & dimensions

Dimensions (WxDxH): 61 x 71 x 21 mm

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Manual
Feature: Mounting brackets included
