Conceptronic DONN34G laptop dock / port replicator

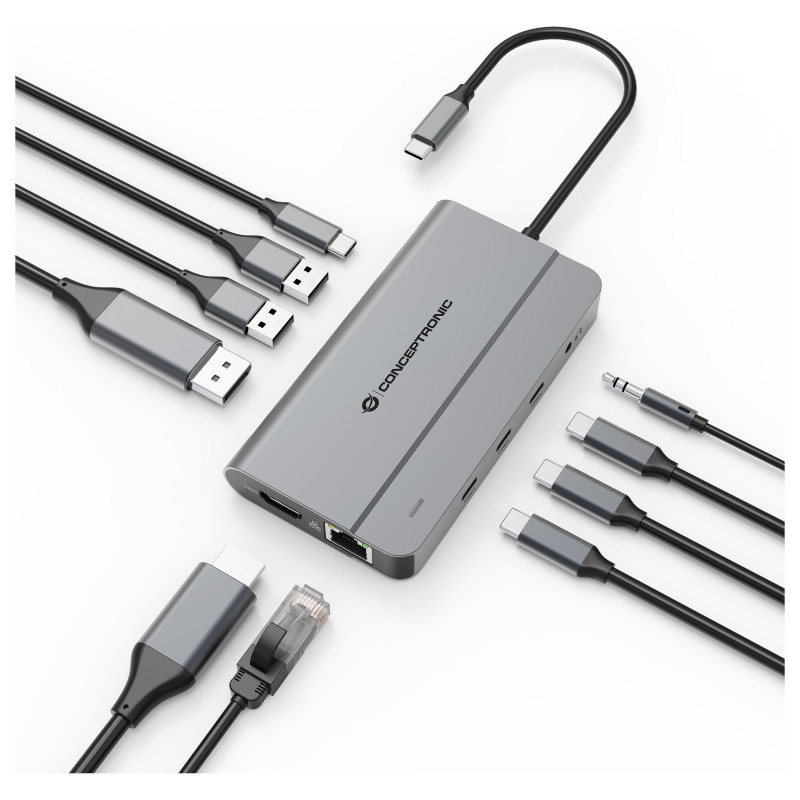

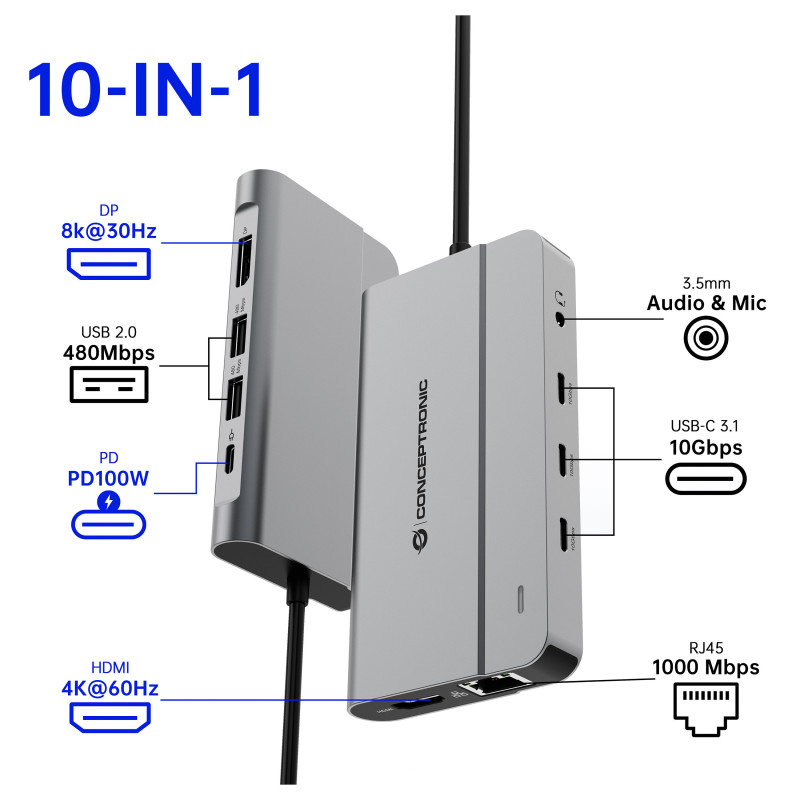

Conceptronic DONN34G 10-in-1 USB 3.2 Gen 2 MST Docking Station, 4K60Hz HDMI, 8K30Hz DisplayPort, GbE, USB-C 10Gbps x 3, USB-A 480Mbps x 2, Audio, 100W USB PD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 8K Ultra HD. USB cable length: 0.2 m. Other operating systems supported: ChromeOS

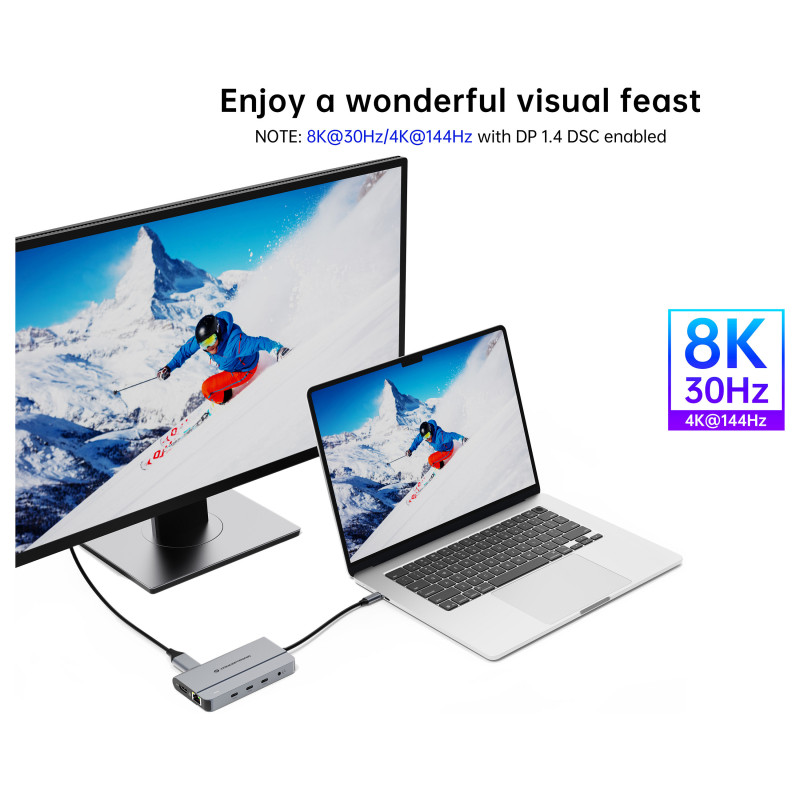

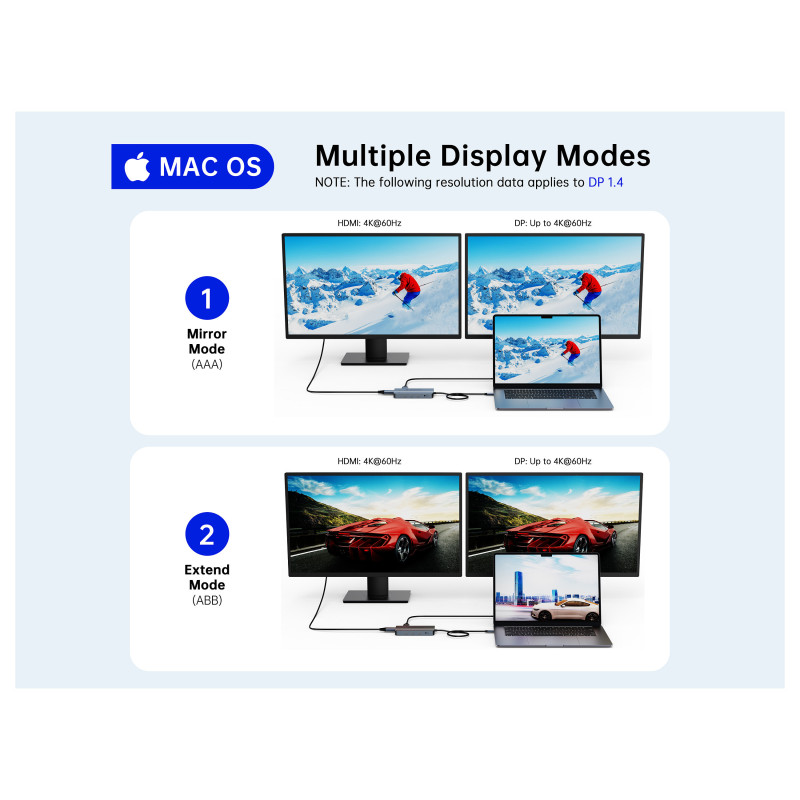

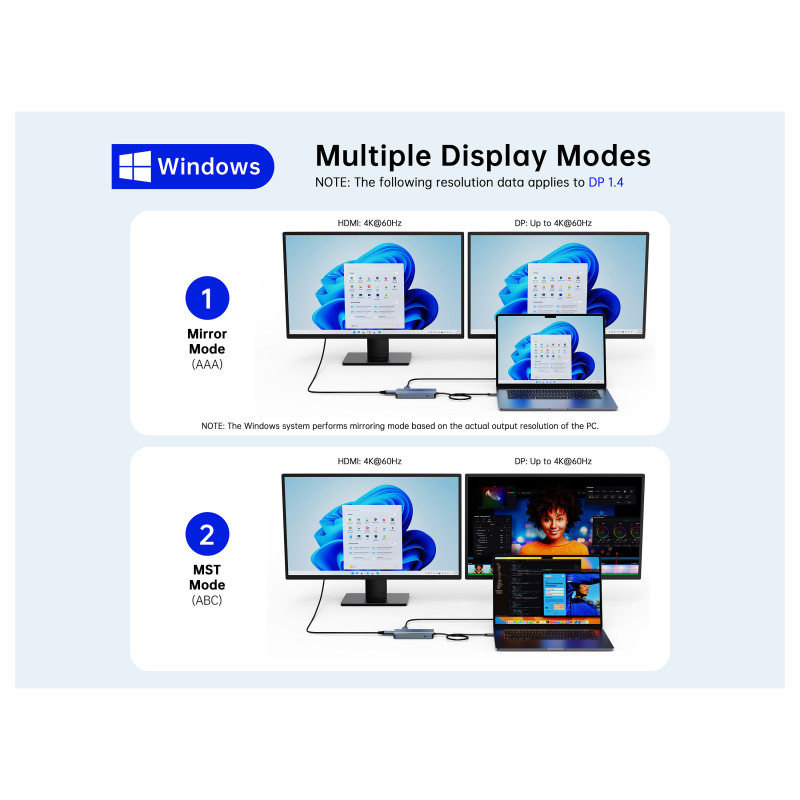

The 10-in-1 USB 3.2 Gen 2 MST Docking Station is a powerful and versatile connectivity solution designed to expand your workstation with maximum performance and flexibility. Supporting both HDMI and DisplayPort video outputs, it delivers exceptional image quality with resolutions up to 4K 60Hz and 8K 30Hz. Windows users can benefit from dual extended display support via MST, enabling efficient multitasking across multiple screens.

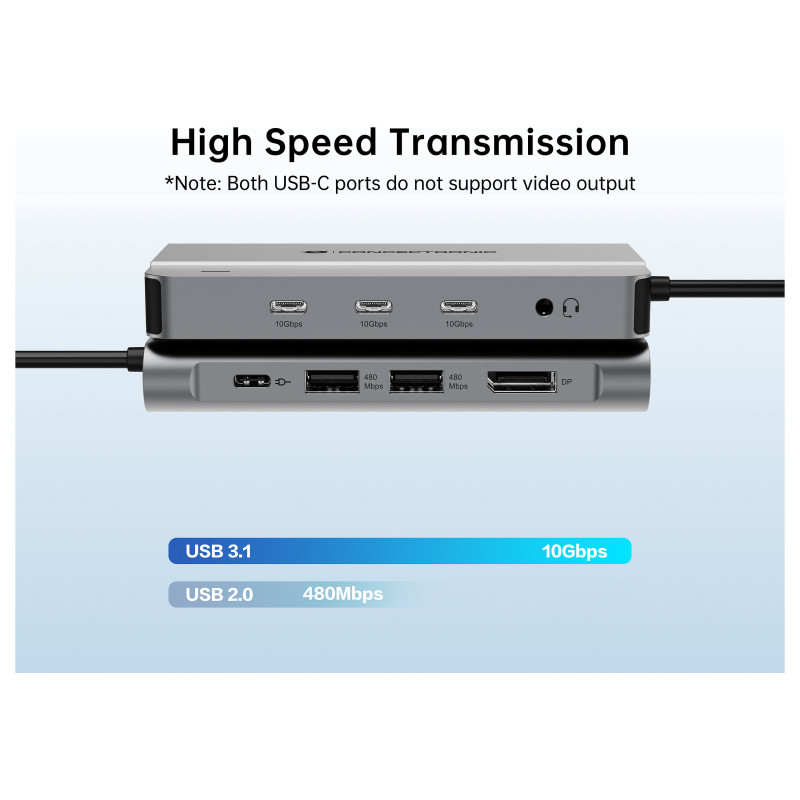

Featuring three high-speed USB-C ports with data transfer rates up to 10Gbps and two USB-A ports for everyday peripherals, this docking station provides reliable and seamless connectivity for all your essential devices. The integrated Gigabit Ethernet port ensures stable wired network performance up to 1000 Mbps, ideal for office environments and bandwidth-intensive tasks.

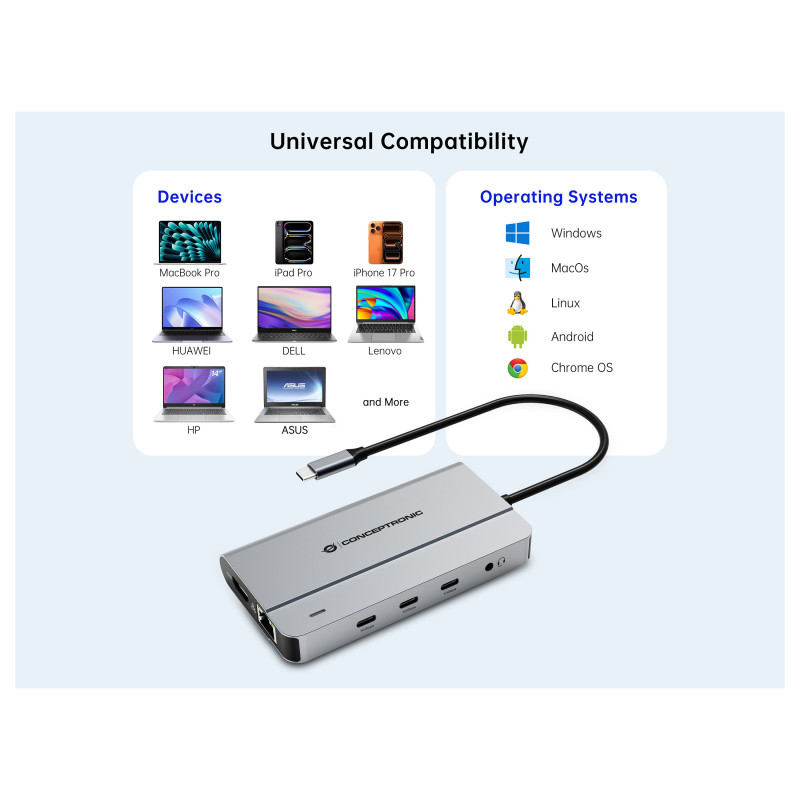

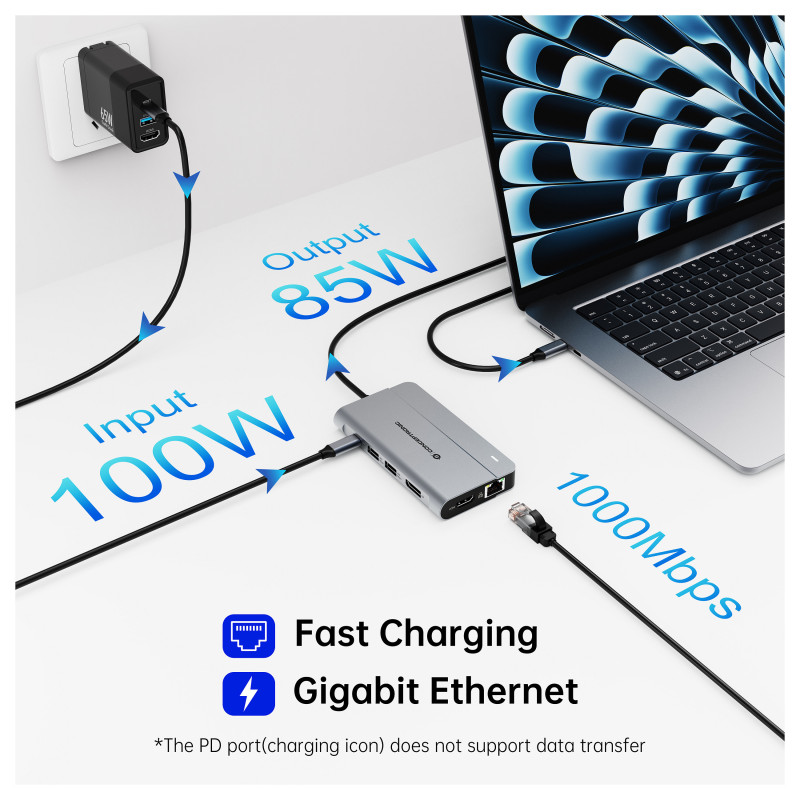

With USB-C Power Delivery pass-through up to 100W, you can power and charge your laptop while maintaining full functionality of connected devices. The built-in 3.5 mm combo audio jack allows convenient connection of headsets for clear communication during meetings and calls. Housed in a durable aluminum casing for efficient heat dissipation, this docking station supports simple Plug and Play installation and offers wide compatibility with Windows, macOS, and ChromeOS. It is a complete, professional solution for streamlined and productive workspaces.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 4
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Networking standards: IEEE 802.3ab

Performance

Data transfer rate: 10 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Product colour: Grey
Feature: Plug and Play
Housing material: Aluminium
Country of origin: China

Power

USB cable length: 0.2 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight & dimensions

Width: 64.6 mm
Depth: 120 mm
Height: 17 mm
Weight: 157 g

Packaging data

Package width: 95 mm
Package depth: 200 mm
Package height: 20 mm
Package weight: 200 g

Packaging content

Feature: Quick start guide

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 40 pc(s)
Master (outer) case width: 220 mm
Master (outer) case length: 400 mm
Master (outer) case height: 255 mm
Master (outer) case gross weight: 8.9 kg
Customs product code (TARIC): 8471800000
Pallet gross width: 120 cm
Pallet gross length: 80 cm
Pallet gross height: 168.2 cm

Other features

Master (outer) cases per pallet: 60 pc(s)
