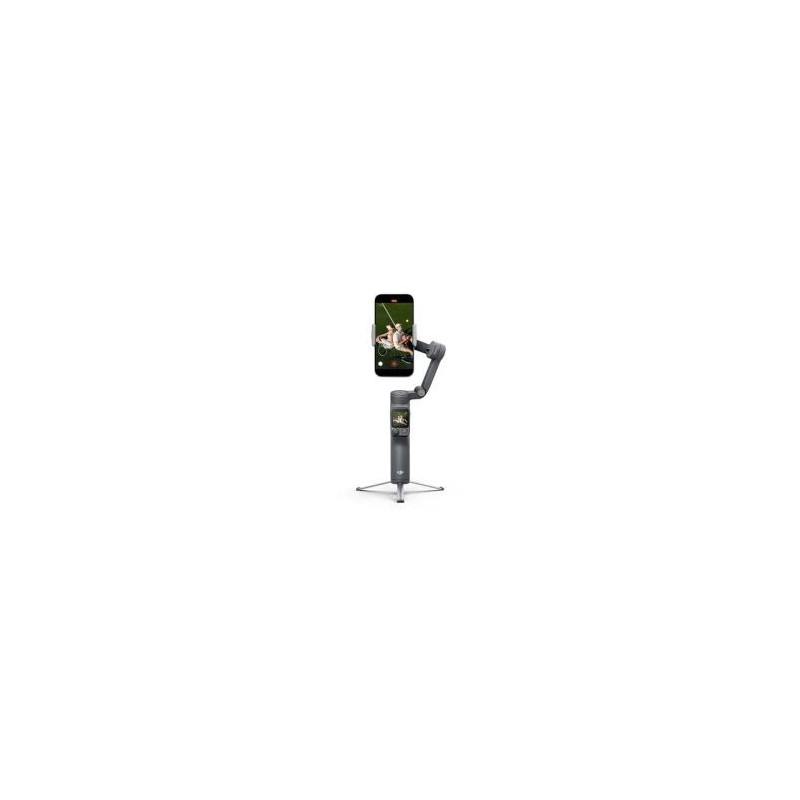

DJI Osmo Mobile 8P Standard Combo Gray EU CP.OS.00000617.01

Technical specifications:

General

• Dimensions (Unfolded): 291 × 110 × 101 mm (L × W × H)


• Dimensions (Folded): 196 × 105 × 38 mm (L × W × H)


• Weight: Approx. 386 g (Gimbal + Built-in Tripod + Magnetic Phone Clamp 5 + Multifunctional Module 2 + Osmo FrameTap)

Extension Rod

• Type: Built-in Extension Rod


• Max Extension Length: 215 mm

Compatibility

• Compatible Phone Weight: 170-300 g


• Compatible Phone Thickness: 6.9-11 mm


• Compatible Phone Width: 67-84 mm

Bottom Port: Type: 1/4″-20 UNC port

Tripod

• Type: Built-in Tripod


• Length: 82 mm

Battery

• Type: Li-Po 1S


• Capacity: 3350 mAh


• Energy: 12.06 Wh


• Charging Temperature: 5° to 40° C (41° to 104° F)


• Operating Temperature: 0° to 40° C (32° to 104° F)


• Operating Time: Approx. 10 hours


• Charging Time: Approx. 2.5 hours

Gimbal

• Controllable Range:




  • Pan: 360° (unlimited rotation)


  • Roll: -52° to 256°


  • Tilt: -37° to 55°






• Mechanical Range:




  • Pan: 360° (unlimited rotation)


  • Roll: -77° to 255°


  • Tilt: -224° to 100°






• Max Control Speed: 120°/s

Wireless Mode: Bluetooth 5.3

Software App: DJI Mimo

Multifunctional Module 2

• Fill Light Illuminance: 40 lux (measured at 0.6 m)


• Fill Light Color Temperature: 2500-6500 K

Osmo FrameTap

• Wi-Fi Video Transmission Distance: 25 m


• Wi-Fi Protocol: 802.11 a/b/g/n/ac/ax


• Wi-Fi Operating Frequency: 2.400-2.4835 GHz, 5.725-5.850 GHz


• Wi-Fi Transmitter Power (EIRP):




  • 2.4 GHz: < 20 dBm (CE/SRRC/MIC)


  • 5.8 GHz: < 23 dBm (SRRC), < 14 dBm (CE)






• Bluetooth Video Transmission Distance: 10 m


• Bluetooth Protocol: Bluetooth 5.4, BR/EDR


• Bluetooth Operating Frequency: 2.400-2.4835 GHz


• Bluetooth Transmitter Power (EIRP): < 10 dBm

Touchscreen

• Size: 1.4 inches


• Resolution: 240 × 240


• Brightness: 800 cd/m² ± 10%


• Frame Rate: 60 Hz

GNSS: Supported Systems: GPS L1, Beidou B1, Galileo E1, QZSS L1, GLONASS G1

Dimensions (Multifunctional Module 2)

• Size: 53 × 37 × 19 mm (L × W × H)


• Weight: 29 g

Waterproof: Not waterproof

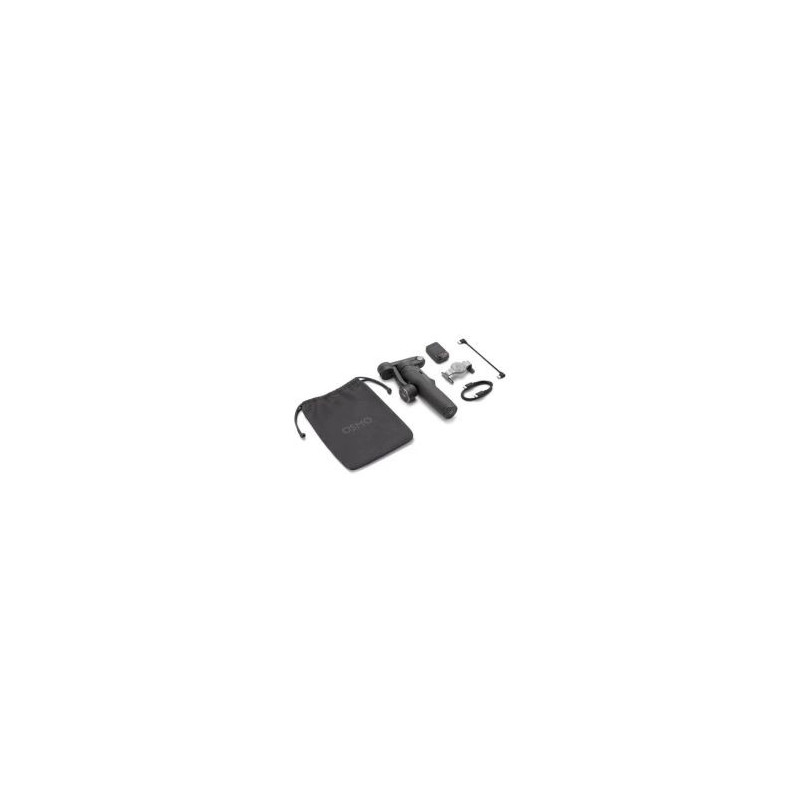

In the Box

• Osmo Mobile 8P × 1


• DJI OM Magnetic Phone Clamp 5 × 1


• Osmo FrameTap × 1


• Power Cable (USB-C to USB-C, 50 cm) × 1


• Phone Charging Cable (USB-C to USB-C, 15 cm) × 1


• Storage Pouch × 1
