DJI Action Camera Osmo Pocket 4 Standard Combo Black EU (CP.OS.00000545.05)

Technical specifications:

General:

• Dimensions: 144.2×44.4×33.5 mm (L×W×H)


• Weight: 190.5 g


• Number of Microphones: 3

Touchscreen:

• Size: 2.0 inches


• Resolution: 556×314


• Brightness: 1000 nits

Supported SD Cards: microSD (up to 1 TB)

Gimbal:

• Controllable Range:




  • Pan: -235° to 58°


  • Tilt: -120° to 70°


  • Roll: -45° to 45°






• Mechanical Range:




  • Pan: -240° to 63°


  • Tilt: -180° to 98°


  • Roll: -220° to 63°






• Max Controllable Speed: 180.0°/s


• Angular Vibration Range: ±0.005°

Camera:

• Sensor: 1-inch CMOS


• Lens:




  • Format Equivalent: 20 mm


  • Aperture: f/2.0


  • Focus Range: 0.2 m to ∞






• ISO Range:


• Photo: 50-12800


• Video: 50-12800


• Low-Light Video: 50-25600


• Slow Motion: 50-12800


• Electronic Shutter Speed:


• Photo: 1/8000-4 s


• Video (Auto): 1/8000 s to the limit of frames per second


• Video (M): 1/8000-1/4 s


• Max Image Size:




  • 16:9: 7680×4320


  • 1:1: 6144×6144





Zoom:

• Digital Zoom:


• Photo: 7680×4320, 2×


• Video: 1080p, 4×; 3K, 4×; 4K, 4×


• UVC & DP: 4K, 4×


• Livestream: 1080p, 4×

Photography Modes:

• Single Shot: Approx. 37 MP


• Countdown: Off/0.5/1/2/3/5/10 s


• Panorama: 180°, 3×3

Video Modes:

• Normal Video:




  • 4K (16:9): 3840×2160@24/25/30/48/50/60fps


  • 1080p (16:9): 1920×1080@24/25/30/48/50/60fps


  • 3K (9:16): 1728×3072@24/25/30/48/50/60fps


  • 1080p (9:16): 1080×1920@24/25/30/48/50/60fps






• Slow Motion:




  • 4K (16:9): 3840×2160@100/120/200/240fps


  • 1080p: 1920×1080@120/240fps






• Hyperlapse: 4K/1080p@25/30fps (Auto/×2/×5/×10/×15/×30)


• Timelapse:




  • 4K/1080p@25/30fps


  • Intervals: 0.5-60 s


  • Duration: 5 mins to ∞ hours






• Motionlapse:




  • 4K/1080p@25/30fps


  • Intervals: 0.5-60 s


  • Duration: 5 mins to 10 hours


  • Supports setting four positions






• Low-Light Video:




  • 4K (16:9): 3840×2160@24/25/30fps


  • 1080p: 1920×1080@24/25/30fps





Video Details:

• Max Video Bitrate: 180 Mbps


• Supported File System: exFAT


• Photo Format: JPEG/DNG/JPEG+DNG


• Video Format: MP4 (HEVC)

Storage:

• Built-in: 107 GB


• Expandable: microSD (up to 1 TB)

Audio: Output: 48 kHz 16-bit; AAC

Battery:

• Type: Li-ion


• Capacity: 1545 mAh


• Energy: 11.95 Wh


• Voltage: 7.74 V


• Operating Time: 240 mins (tested at 1080p/24fps, Wi-Fi off, screen off)


• Charging Time: 18 mins to 80%; 32 mins to 100% (with DJI 65W Portable Charger)

Connection:

• Wi-Fi:




  • Operating Frequency: 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz


  • Protocol: 802.11 a/b/g/n/ac/ax






• Transmitter Power (EIRP):




  • 2.4 GHz: < 20 dBm


  • 5.1 GHz: < 23 dBm (SRRC), < 20 dBm (CE)


  • 5.8 GHz: < 23 dBm (SRRC), < 14 dBm (CE)






• Bluetooth:




  • Operating Frequency: 2.400-2.4835 GHz


  • Transmitter Power (EIRP): < 14 dBm


  • Protocol: BLE 5.4, BR/EDR

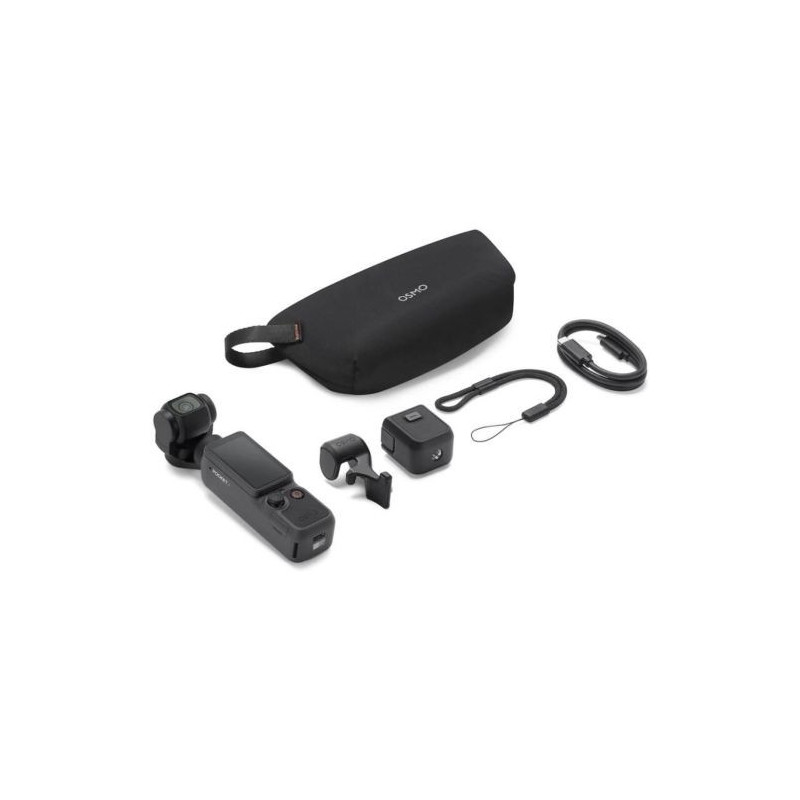

Items included:

• Osmo Pocket 4 × 1


• USB-C to USB-C PD Cable (USB 3.1) × 1


• Osmo Pocket 4 Gimbal Clamp × 1


• DJI Wrist Strap × 1


• Osmo Pocket 4 Handle With 1/4" Thread × 1


• Osmo Pocket 4 Portable Carrying Pouch × 1
