DJI Action Camera Osmo Action 5 Pro Adventure Combo 12 MPx 4k 120fps Black EU (CP.OS.00000350.03)

Specifications

General:

• Dimensions: 70.5 × 44.2 × 32.8 mm (L × W × H)


• Weight: 146 g


• Waterproof:


• 20 m without the Waterproof Case


• 60 m with the Waterproof Case (IP68 rating)


• Note: Ensure all covers are securely closed before use. Not suitable for hot springs or extreme underwater environments.

Display:

• Front Screen: 1.46-inch, 331 PPI, 342 × 342 resolution, 800 cd/㎡ max brightness (typical)


• Rear Screen: 2.5-inch, 326 PPI, 400 × 712 resolution, 800 cd/㎡ max brightness (typical), 1000 cd/㎡ peak brightness

Camera:

• Sensor: 1/1.3-inch CMOS


• Lens:




  • FOV: 155°


  • Aperture: f/2.8


  • Focus Range: 0.35 m to ∞






• ISO Range:




  • Photo: 100-25600


  • Video: 100-51200






• Max Photo Resolution: 7296 × 5472


• Digital Zoom:




  • Photo: Max 2x


  • Video: Max 2x






• Still Photography Modes: Single, Countdown, Burst (up to 30 images/3 seconds)

Video Recording:

• Standard Recording:




  • 4K (4:3): Up to 120fps


  • 4K (16:9): Up to 120fps


  • 2.7K (4:3): Up to 120fps


  • 2.7K (16:9): Up to 120fps


  • 1080p (16:9): Up to 240fps






• SuperNight: Supported in 4K, 2.7K, and 1080p


• Slow Motion:



  • 4K: 4x (120fps)


  • 1080p: 8x (240fps)






• Hyperlapse: Up to 30x


• Timelapse: Intervals from 0.5s to 60 mins, durations up to ∞


• Stabilization:


• RockSteady 3.0, RockSteady 3.0+, HorizonBalancing, HorizonSteady


• Note: EIS not supported in Timelapse and Slow Motion modes.

Storage:

• Built-in Storage: 64 GB (47 GB available for use)


• Expandable via microSD (up to 1 TB)


• Recommended microSD Cards: SanDisk Extreme PRO, Kingston CANVAS Go! Plus, Lexar Professional 1066x

Audio:

• Microphones: 3


• Recording: 48 kHz, 16-bit AAC

Battery:

• Type: Li-ion 1S


• Capacity: 1950 mAh


• Energy: 7.5 Wh


• Voltage: 3.87 V


• Operating Time: Up to 240 mins (1080p/24fps, RockSteady on, Wi-Fi off, screens off)


• Charging Time: Approx. 1.5 hours


• Operating Temperature: -20° to 45° C


• Charging Temperature: 5° to 40° C

Connectivity:

• Wi-Fi:




  • Operating Frequency: 2.4 GHz, 5.1 GHz, 5.8 GHz


  • Protocol: Wi-Fi 6.0 (802.11 a/b/g/n/ac/ax)






• Transmitter Power (EIRP):




  • 2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE)


  • 5.1 GHz: < 23 dBm


  • 5.8 GHz: < 23 dBm (FCC), < 14 dBm (CE)






• Bluetooth:



  • Protocol: BLE 5.1


  • Operating Frequency: 2.4 GHz






• Transmitter Power (EIRP): < 13 dBm

Other Features:

• Power Consumption (Standby/Low Power Mode): 0.5 W


• Low Power Mode Activation: Within 20 minutes (default)

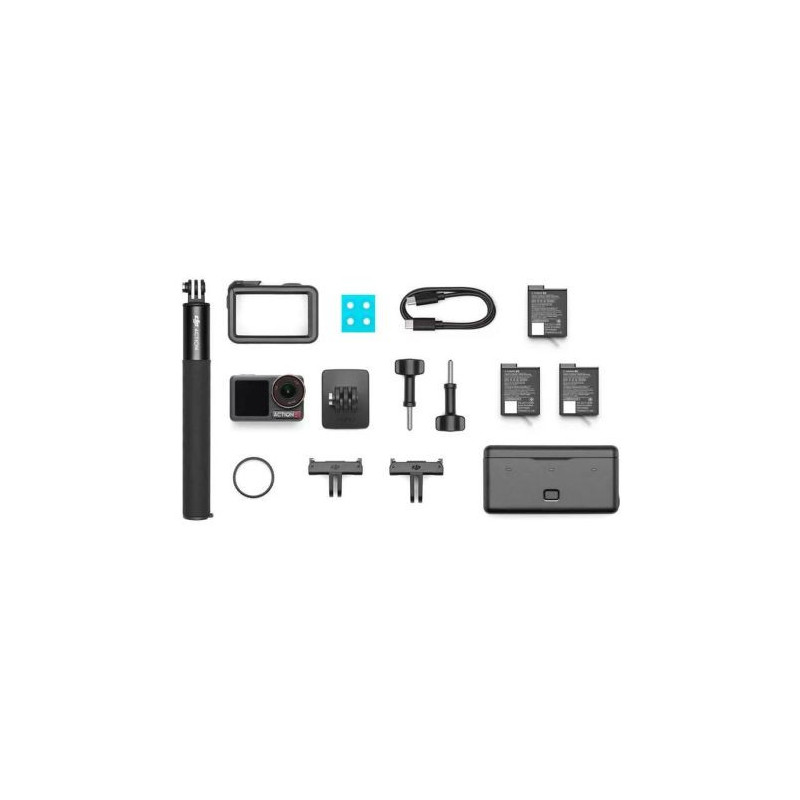

Included Accessories:

• Osmo Action Extreme Battery Plus (1950 mAh) × 3


• Osmo Action Horizontal-Vertical Protective Frame × 1


• Osmo Action Quick-Release Adapter Mount × 1


• Osmo Action Quick-Release Adapter Mount (Mini) × 1


• Osmo Action Curved Adhesive Base × 1


• Osmo Locking Screw × 2


• Type-C to Type-C PD Cable × 1


• Osmo Action Multifunctional Battery Case 2 × 1


• Osmo 1.5m Extension Rod × 1


• Osmo Action 5 Pro Rubber Lens Protector × 1


• Osmo Action 5 Pro Glass Lens Cover × 1


• Osmo Action Anti-Slip Pad × 1
