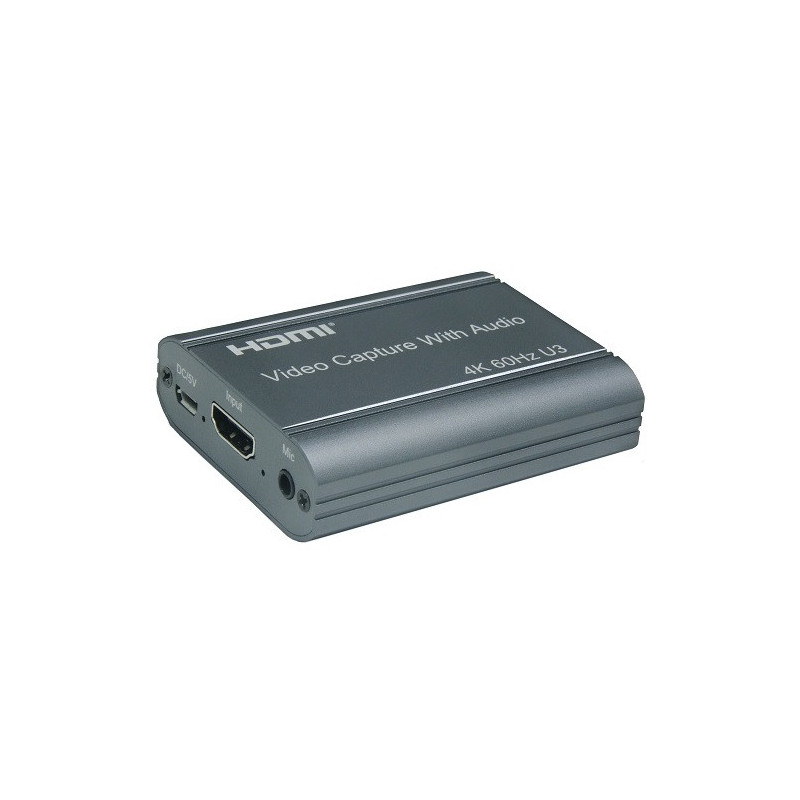

Video capture device HDMI, USB3.0, 4K 60Hz

Video capture device HDMI, USB3.0, 4K@60Hz, with loop-out (HDMI loop-out) and audio output
The HDMI capture device allows you to record high-definition video and audio. It can transmit high-definition signals to a monitor or projector. At the same time, it can support a USB flash drive on a computer. The device can separate high-definition video and audio signals. There is an output for analog left and right channel audio via a 3.5mm stereo jack. The maximum resolution can reach 4K/60Hz.
Features:
Supports maximum resolution up to 4K@60Hz.
Microphone audio input, 3.5 mm stereo audio output are supported.
Microphone and HDMI audio overlay capture is supported.
Supports data transfer rates up to 18Gbps and TMDS bandwidth up to 600 MHz.
Supports standard HDMI AWG26 cable: HDMI input up to 8 meters, HDMI output up to 8 meters (for resolutions 1080P and below).
Supports standard USB 3.0 output cable up to 1.5m.
Supports many recording programs such as VLC, OBS, Amcap, etc.
Supports USB video 1.5 and USB audio 1.0 standards.
Supports uncompressed YUY2 1080P@60Hz (USB3.0) signal reception.
Technical data:
Supported video resolution: 4K@60Hz.
Voltage: 5V DC.
Current: max. 0.7A.
Supported video format: deep color.
Supported audio format: LPCM.
Max bandwidth: 600 MHz.
Max. data transfer rate: 18Gbps.
Input cable length: up to 8m (for 1080p resolution) HDMI AWG26.
Output cable length: up to 8m (1080p resolution) HDMI AWG26, up to 1.5m USB3.0.
Operating temperature: -10°C~+55°C.
Dimensions: 70x56x19 mm.
Weight: 56 g.
Warranty: 12 months.
