Zotac ZT-P10300A-10L graphics card

Zotac ZT-P10300A-10L. Graphics processor family: NVIDIA, Graphics processor: GeForce GT 1030, Processor frequency: 1227 MHz. Discrete graphics card memory: 2 GB, Graphics card memory type: GDDR5, Memory bus: 64 bit, Memory clock speed: 6000 MHz. DirectX version: 12.0, OpenGL version: 4.5. Interface type: PCI Express 3.0. Cooling type: Active, Number of fans: 1 fan(s)
The new ZOTAC GeForce® GT 1030, powered by the award-winning NVIDIA Pascal™ architecture, accelerates your entire PC experience. Its powerful graphics engine and state-of-the-art technologies provide a performance upgrade to drive today's most demanding PC applications.

Processor

CUDA: Yes
CUDA cores: 384
Graphics processor family: NVIDIA
Graphics processor: GeForce GT 1030
Processor frequency: 1227 MHz
Processor boost clock speed: 1468 MHz
Maximum displays per videocard: 3

Memory

Discrete graphics card memory: 2 GB
Graphics card memory type: GDDR5
Memory bus: 64 bit
Memory clock speed: 6000 MHz

Ports interfaces

Interface type: PCI Express 3.0

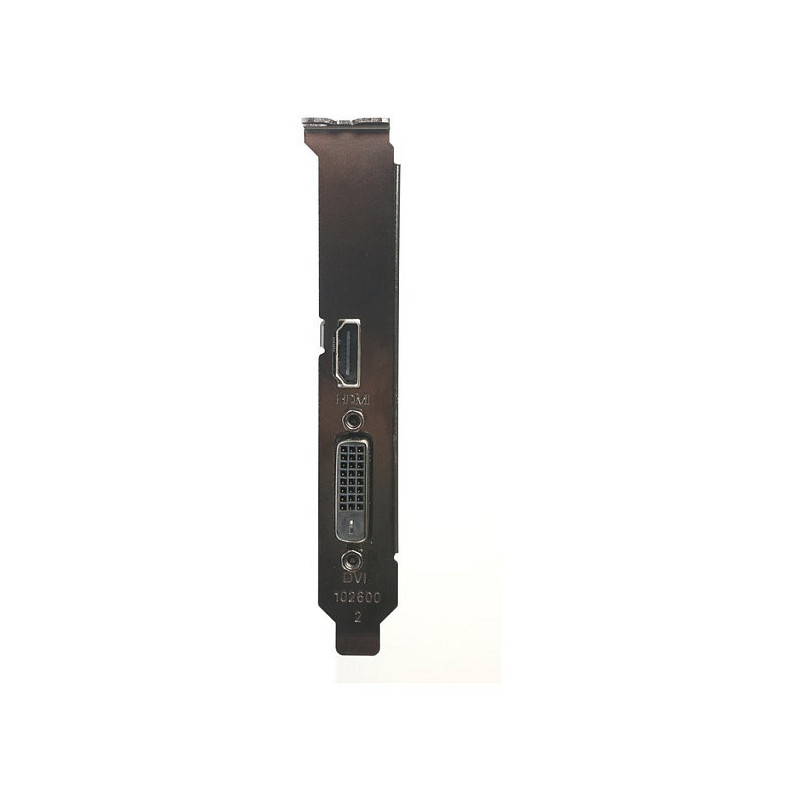

HDMI ports quantity: 1
HDMI version: 2.0b
DVI-D ports quantity: 1

Performance

PhysX: Yes
TV tuner integrated: No
DirectX version: 12.0
OpenGL version: 4.5
HDCP: Yes
Dual Link DVI: No
Full HD: Yes

Design

Cooling type: Active
Number of fans: 1 fan(s)
Form factor: Half-Height/Half-Length (HH/HL)
Number of slots: 1
Product colour: Black

Power

Minimum system power supply: 300 W
Power consumption (typical): 30 W

System requirements

Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64

Weight dimensions

Length: 172.5 mm
Depth: 16 mm
Height: 111.2 mm
