Zotac GAMING GeForce RTX 5050 Twin Edge OC

Zotac GAMING GeForce RTX 5050 Twin Edge OC. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5050. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 5.0. Cooling type: Active, Number of fans: 2 fan(s)

The ZOTAC GAMING GeForce RTX 5050 Twin Edge OC White Edition is a compact graphics card powered by NVIDIA's cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR6 memory. With a factory OC, the Twin Edge OC White Edition is ready to take on games with smooth framerates and performance.

WIDE CASE COMPATIBILITY
The compact design of the ZOTAC GAMING GeForce RTX 5050 Series of GPUs are SFF-ready, making it easier for gamers looking to upgrade. With a slim 2-slot width and as compact as 164.5mm (6.5 inches) in length, most PC cases available can easily accommodate with a simple drop-in installation.

STANDARD 8-PIN POWER
A single 8-pin PCIe power connector is all that's needed to power this GPU. A lower 550W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5050 Series a more appealing upgrade choice.

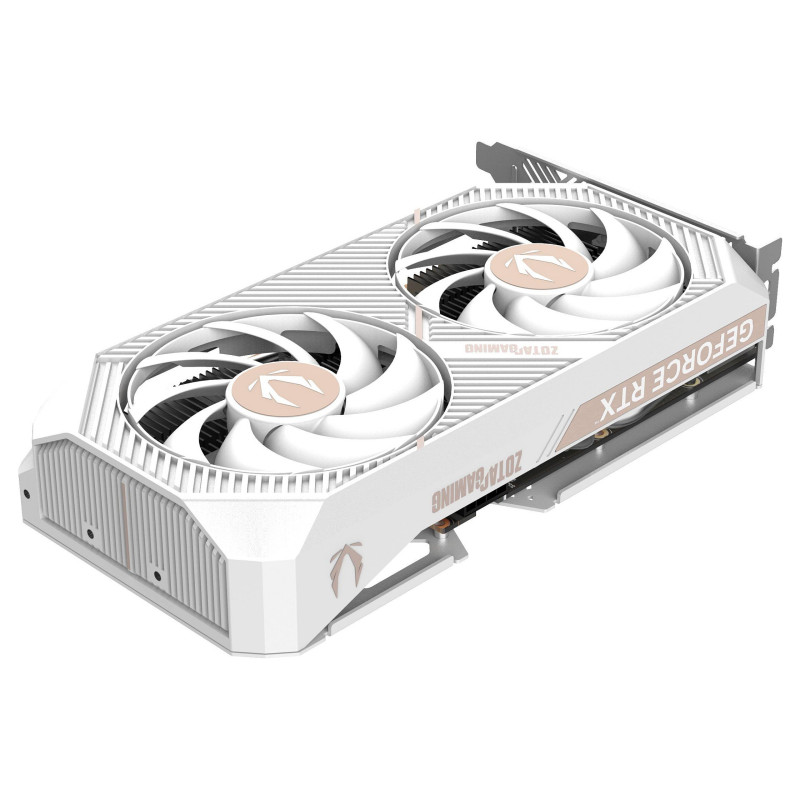

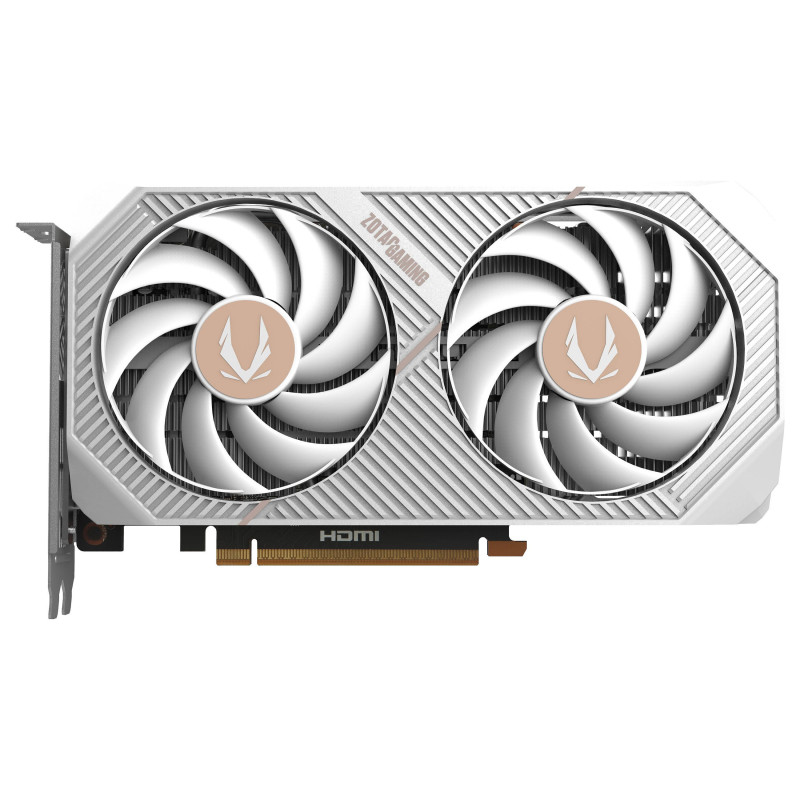

BLADELINK FANS
- Optimized airflow intake
- Reinforced structure rigidity

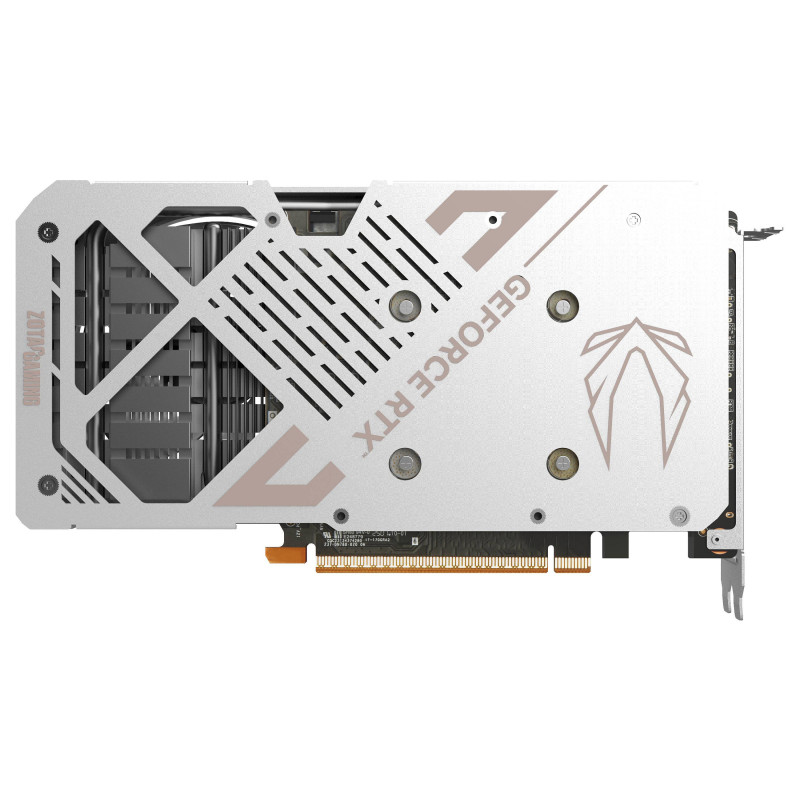

METAL BACKPLATE
The ZOTAC GAMING GeForce RTX 5050 Series rigidity is achieved with a metal backplate, giving it a strong foundation in durability.

A REFRESHED LOOK
The ZOTAC GAMING FireStorm Utility has a new fresh coat of paint for the 50 series, matching the elegance of our new design. FireStorm comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, and SPECTRA RGB lighting effects.

Processor

Feature: CUDA
CUDA cores: 2560
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5050
Processor boost clock speed: 2602 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 4

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 20 Gbit/s

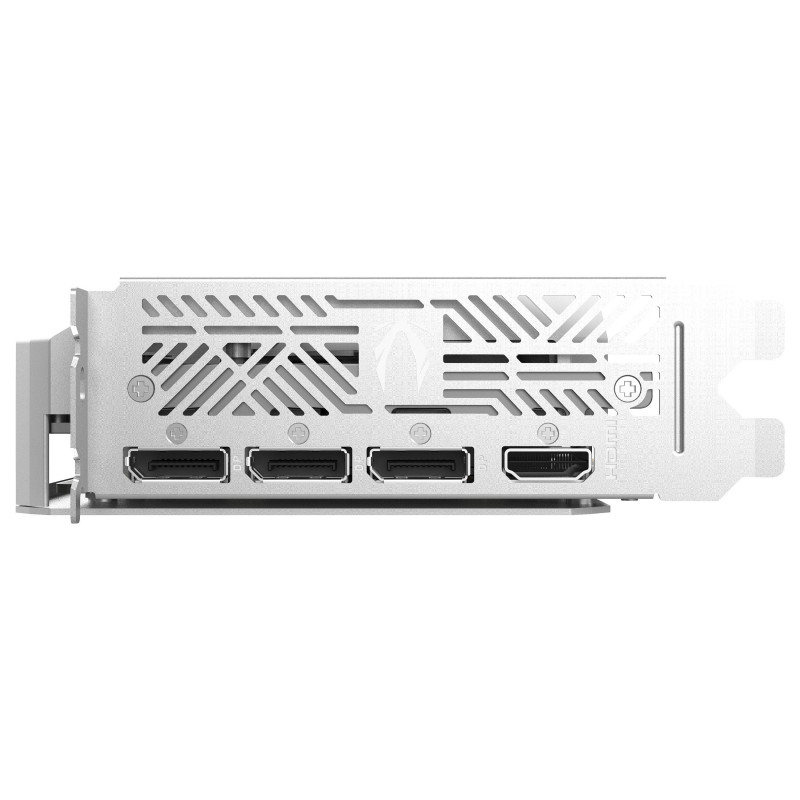

Ports & interfaces

Interface type: PCI Express x8 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 3
DisplayPort version: 2.1b

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: HDCP
HDCP version: 2.3
Feature: NVIDIA G-SYNC
NPU performance up to: 421 TOPs
Feature: Overclocked (OC) edition

Design

Cooling type: Active
Number of fans: 2 fan(s)
Fan diameter: 9 cm
Form factor: Full-Height/Half-Length (FH/HL)
Number of slots: 2
Feature: SFF ready
Product colour: White

Power

Minimum system power supply: 550 W
Supplementary power connectors: 1x 8-pin
Power consumption (max): 130 W

System requirements

Windows operating systems supported: Windows 10 x64, Windows 11

Weight & dimensions

Length: 220.5 mm
Depth: 41.6 mm
Height: 120.2 mm

Packaging data

Package width: 215 mm
Package depth: 80 mm
Package height: 280 mm
Package type: Box

Packaging content

Feature: Manual
