Zotac GAMING GeForce RTX 5050 Low Profile

Zotac GAMING GeForce RTX 5050 Low Profile. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5050. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 5.0. Cooling type: Active, Number of fans: 3 fan(s)

Made for ITX and Small Form Factor enthusiasts, this card is densely packed with performance, and is powered by the NVIDIA Blackwell architecture, DLSS4 and Multi-frame Generation so even the smallest PC builds have the power to play top games with smooth framerates.

REDEFINING GAMING AND STYLE
Reimagine gaming and style with the ZOTAC GAMING GeForce RTX 5050 Series based on the Blackwell Architecture. With Dedicated Next-Generation Ray Tracing Cores, Tensor Cores and high-speed GDDR6 Memory, the ZOTAC GAMING GeForce RTX 5050 is ready to power your gaming journey every step of the way.

WIDE CASE COMPATIBILITY
The compact design of the ZOTAC GAMING GeForce RTX 5050 Series of GPUs are SFF-ready, making it easier for gamers looking to upgrade. With a slim 2-slot width and as compact as 164.5mm (6.5 inches) in length, most PC cases available can easily accommodate with a simple drop-in installation.

STANDARD 8-PIN POWER
A single 8-pin PCIe power connector is all that's needed to power this GPU. A lower 550W minimum recommended power supply (PSU) means that there are potentially less components needed for an upgrade, making the 5050 Series a more appealing upgrade choice.

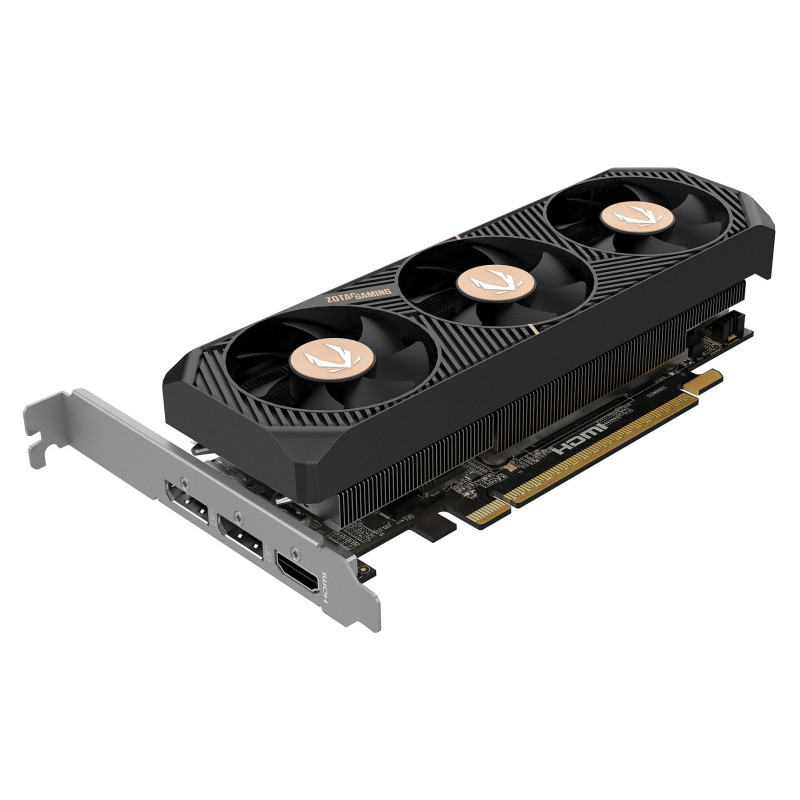

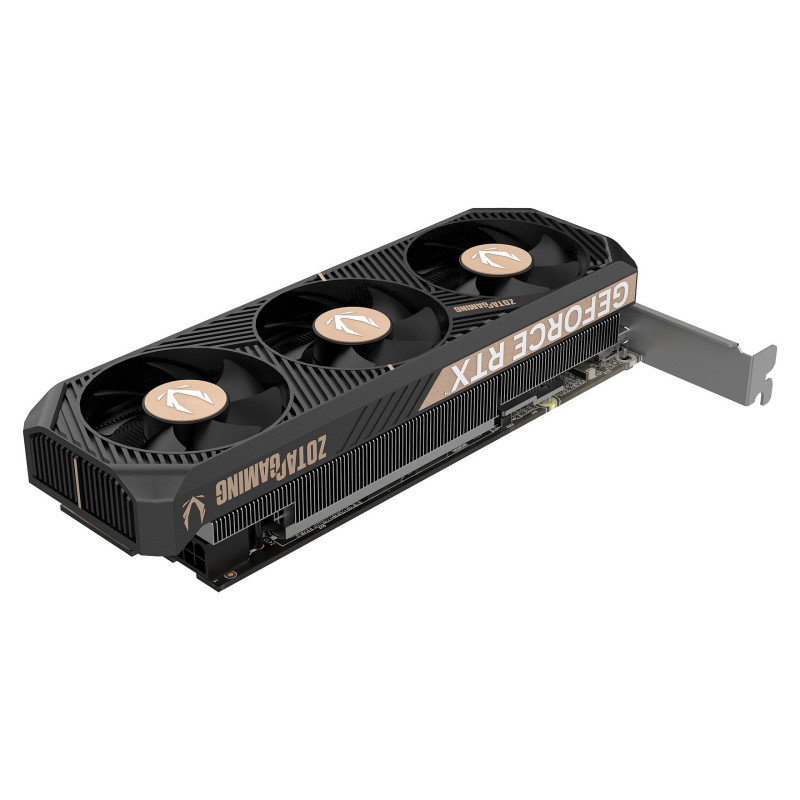

BLADELINK FANS
- Optimized airflow intake
- Reinforced structure rigidity

METAL BACKPLATE

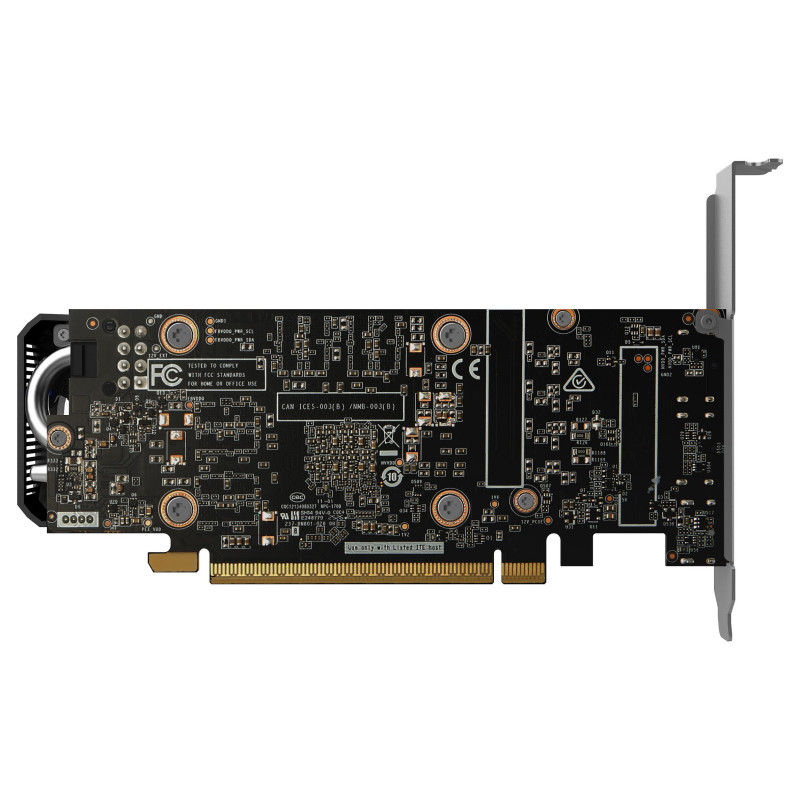

The ZOTAC GAMING GeForce RTX 5050 Series rigidity is achieved with a metal backplate, giving it a strong foundation in durability.

A REFRESHED LOOK
The ZOTAC GAMING FireStorm Utility has a new fresh coat of paint for the 50 series, matching the elegance of our new design. FireStorm comes with a host of tuning and monitoring options that include clock speeds, GPU memory frequencies, voltage, fan speed, fan curve settings, and SPECTRA RGB lighting effects.

Processor

Feature: CUDA
CUDA cores: 2560
Graphics processor family: NVIDIA
Graphics processor: GeForce RTX 5050
Processor boost clock speed: 2572 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Maximum displays per videocard: 3

Memory

Discrete graphics card memory: 8 GB
Graphics card memory type: GDDR6
Memory bus: 128 bit
Data transfer rate: 20 Gbit/s

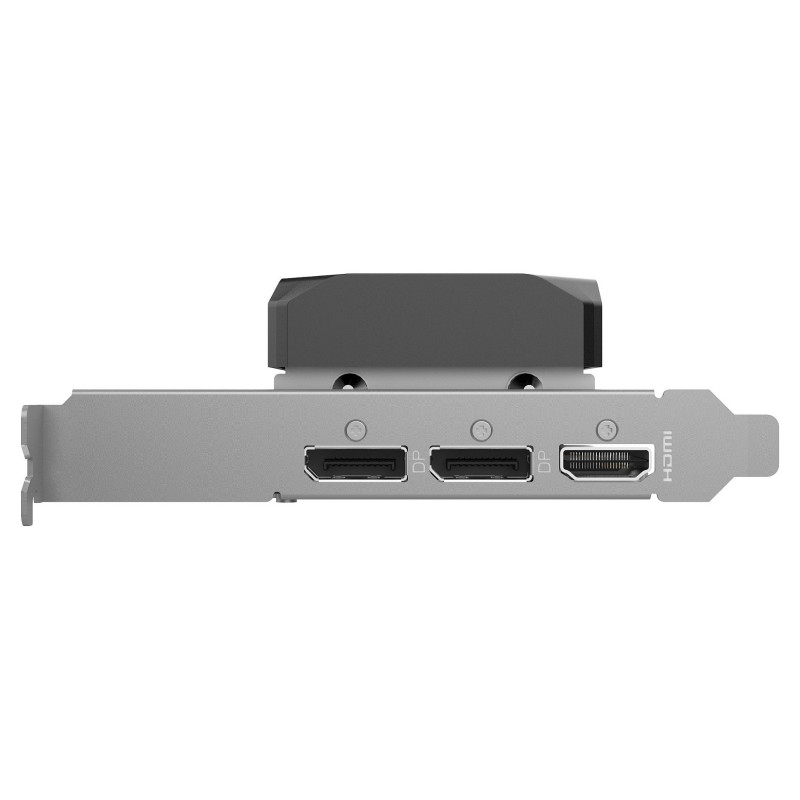

Ports & interfaces

Interface type: PCI Express x8 5.0
HDMI ports quantity: 1
HDMI version: 2.1b
DisplayPorts quantity: 2
DisplayPort version: 2.1b

Performance

DirectX version: 12 Ultimate
OpenGL version: 4.6
Feature: HDCP
HDCP version: 2.3
Feature: NVIDIA G-SYNC
NPU performance up to: 421 TOPs

Design

Cooling type: Active
Number of fans: 3 fan(s)
Fan diameter: 4 cm
Bracket height: Low-Profile (LP)
Number of slots: 2
Feature: SFF ready
Product colour: Black

Power

Minimum system power supply: 550 W
Supplementary power connectors: 1x 8-pin
Power consumption (max): 130 W

System requirements

Windows operating systems supported: Windows 11

Weight & dimensions

Length: 182.5 mm
Depth: 38.2 mm
Height: 69 mm

Packaging data

Package width: 215 mm
Package depth: 55 mm
Package height: 280 mm
Package type: Box

Packaging content

Feature: Manual
