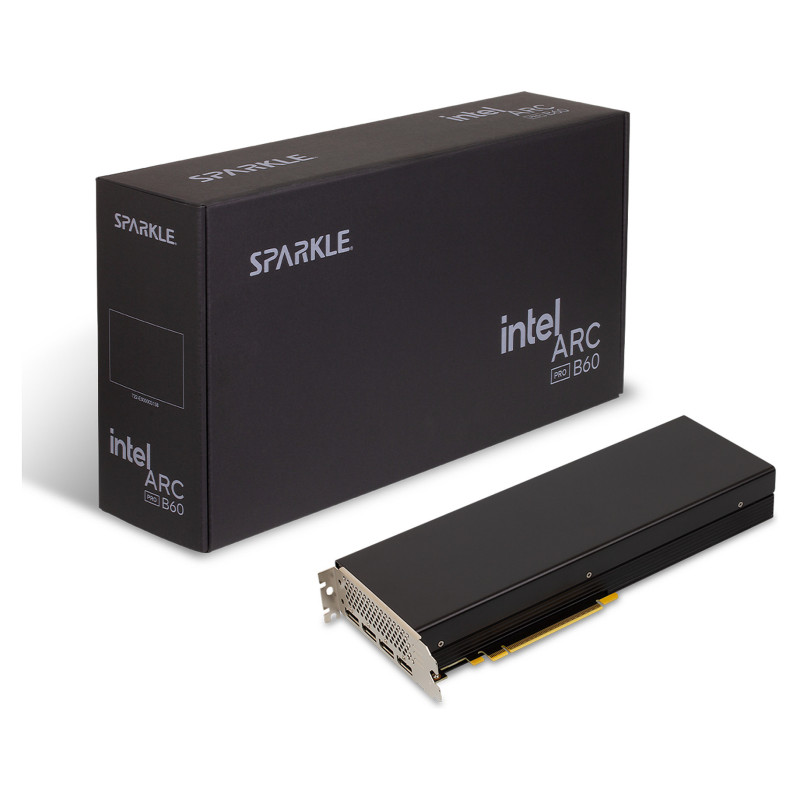

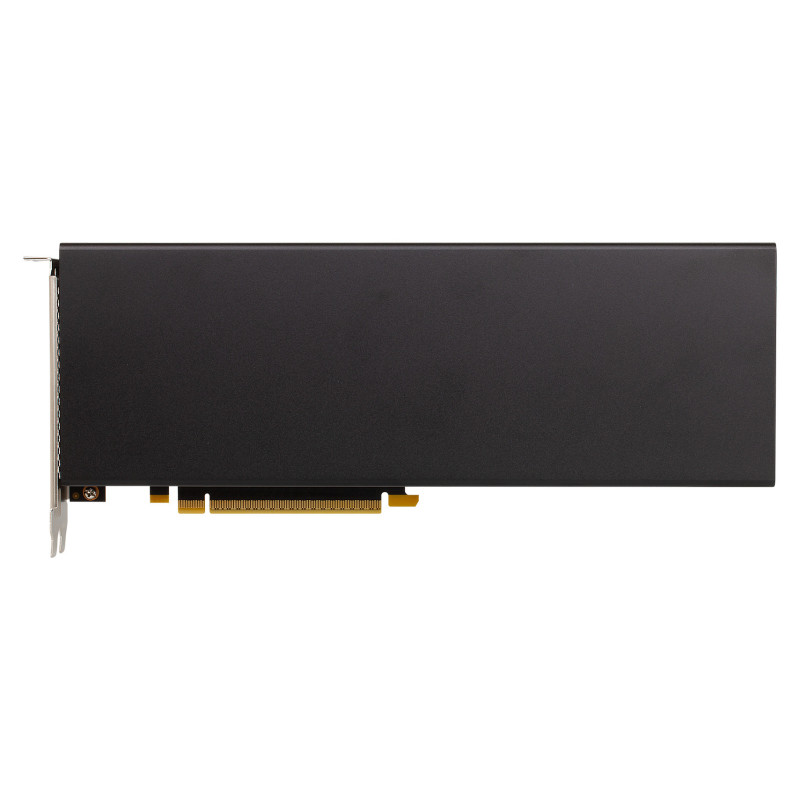

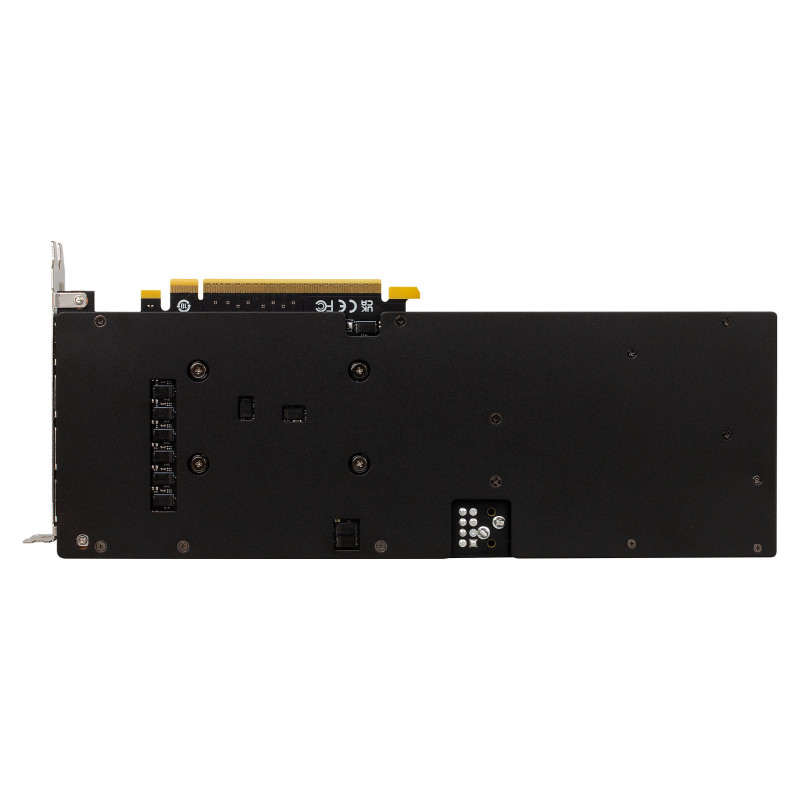

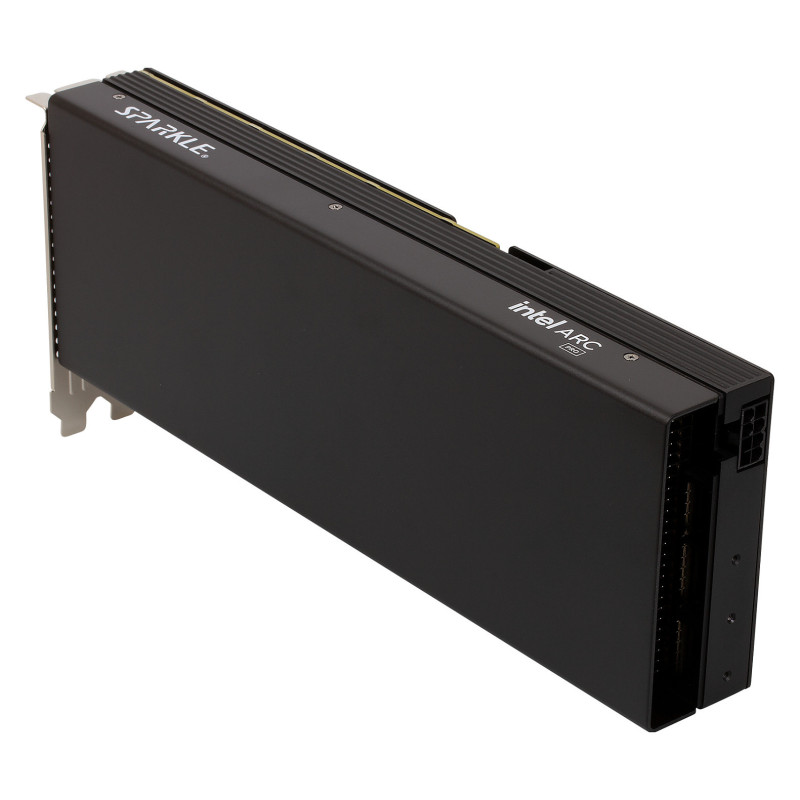

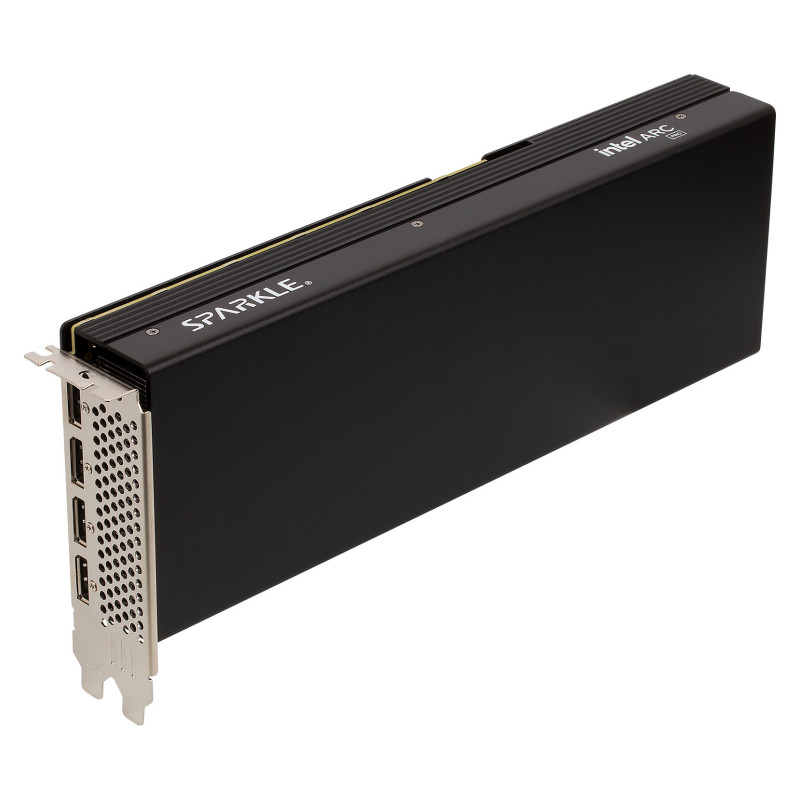

Sparkle Technology Intel Arc Pro B60 24GB Passive

Sparkle Technology Intel Arc Pro B60 24GB Passive. Graphics processor family: Intel, Graphics processor: Arc Pro B60. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express x8 5.0. Cooling type: Passive

Processor

Graphics processor family: Intel
Graphics processor: Arc Pro B60
Processor boost clock speed: 2400 MHz
Maximum resolution: 7680 x 4320 pixels
Parallel processing technology support: Not supported
Ray accelerators: 20
AI accelerators: 160

Memory

Discrete graphics card memory: 24 GB
Graphics card memory type: GDDR6
Memory bus: 192 bit
Memory bandwidth (max): 456 GB/s

Ports & interfaces

Interface type: PCI Express x8 5.0

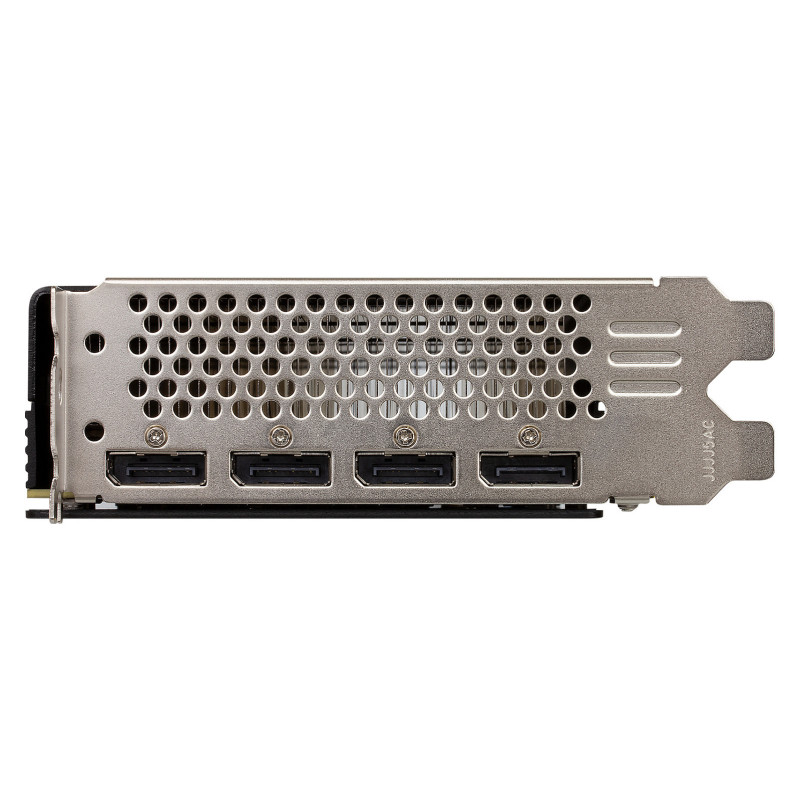

DisplayPorts quantity: 4
DisplayPort version: 2.1

Performance

Peak INT8 Performance: 197 TOPs
OpenGL version: 4.6
OpenCL version: 3.0
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 160
Xe-cores: 20

Design

Cooling type: Passive
Number of slots: 2
Product colour: Black

Power

Minimum system power supply: 600 W
Power consumption (max): 200 W

Weight & dimensions

Weight: 1.05 kg
Length: 289 mm
Depth: 42 mm
Height: 120 mm

Packaging data

Package type: Box

Packaging content

Feature: Quick installation guide
